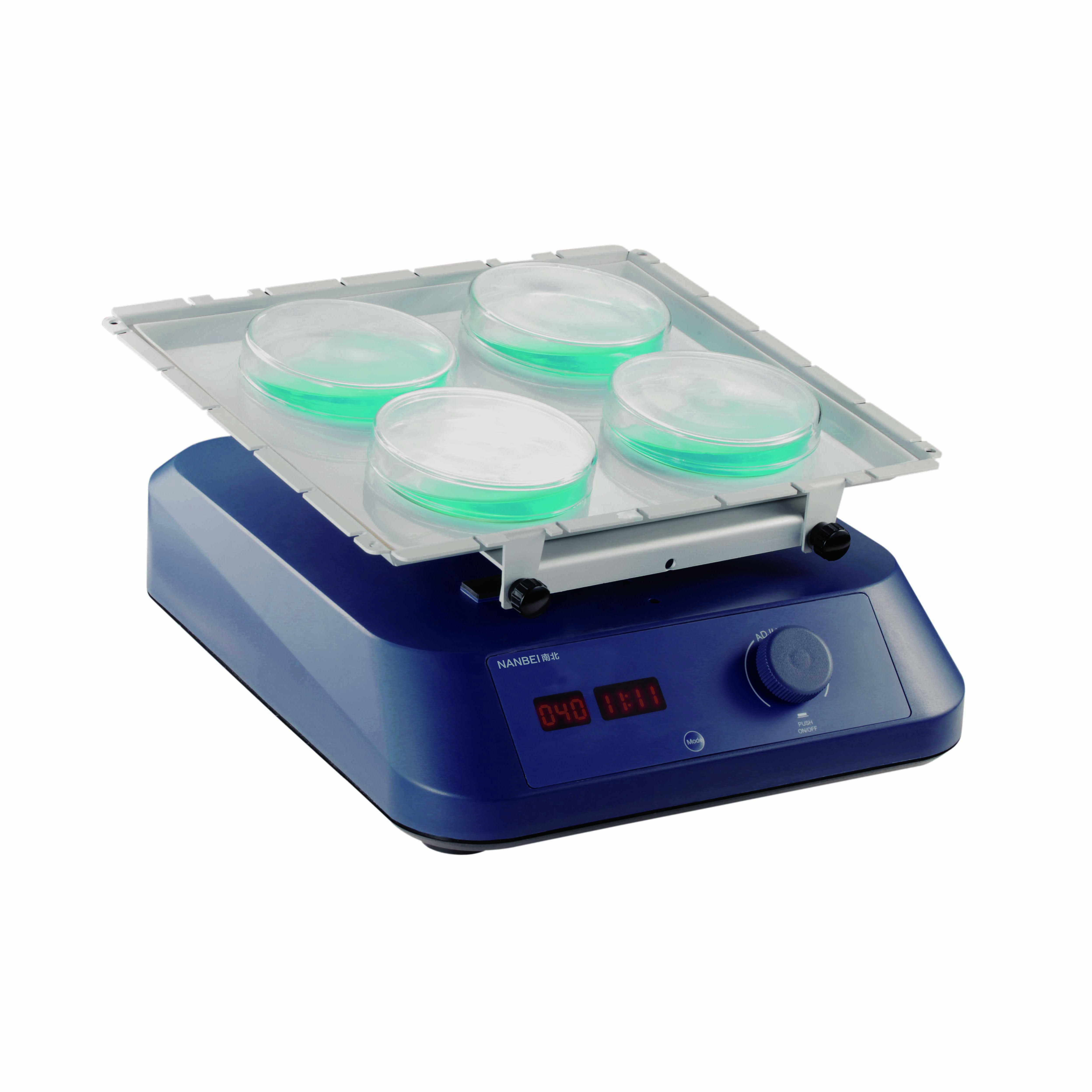

3D Shaker
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NB-D1807-S
Application:
Key Features
• Three-dimensional rocking motion with the angle of 7°
• Max. load capacity is 3kg with platform
• Speed range of 10-80rpm
• Double LEDs for independent display of time and speed
• Various of platform accessories
Specification
| Specifications | NB-D1807-S |
| Tilt angle | 7° |
| Max. load capacity (with platform) | 3kg |
| Motor type | DC motor |
| Motor input power | 16W |
| Motor output power | 10W |
| Speed range | 10-80rpm |
| Speed display | LED |
| Timer display | LED |
| Time settings range | 1min-19h59min |
| Voltage | 100-240V, 50/60Hz |
| Power | 20W |
| Weight | 2.7kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
| Dimension[W×D×H] | 270×330×130mm |
| Protection class | IP21 |
Order Info.
| Cat. No. | P/N | Descriptions | |
| 8032412000 | NB-D1807-S | LED digital 3D Shaker (including of a platform,18900185 ), angle7°(package contain in the box) | USA plug,100V-220V/50Hz/60Hz |
| Cn plug,100V-220V/50Hz/60Hz | |||
| Euro plug,100V-220V/50Hz/60Hz | |||
| UK plug,100V-220V/50Hz/60Hz |
| Accessories | |||
| Cat. No. | P/N | Descriptions | |
| 18900025 | 180.1 | 180.1 Universal attachment with 3 bars | |
| 18900026 | 180.2 | 180.2 Fixing clip attachment | |
| 18900038 | 180.3 | 180.3 Lengthways roller attachment | |
| 18900185 | 180.4 | 180.4 Dish Attachment with non-slip mat | |
| 18900200 | 180.5 | 180.5 Dish Attachment with non-slip mat 200*300mm | |
| 18900326 | 180.6 | 180.6 Dish Attachment with non-slip mat 280*280mm | |
| 18900037 | Bar for 180.1 Universal attachment，black | ||
| 18900029 | 180.2.1 | Fixing clip for flask volume 25 ml | |
| 18900030 | 180.2.2 | Fixing clip for flask volume 50 ml | |
| 18900031 | 180.2.3 | Fixing clip for flask volume 100 ml | |
| 18900032 | 180.2.4 | Fixing clip for flask volume 200/250 ml | |
| 18900033 | 180.2.5 | Fixing clip for flask volume 500 ml | |
| 18900280 | Connect sticks for double dishes shaker 1/pK | ||
