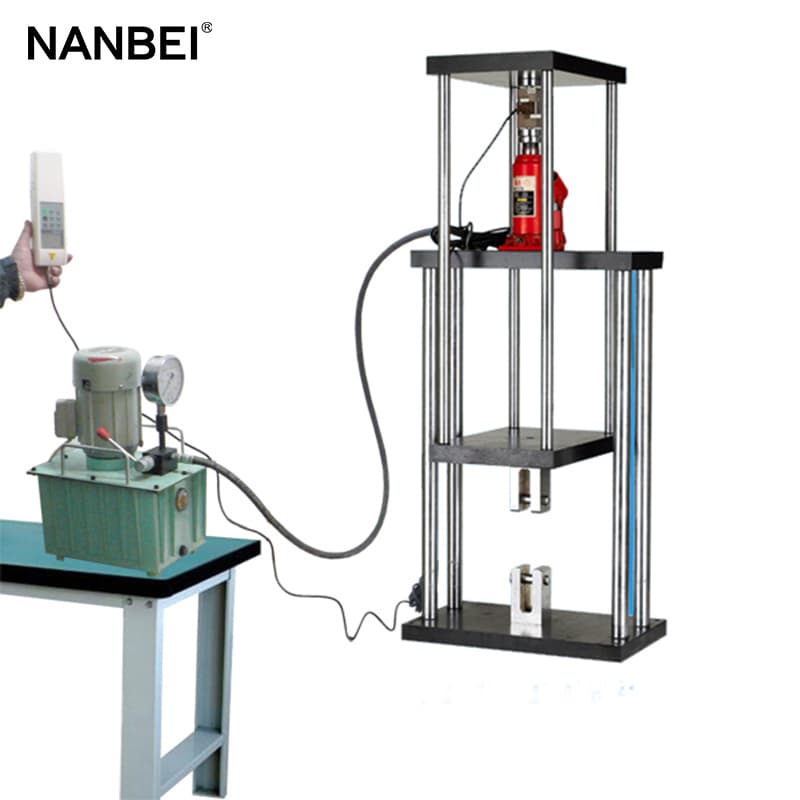

ALR Hydraulic Manual Test Stand
Function
ALR Hydraulic Manual Test Stand is designed for HF series push pull force gauge operation, manual operation.
Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with
different fixtures in various combinations of different purposes compressive load test.
Specification
Max. load | 5k | 5T | 10T | 20T | 50T |
Compress chamber | 150mm | 240mm | 280mm | 245mm | 290mm |
Stretching chamber | 185mm | 120mm | 130mm | 165mm | 150mm |
Effective stroke | 90mm | 125mm | 125mm | 145mm | 160mm |
Dimensions | 190×140×880mm | 225×180×1000mm | 300×300×1185mm | 300×300×1220mm | 350×350×1410mm |
Net weight | 30kg | 41.6kg | 90.3kg | 98kg | 194kg |
Attention
1:The test rack can be ordered according to user's request of specifications.
2:Order force gauge in pictures as a separate item.
3:When installation, please install sensor, the machine, jack in intermediate position.
When using, the direction of push pull loaded force should in the middle of the machine
