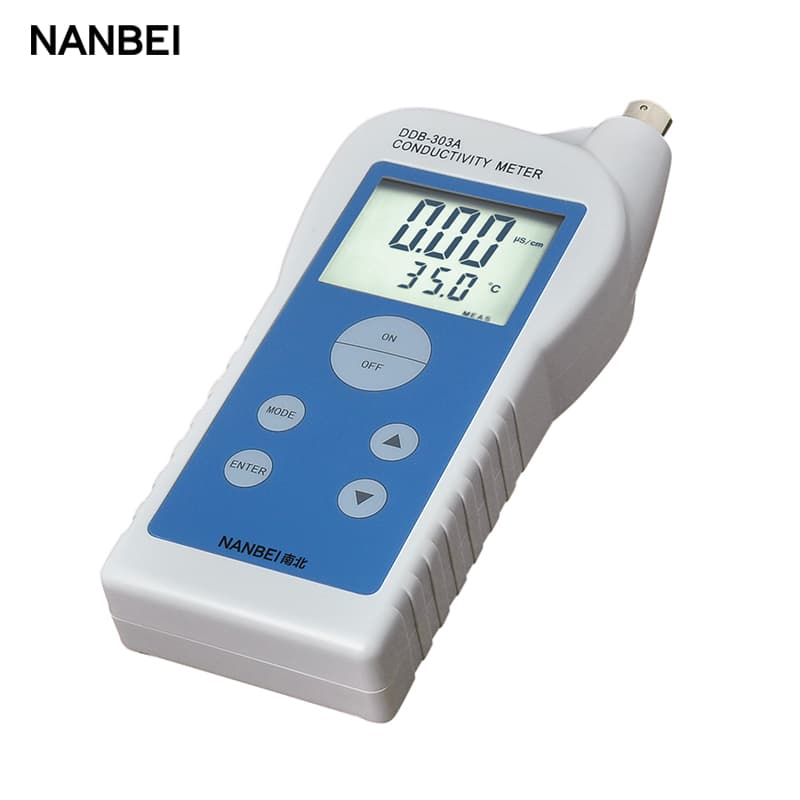

DDB-303A Portable Conductivity Meters

DDB-303A Portable Conductivity Meters

Functions:

1.LCD digital display ( blue backlight can be selected)

2.Four shifts of measuring ranges can be chosen and switched.

3.It has manual temperature compensation function.

4.Automatic switch of measuring range and frequency for better accuray

5.If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water.

6.It is portable and the life of batteries exceeds 100h (continual use)

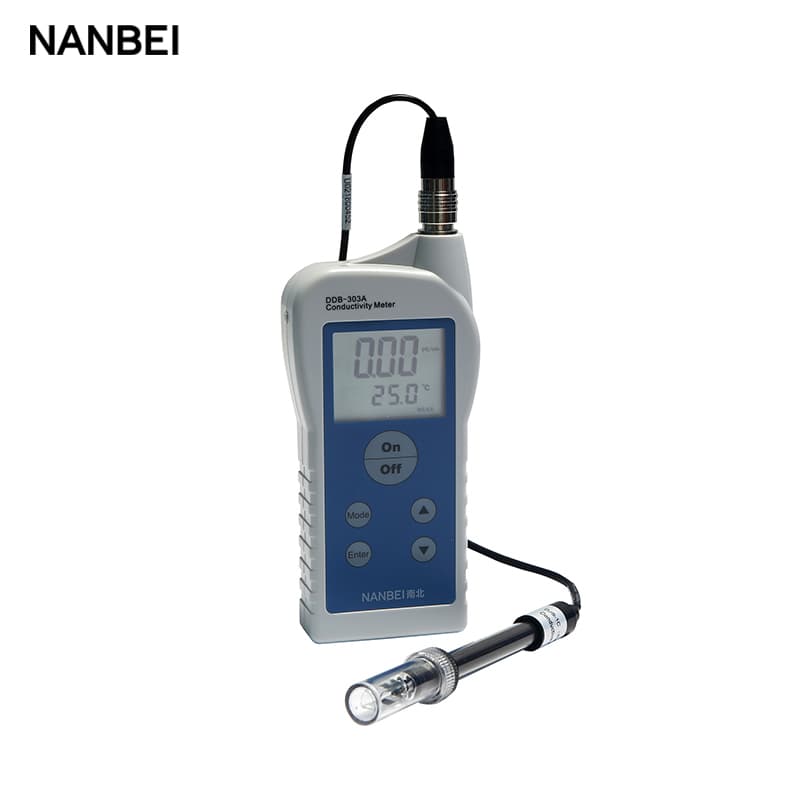

7.It is equipped with DJS-1C conductance sensor(platinum black).

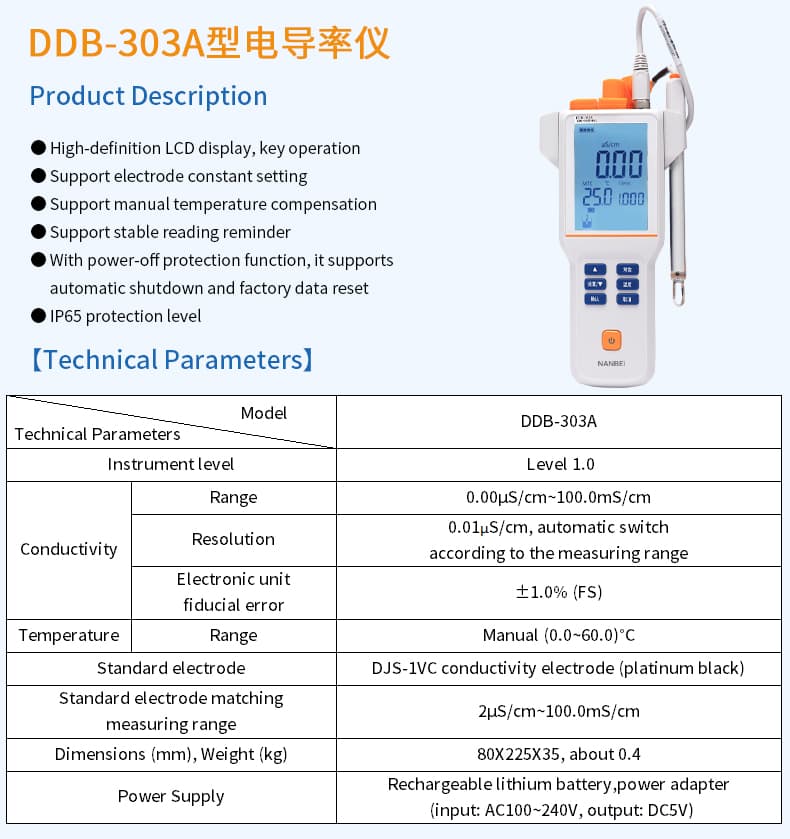

Specifications:

1.Measuring range

Conductivity: 0.00μS/cm～100 mS/cm, four kinds of measuring range can be switched

2.Accuracy:

Conductivity: ±1.0%(FS)

3.Stability:（±0.7% FS）/3h

4.Temperature compensation range: Manual(15.0～35.0)°C

5.Power supply: two alkaline batteries of model 5

6.Dimension(mm)：170×70×30

7.Net Weight: 0.3kg

8.Case outside serial No: WXS-A004-1

Package Size: 260X260X200mm

Gross Weight: 1.5kg

Electrode Constant and corresponding Conductivity measuring range
