Conductivity Meter
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

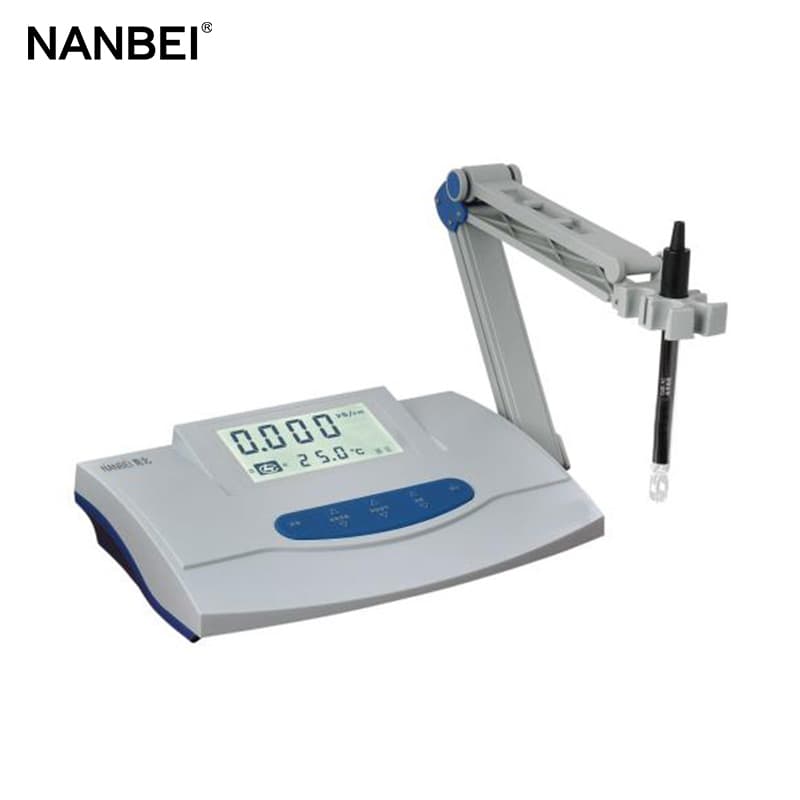

DDS-307 Conductivity Meters
Functions:
1.3 1/2 LED digital display
2.It has the function of manual temperature compensation.
3.It shows 0～10mV DC output signal.
4.If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water.
5.It is equipped with DJS-1C conductancesensor ( platinum black).
Specifications:
1.Measuring range:
Conductivity: 0.00μS/cm～100mS/cm
2.Accuracy:
Conductivity: ±0.5%FS
3.Stability:（±0.33%FS±1 digital）/3h
4.Temperature compensation range: Manual(15.0～35.0)°C
5.Temperature compensation coefficient: 2%
6.Power supply: AC(220±22)V；(50±l)Hz
7.Dimension（mm）：290×210×95
8.Net Weight: 1.5kg
9.Case outside serial No: WXS-A000-1
Package Size: 610X290X640mm
Gross Weight: 2.5kg
Conductance Constant and corresponding Conductivity measuring range
Electrodeconstant (K) (cm-1) | 0.01 | 0.1 | 1 | 10 |
Measuring range (μS/cm) | 0.0～2.0 | 0.2～20.0 | 2～1×104 | 1×104～1×105 |
