Bench Type Conductivity Meter
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

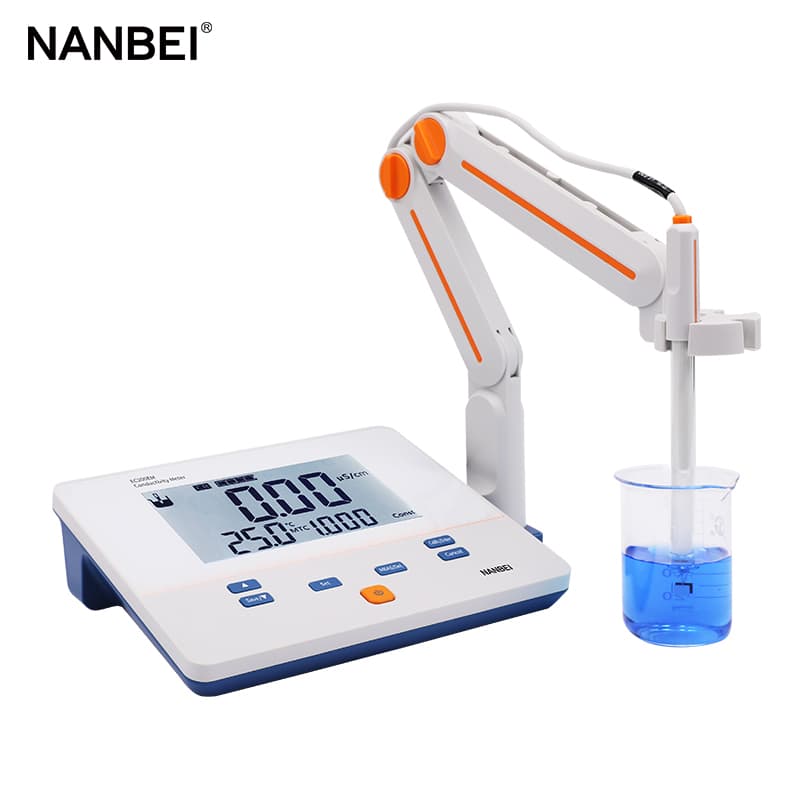

GENERAL FEATURES for EC200EM Benchtop Conductivity Meter
High resolution LCD display screen, 6.0 inches.
Multi-reading feature allows auto-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 50 sets for each parameter.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1 point calibration with Standard Recognition.
Cell constant is settable.
PRODUCT SPECIFICATIONS
Model | EC200EM | |
Parameters | EC(TDS) | |
Conductivity | Range | 0.00 μS/cm to 200 mS/cm |
Resolution | 0.01 μS/cm minimum, various with range selection | |
Accuracy | ±1.0% FS | |
Reference Temperature | 25 ºC | |
Calibration Points | Up to 1 | |
Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
TDS | Range | 0.00mg/L~100g/L |
Resolution | 0.01mg/L minimum, various with range selection | |
Accuracy | ±1.0% FS | |
Measurement | Reading Mode | Auto-Read, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | MTC | |
Data management | Data Storage | 50 results each |
Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
Display options | Backlight | Yes |
Auto Shutdown | 300, 600, 1200, 1800, 3600sec., off | |
IP Rating | IP54 | |
General | Power | AC Adapter, 100-240V AC input, DC9V output |
Dimensions | 242 x 195 x 68 mm | |
Weight | 900g (1.98 lb) | |
