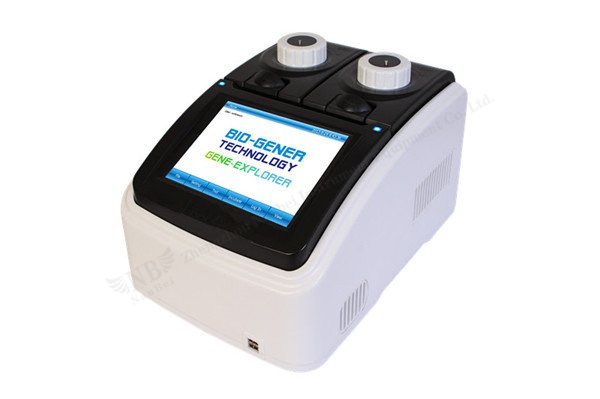

Double Block Gene-explorer Touch Screen Thermal Cycler
Double Block Gene-explorer Touch Screen Thermal Cycler

Double Block Gene-explorer Touch Screen Thermal Cycler

Brand:NANBEI

Model:GE4851

Application:Application of industry include the pharmaceutical ,chemical,Aquaculture,environment,quality inspection.

product details

Introduction:

This series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5℃, cycle times >600000. More advanced technologies applied on the product: Windows operating system; color touch-screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.



pcr machine

Main Features:

1). Each thermal block has 4 independent temperature control sensors and 8 peltier heating units to ensure accurate and uniform temperature across block surface, and provide users with replicating previous condition set-up.

2). 8” TFT color touch-screen with graphical display provides easy use for setting up and monitoring.

3). The actual and target temperatures can be viewed and displayed graphically in real time.

4). Built-in 11 standard program file template, can quickly edit the required files.

5). Internal flash memory for 10000 typical PCR files in free configurable folders.

6). Automatic restart after power failure.

7). Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.

8). Applicable with the following 0.2ml tube models: non-skirted, semi and fully skirted plated.

9). Replaceable module, the choice of a dual-block module can simultaneously run two different PCR programs.

Technical parameters:

Model
General
GE9611(A)GE6021(B)GE4831(C)
GE3841(D)GE4851(E)
Gradient
GE9612(A) GE6022(B)
GE4832(C)GE3842(D)GE4852(E)
Capacity
96×0.2ml (A), 60×0.5ml (B),
48×0.2ml+30×0.5ml(C),384well ,(D)Double 48×0.2ml (E)

Temperature Range
0~100℃
Max. Heating Rate
5℃/s
Max. Cooling Rate
4℃/s
Uniformity
≤±0.2℃
Accuracy
≤±0.1℃
Display Resolution
0.1℃
Temperature Control
Block\Tube
Ramping Rate Adjustable
0.1~5℃
Gradient Uniformity
/
≤±0.2℃
Gradient Accuracy
/
≤±0.2℃
Gradient Temp. Range
/
30~100℃
Gradient Spread
/
1~30℃
Hot Lid Temperature
30~110℃
Hot Lid Height Adjustable
Stepless Adjustable
Number of Programs
10000 +(USB FLASH)
Max. No. of Step
30
Max. No. of Cycle
100
Time Increment/Decrement
1 Sec ~ 9 Min 59 Sec
Temp. Increment/Decrement
0.1~9.9℃
Pause Function
Yes
Auto Data Protection
Yes
Hold at 4℃
Forever
Print
Yes
LAN to computer
Yes
LCD
8inch,800×600 Pixels, TFT
Communication
2USB2.0 , LAN
Dimensions
390mm×270mm×255mm (L×W×H)
Weight
9kg
Power Supply
85~264VAC , 47~63Hz , 600 W
