Force Gauge
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:HF1000K-3000K
Application:Widely applied in electrical, hardwire, automobile parts, lighter and ignition system,mechanical, textile, etc.

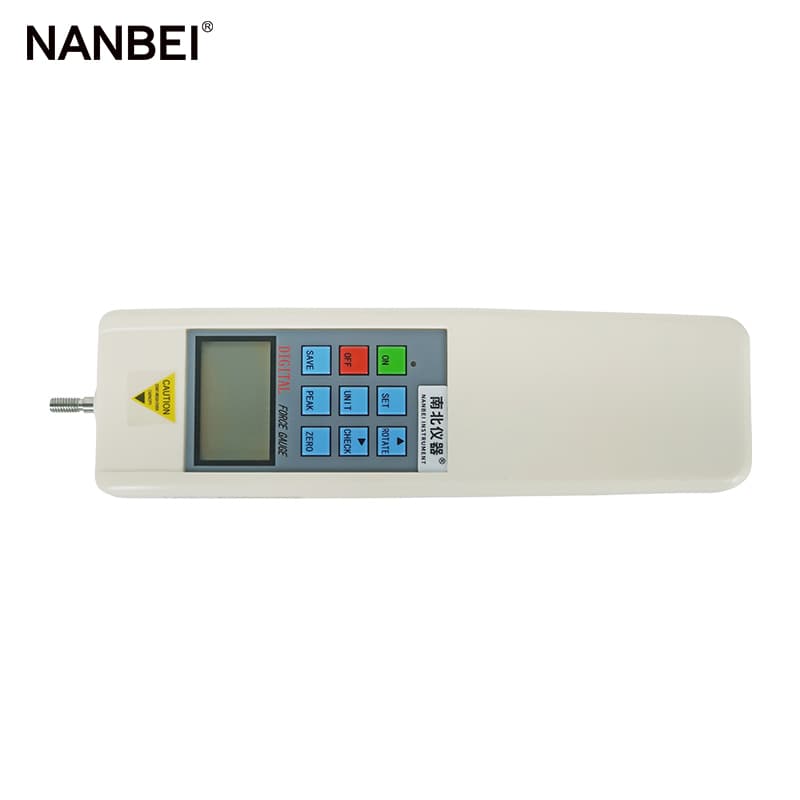

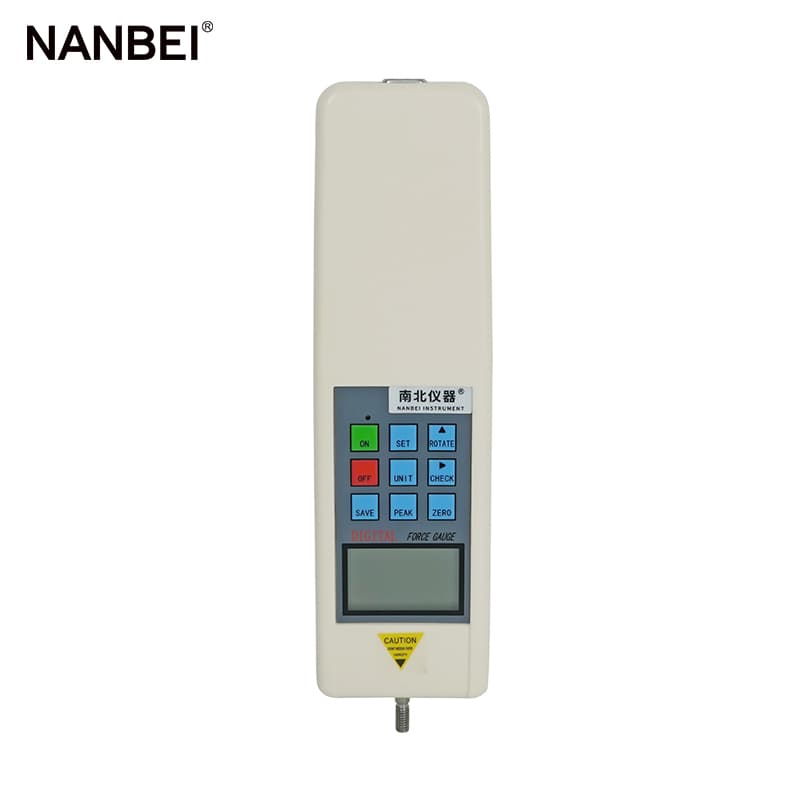

HF Digital Force Gauge (HF1000K-3000K)
Product Description
The HF series are digital force gauge with compact size, high accuracy,
They are easy to operate and handy to carry out.
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts,
lighter and ignition system, light industry, mechanical, textile,
and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
This digital force gauge is new generation pulls the pressure measuring instrument.

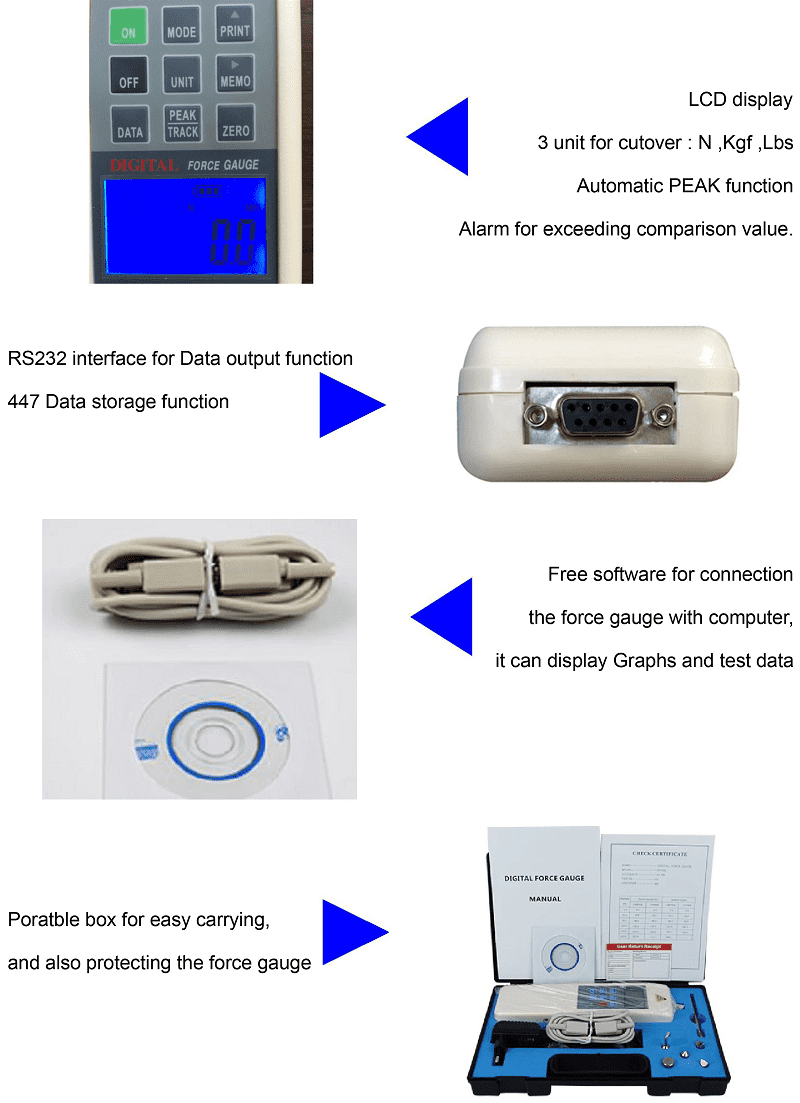

Character:
1.Connect the computer in-phase test.
2.The compare value set by user’s request.
3.Big memory deposit function.
4.LCD overturns show.
5.Auto peak.
6.Auto close time set.
Model specification sheet of force gauge with inner sensor:
Model
specification |
HF-2 |
HF-5 |
HF-10 |
HF-20 |
HF-50 |
HF-100 |
HF-200 |
HF-500 |
HF-1000 | |
Peak load
value |
N |
2 |
5 |
10 |
20 |
50 |
100 |
200 |
500 |
1000 |
kg |
2 |
0.5 |
1 |
2 |
5 |
10 |
20 |
50 |
100 | |
lbs |
0.44 |
1.1 |
2.2 |
4.4 |
11 |
22 |
44 |
110 |
220 | |
load division
value |
N |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.1 |
0.1 |
0.1 |
1 |
kg |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.1 | |
lbs |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.1 | |
Indication
error |
0.50% | |||||||||
Unit |
N / kg / lb | |||||||||
Data
interface |
Rs232 nine-hole socket | |||||||||
Power |
rechargeable batteries, charger(charging voltage 100V-240V) | |||||||||
Sensor
structure |
S-tye sensor with high precision (inner sensor) | |||||||||
Ambient
temp. |
5° C~35° C | |||||||||
Transport
temp. |
-10 C~60° C | |||||||||
Relative humidity |
15%~80%RH | |||||||||
Working conditions |
No hypocenter and corrosive medium | |||||||||
Gross weight |
~2000g | |||||||||
Size |
273 x 182 x70 mm | |||||||||

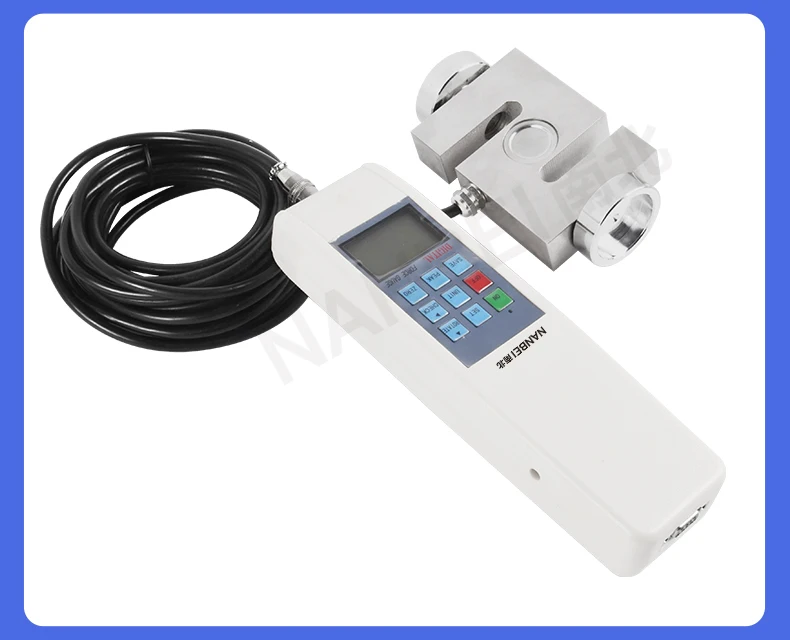

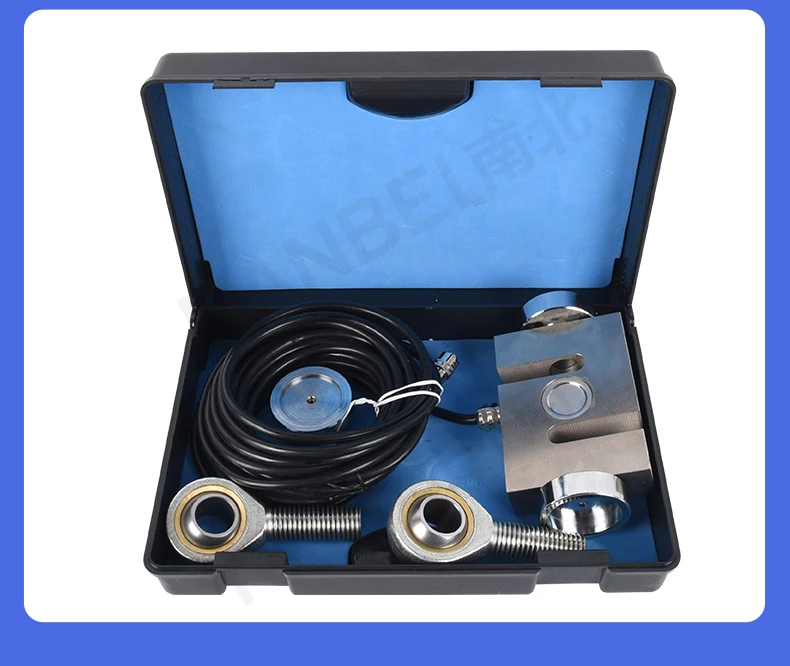

Model specification sheet of force gauge with external sensor:
Model |
HF-2000 |
HF-5000 |
HF-10K |
HF-20K |
HF-50K |
HF-100K |
HF-200K |
HF-500K |
HF-1000K | |||
Peak
load
value |
2000N |
5000N |
10KN |
20KN |
50KN |
100KN |
200KN |
500KN |
1000KN | |||
load
division
value |
1N |
1N |
0.01KN |
0.01KN |
0.01KN |
0.1KN |
0.1KN |
0.1KN |
1KN | |||
0.1kg |
0.1kg |
0.001kg |
0.001kg |
0.001kg |
0.01kg |
0.01kg |
0.01kg |
0.1kg | ||||
0.1lbs |
0.1lbs |
0.001Klbs |
0.001Klbs |
0.001Klbs |
0.01Klbs |
0.01Klbs |
0.01Klbs |
0.1Klbs | ||||
Indication
error |
±1% |
±1% | ||||||||||
Unit |
N / (KN), kg / (Mg or t), lb (KIb) | |||||||||||
Data
interface |
Rs232 nine-hole socket | |||||||||||
Power |
rechargeable batteries, charger(charging voltage 100V-240V) | |||||||||||
Sensor
structure |
S-tye or column sensor with high precision (external sensor) | |||||||||||
Ambient
temp. |
5° C~35° C | |||||||||||
Transport
temp. |
-10° C~60° C | |||||||||||
Relative
humidity |
15%~80%RH | |||||||||||
Working
conditions |
No hypocenter and corrosive medium | |||||||||||
Gross
weight |
6 kg |
9 kg |
24 kg |
36 kg | ||||||||
Size |
280 x 200 x 170 mm |
310 x 260 x 190 mm | ||||||||||
Model |
HF-2000K |
HF-3000K |
Peak load value |
2000KN |
3000KN |
load division value |
1KN | |
0.1Mg | ||
0.1Klb | ||
Indication error |
±1% | |
Unit |
N / (KN), kg / (Mg or t), lb (Klb) | |
Data interface |
Rs232 nine-hole socket | |
Power |
rechargeable batteries, charger(charging voltage 100V-240V) | |
Sensor structure |
S-type or column sensor with high precision (external sensor) | |
Ambient temperature |
5° C~35° C | |
Transport temperature |
-10° C~60° C | |
Relative humidity |
15%~80%RH | |
Working conditions |
No hypocenter and corrosive medium | |
Gross weight |
36 kg | |
Size |
310 x 260 x 190 mm | |

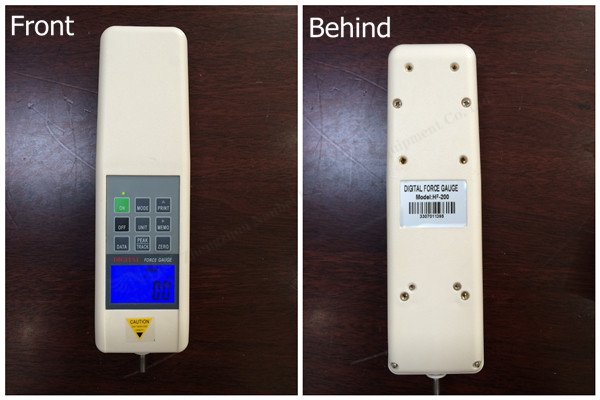

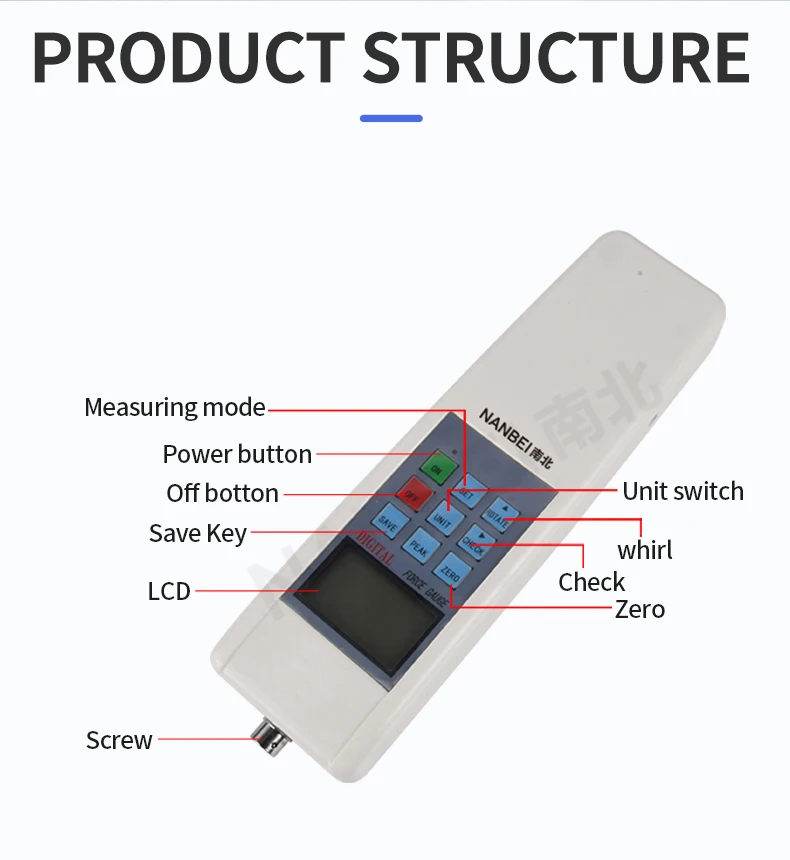

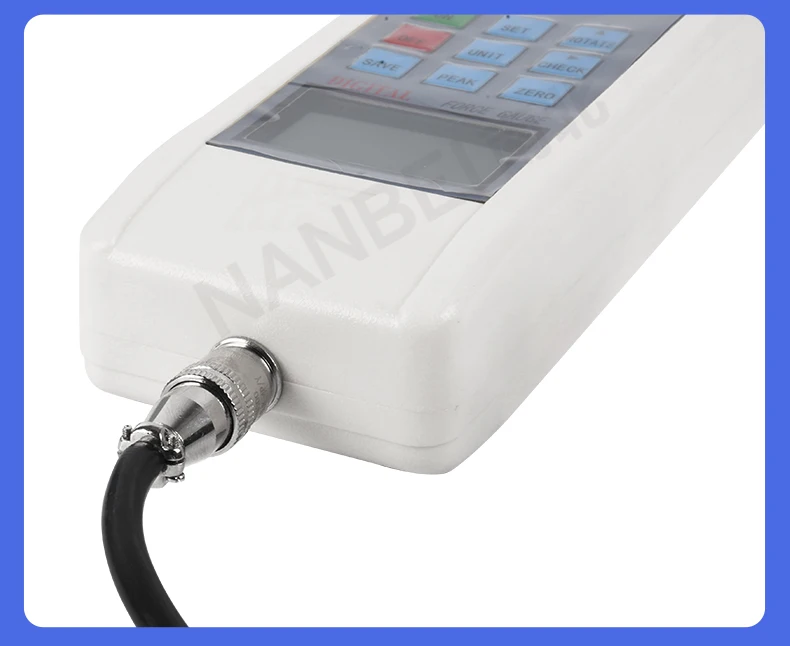

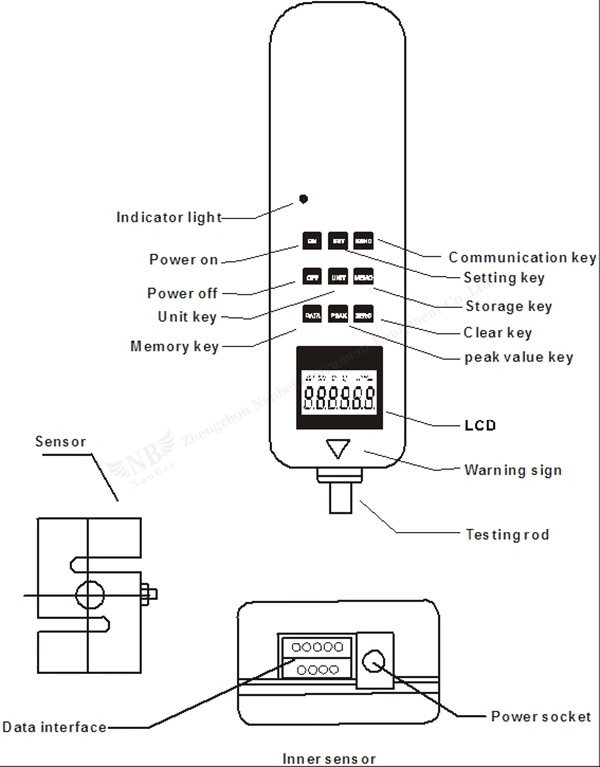

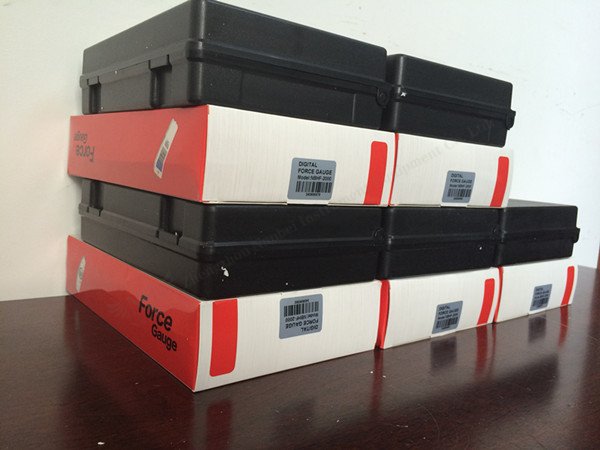

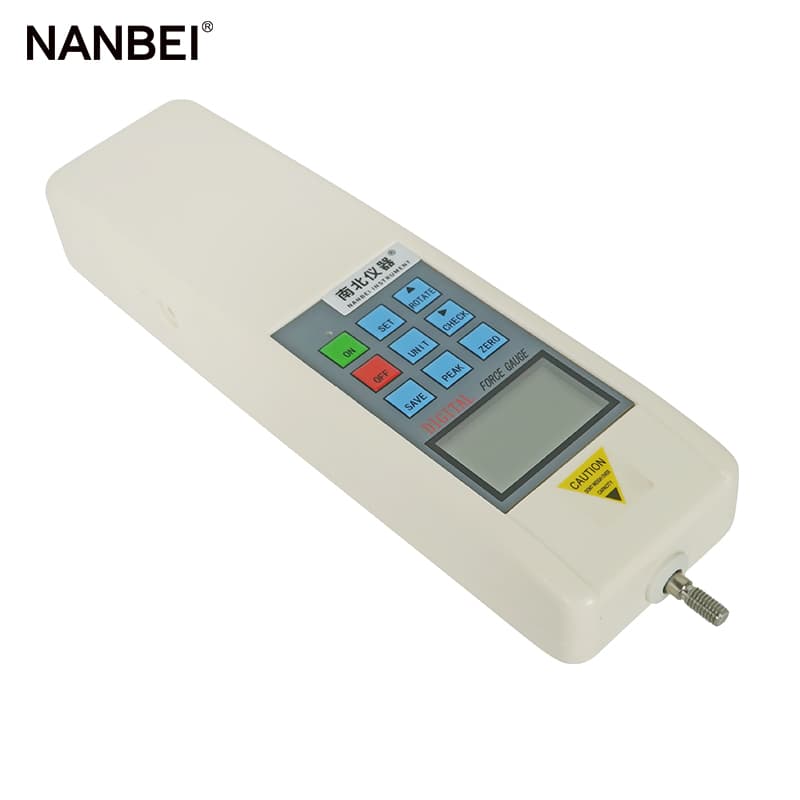

More pictures for digital force gauge as follows:

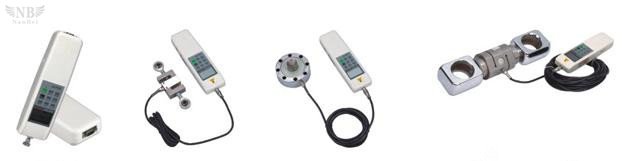

Install pictures for digital force gauge:

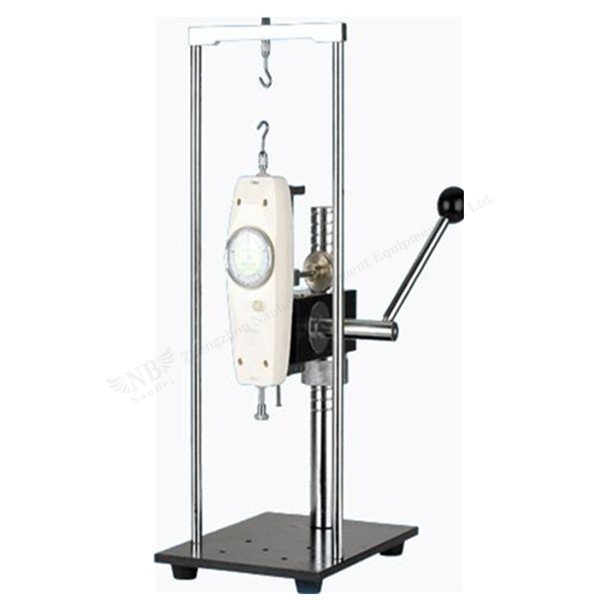

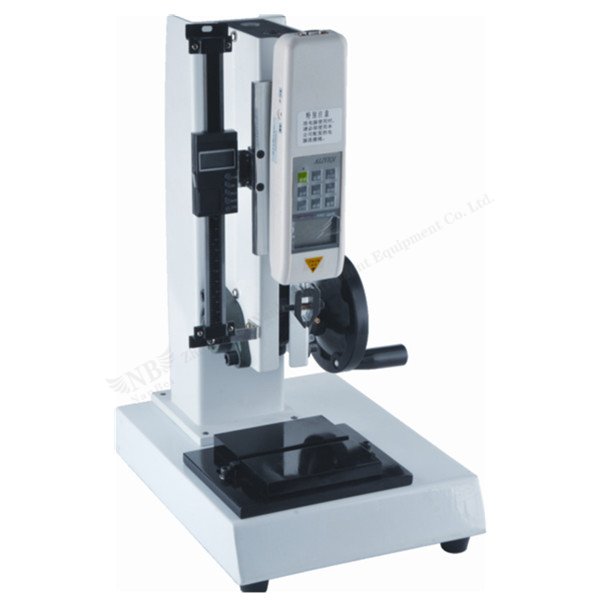

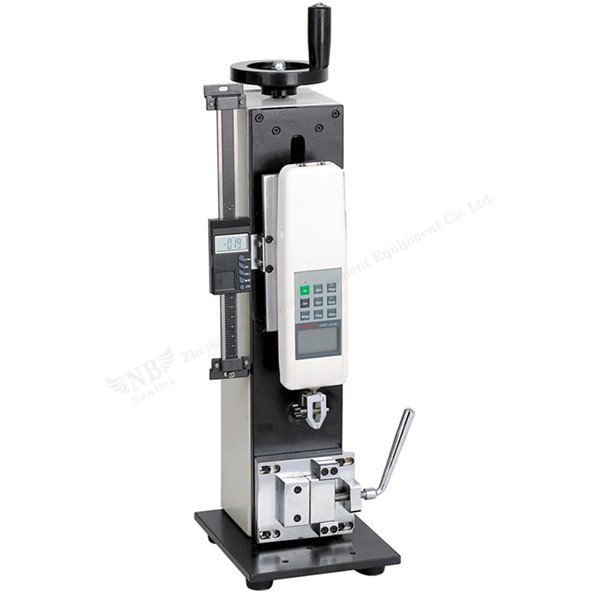

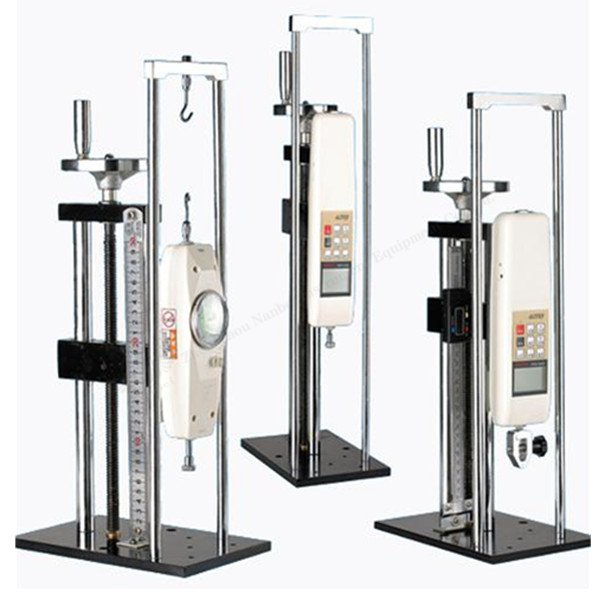

Other model we can supply as follows:

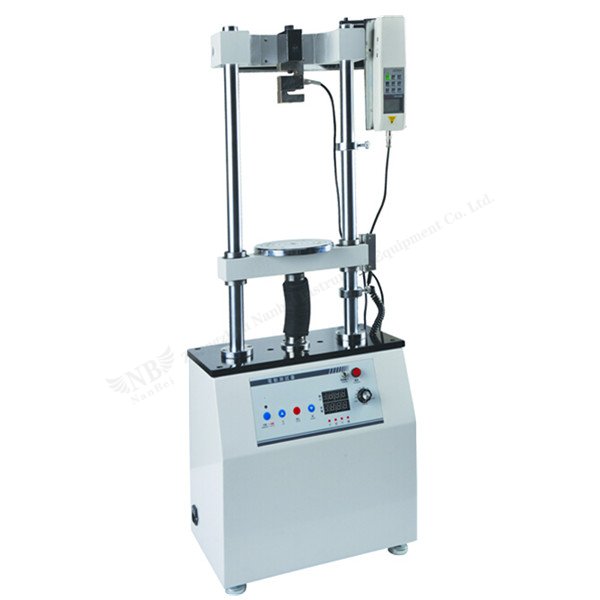

AEV Electric Double Column
Vertical Test Stand |
ASC Side Shake Screw
Test Stand |
ASL Manual Vertical
(Horizontal) Dual Test Stand |
 |
 |
 |

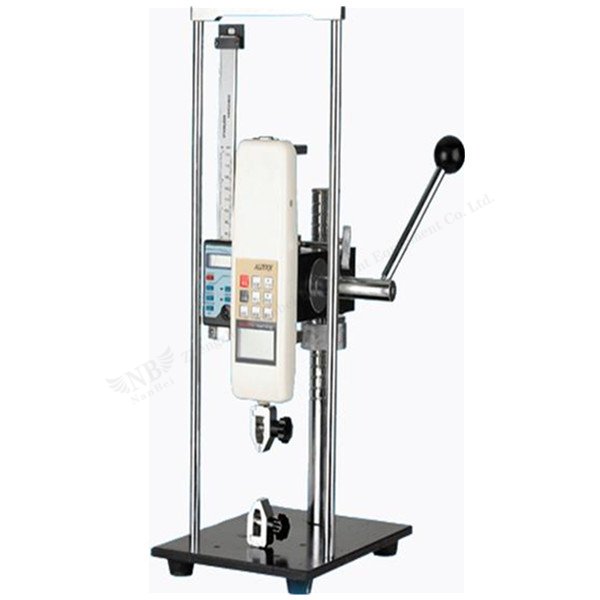

AST-S Manual Push/
Pull Test Stand |
AST-J Manual Push/
Pull Test Stand |
ALX Screw Test Sand |
 |
 |
 |
Please feel free ask me if you have any question about our product. Thanks
