LGJ-10 Top Press Type Freeze Dryer
LGJ-10 Top Press Type Freeze Dryer

LGJ-10 Top Press Type Freeze Dryer

Brand:NANBEI

Model:LGJ-10 top press type

Application:

product details

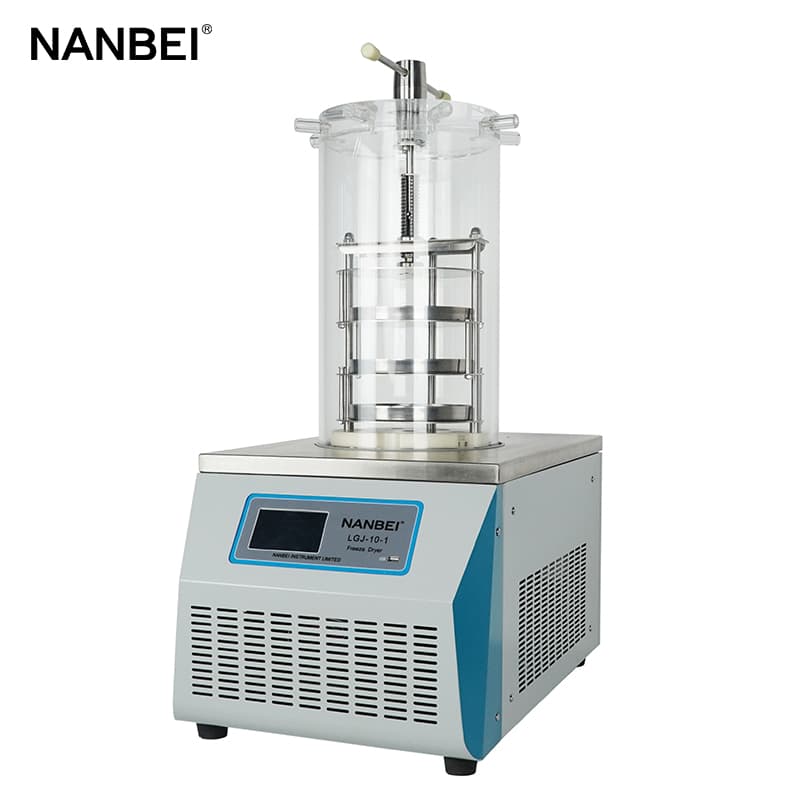

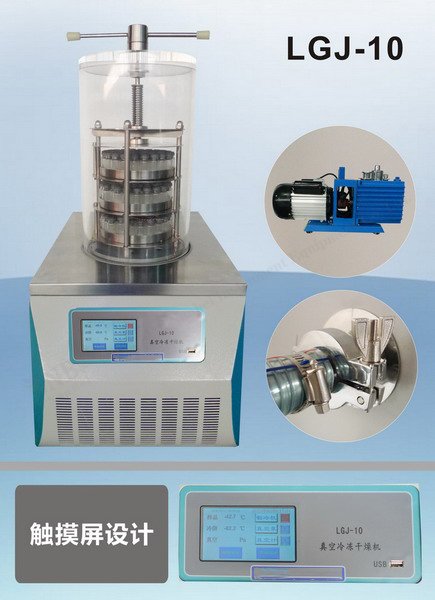

LGJ-10 top press type freeze dryer

Application:

LGJ-10 freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory._DSC6162.JPG

Main Characteristics:

1. Match the green environmental protection of international standard

2. Liquid crystal display, Chinese interface, display drying curve

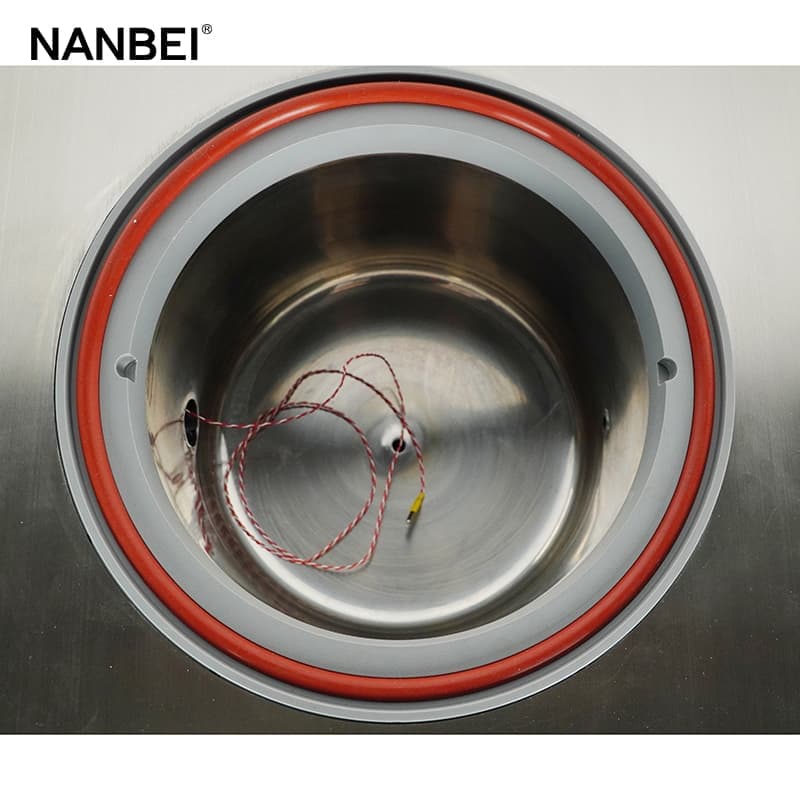

3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function

4. Imported compressor, high capability of water-capture, low noise

5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying

6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright

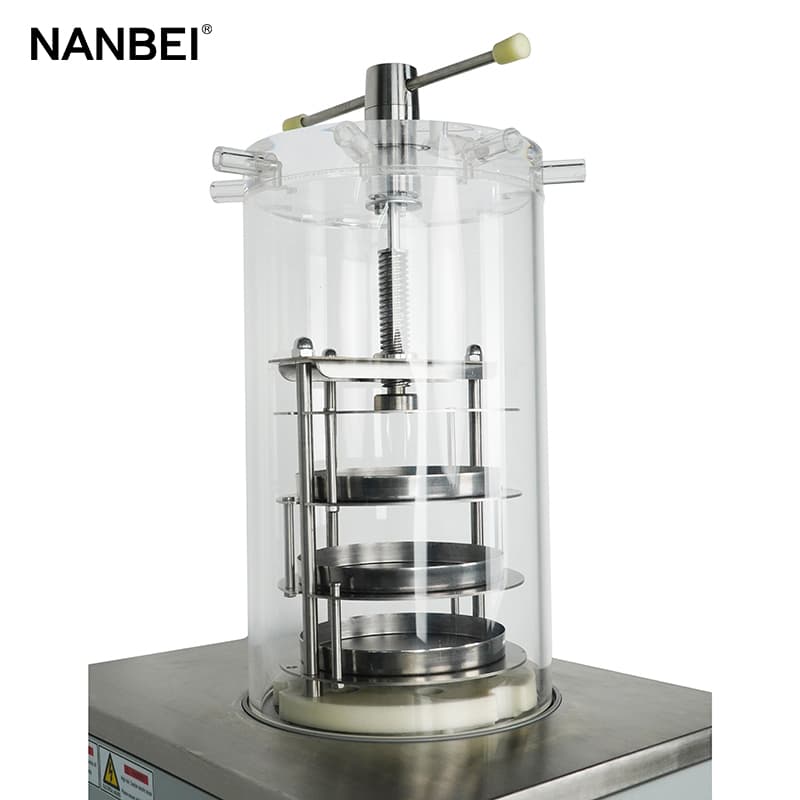

7. Transparent bell-cap drying room is safe and visual

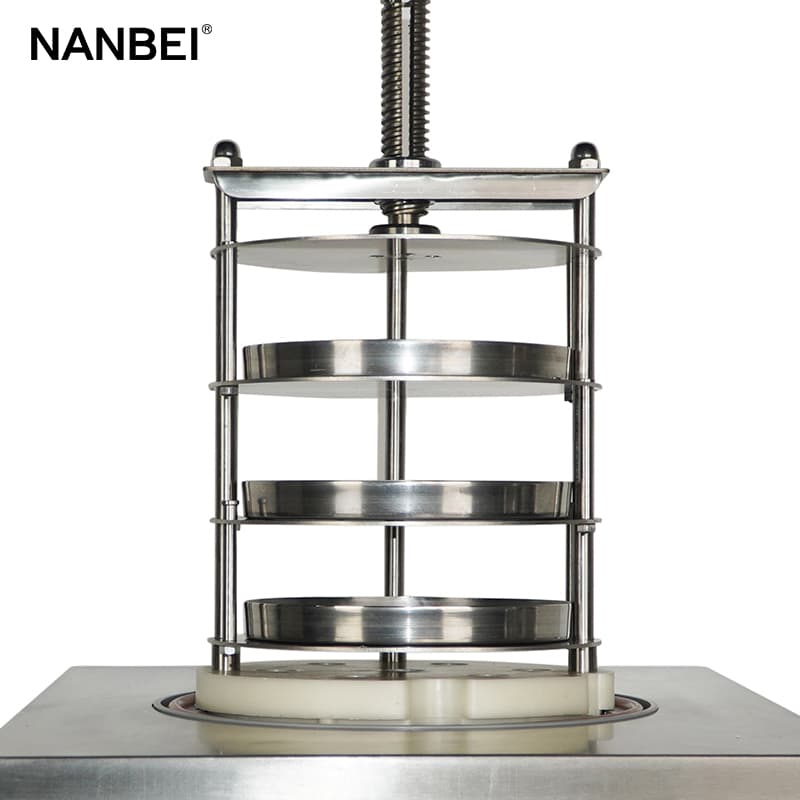

8. Stainless steel sample shelf, the space of common sample tray can be adjusted

9. Small volume, convenient operation


Technical parameter:

Model

LGJ-10

Specification

Top-press type

Freeze-drying area

0.08㎡

Cold trap temperature

<-55℃

Vacuum degree

<10 Pa

Water-capture capacity

3-4 Kg/24h

Material tray

¢180mm*3

Power

970 W

Dimension

565*420*(360+430)mm

Material

0.8L

12mm exiling bottle

560

16mm exiling bottle

285

22mm exiling bottle

165

Notice: The temperature of cold trap may reach -80℃       according to the user’s needs

Remark: This product is for civilian use only
