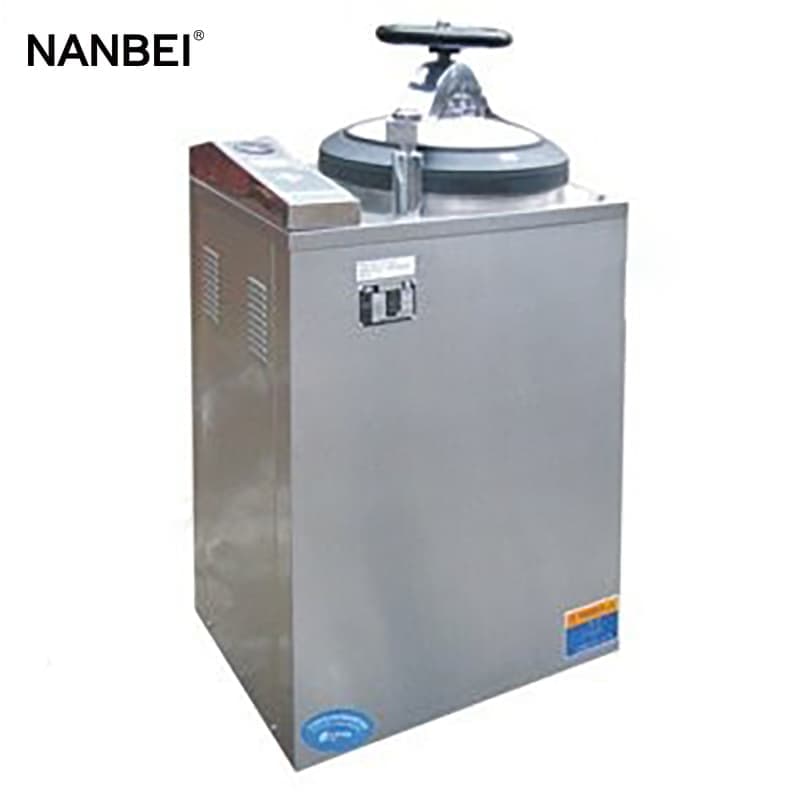

LS-100HG 100L Fully Automatic Vertical Pressure Steam Sterilizer
LS-100HG 100L Fully Automatic Vertical Pressure Steam Sterilizer

LS-100HG 100L Fully Automatic Vertical Pressure Steam Sterilizer

Brand:NANBEI

Model:LS-100HG

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

Vertical pressure steam sterilizer (fully automatic microcomputer)


Characteristics:

1.Fully stainless steel structure

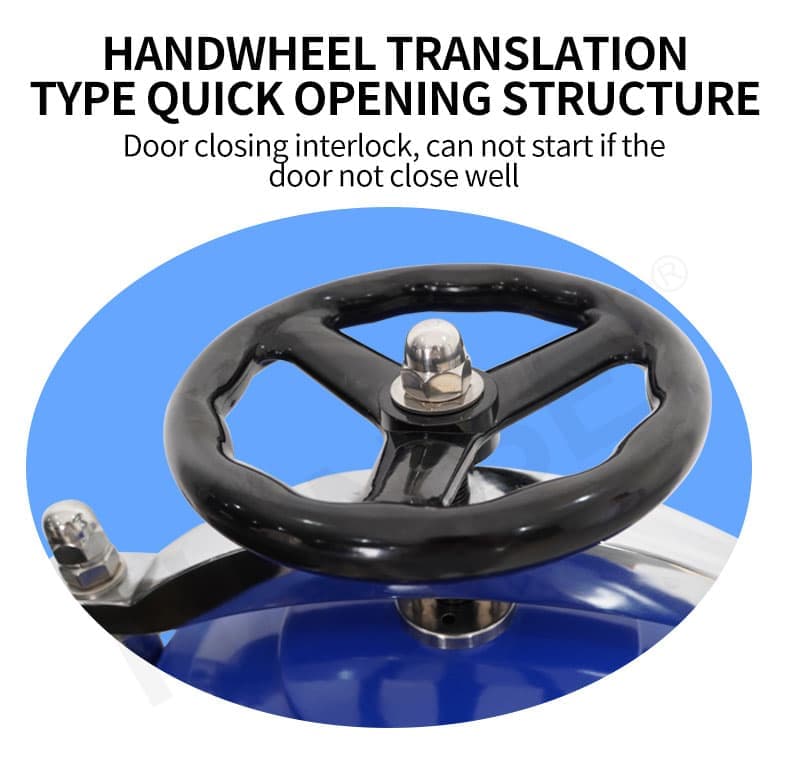

2.Hand wheel type of quick-open door structure

3.Door safety lock system

4.Automatically controlled by computer

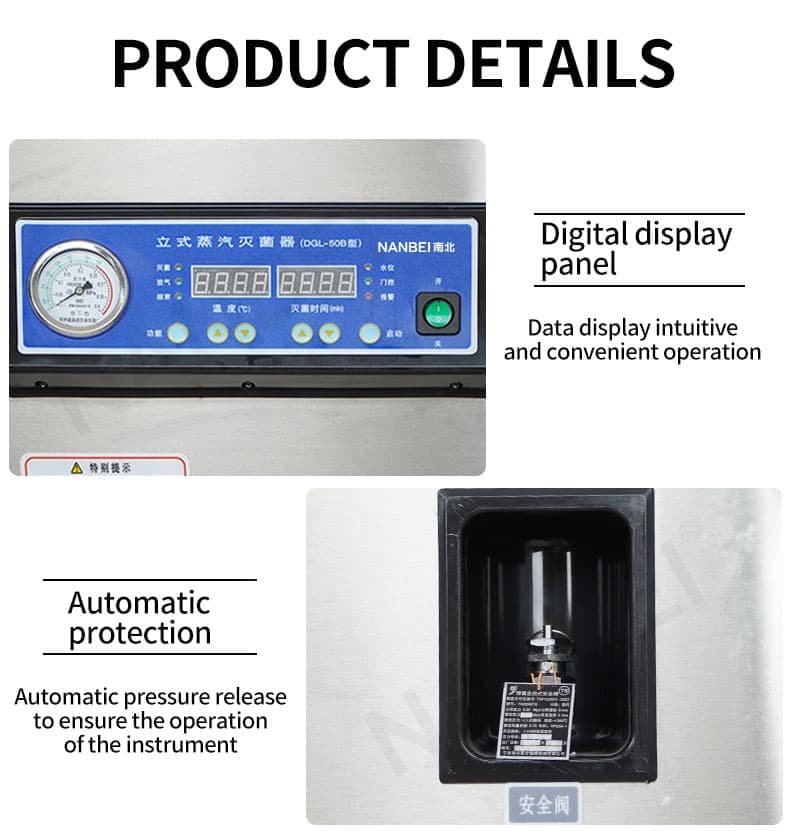

5.Digital display of working status,touch of key

6.Over temperature&over pressure auto-protection

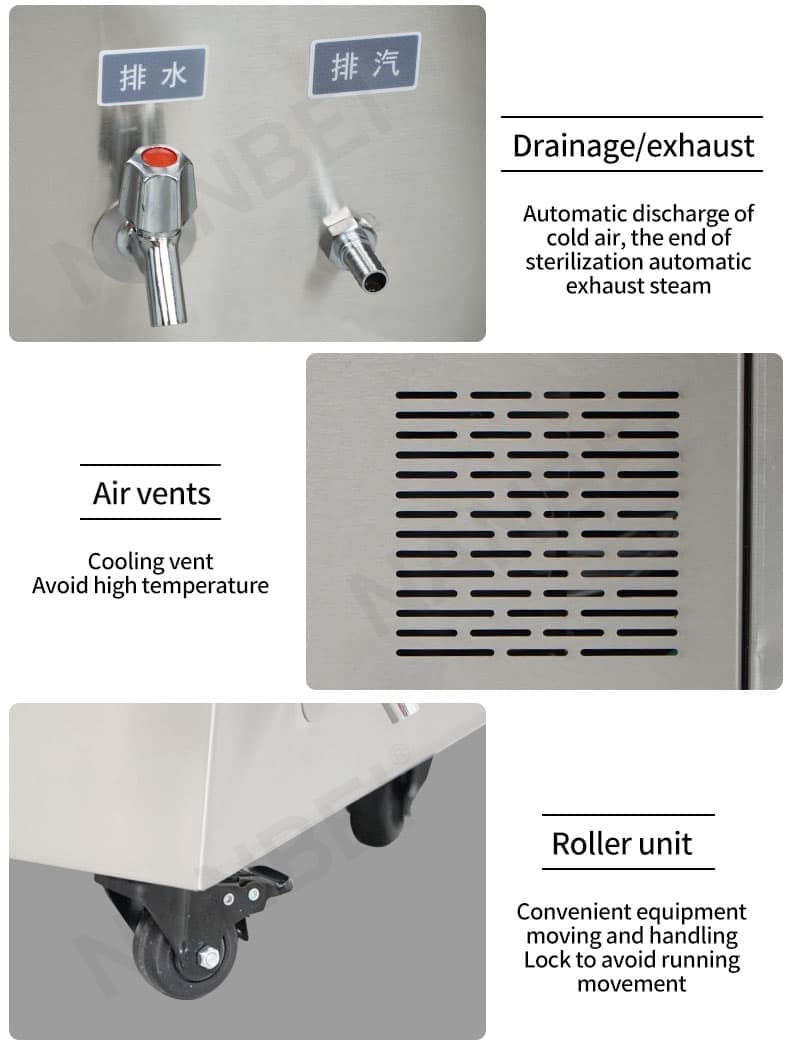

7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry

8.Self-inflating type seal

9.Safe protection of water lacking

10.The drying system is optional,which can be equipped according to the customers' request

11.Automatically shut off with beep reminding after sterilization

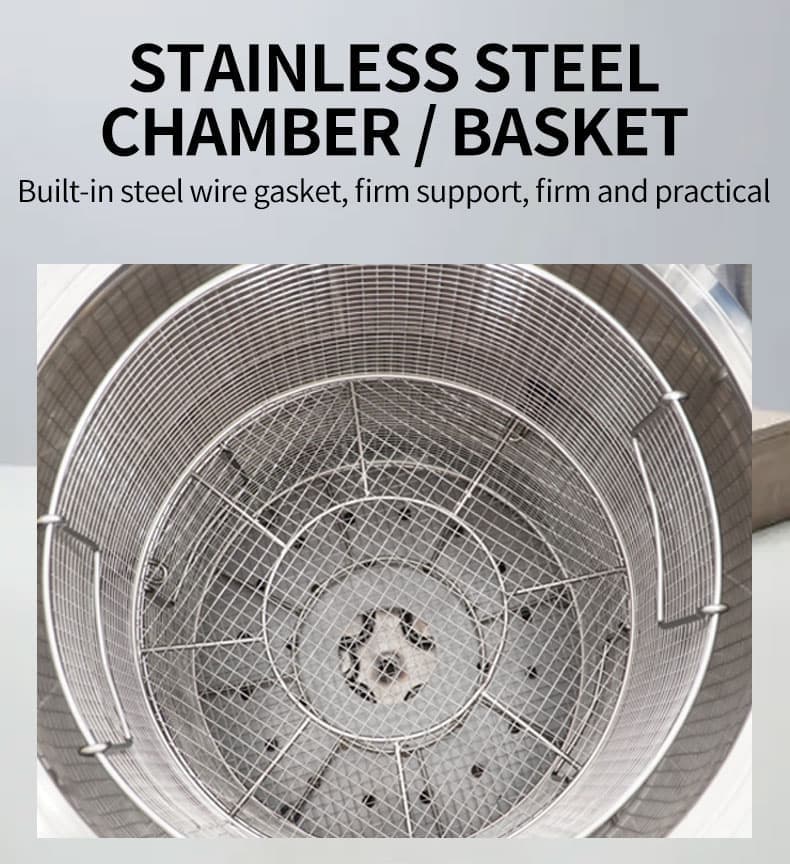

12.With two stainless steel sterilizing baskets



Technical Data:

Technical Data
LS-35HG
LS-50HG
LS-75HG
LS-100HG
Chamber volume
35L
(φ318×450)mm
50L
(φ340×550)mm
75L
(φ400×600)mm
100L
(φ440×650)mm
working pressure
0.22MPa
Working temperature
134℃
Max working pressure
0.23Mpa
Heat average
≤±1℃
Timer
0~99min OR 0~99hour59 min
Adjustment of temperature
0~134℃
Power
2.5KW/AC220V.50Hz
3KW /AC220V.50Hz
4.5KW /AC220V.50Hz
Overall
dimension
600×410×1030mm
650×410×1140 mm
690×470×1140 mm
730×510×1270 mm
Transport
dimension
730×500×1170 mm
730×500×1290 mm
760×550×1290 mm
820×600×1380 mm
G.W/N.W
96Kg/ 77Kg
102Kg/ 83Kg
120Kg/98Kg
135/110Kg
