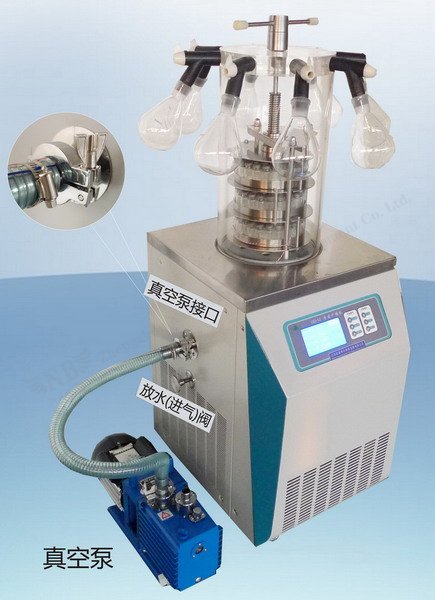

LGJ-12 Manifold Top Press Freeze Dryer
LGJ-12 Manifold Top Press Freeze Dryer

LGJ-12 Manifold Top Press Freeze Dryer

Brand:NANBEI

Model:LGJ-12 manifold top press freeze dryer

Application:

product details

LGJ-12 manifold top press freeze dryer

Application:

LGJ-12 manifold top press freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.


Main Characteristics:

1. Match the green environmental protection of international standard

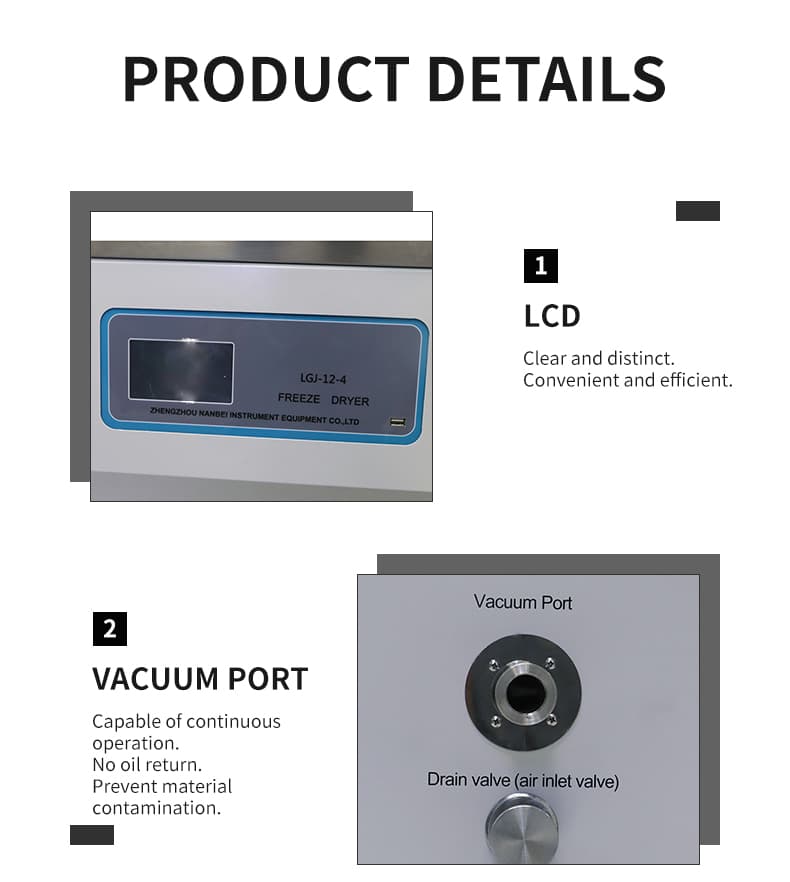

2. Liquid crystal display, Chinese interface, display drying curve

3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function

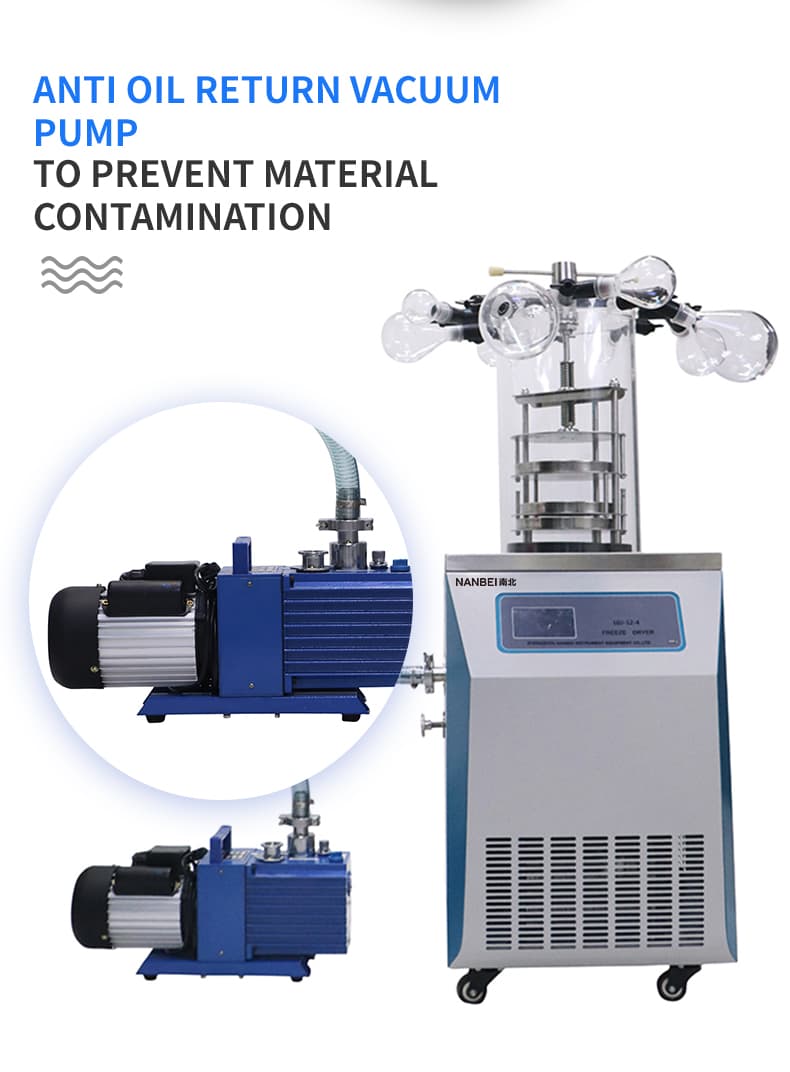

4. Imported compressor, high capability of water-capture, low noise

5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying

6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright

7. Transparent bell-cap drying room is safe and visual

8. Stainless steel sample shelf, the space of common sample tray can be adjusted

9. Small volume, convenient operation



Technical parameter:

Model

LGJ-12

Specification

Top-press type

Freeze-drying area

0.08㎡

Cold trap temperature

<-55℃

Vacuum degree

<10 Pa

Water-capture capacity

3-4 Kg/24h

Material tray

¢180mm*3

Power

1070 W

Dimension

560*460*(710+430)mm

Material

0.8L

12mm exiling bottle

560

16mm exiling bottle

285

22mm exiling bottle

165

Notice: The temperature of cold trap may reach -80℃ according to the user’s needs

Remark: This product is for civilian use only
