Vacuum Dry Oven
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NBD-6090LC
Application:For Lab,Hospital,Medical,Pharmaceuticals, Electronics industry and Chemical industry.

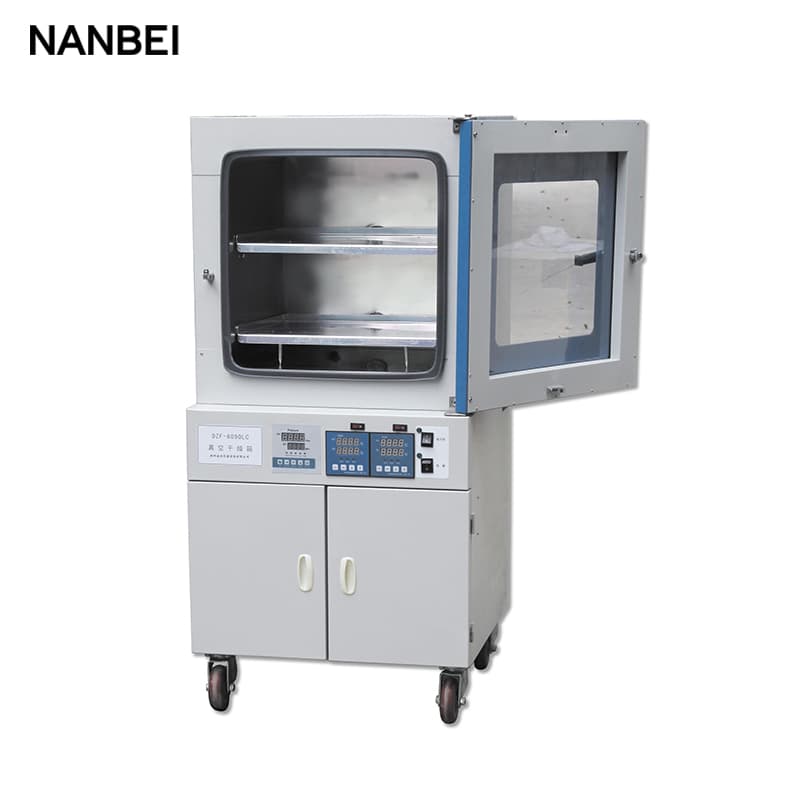

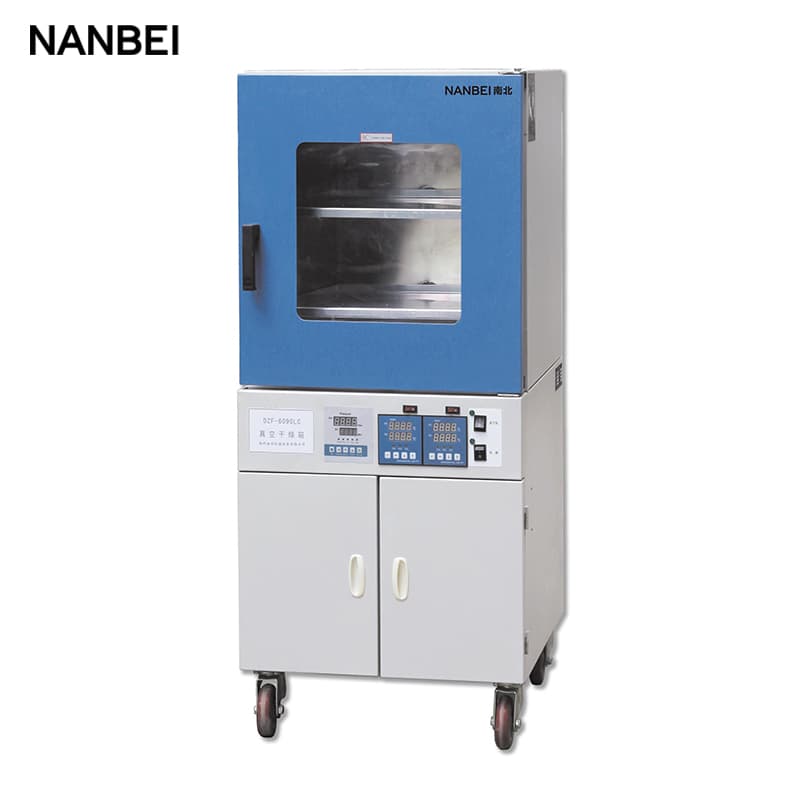

NBD-6090LC Vacuum drying oven
Summary of vacuum drying oven:
Vacuum oven is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily,
it can be filled with inert gases, which is especially for a rapid drying of some compound material, widely applied in pharmaceuticals,
electronics industry and chemical industry.
Features of the vacuum drying oven:

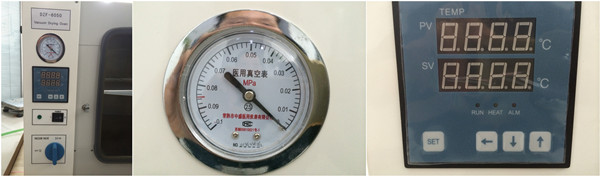

1.digital display microprocessor temperature controller and timing function ensures a precise and reliable temperature control
2.cuboid chamber maximizes the effective cubage
3.dual-layer-bullet-proof toughened glass door ensures absolutely clear observation on objects in chamber
4.Shutting extent of oven door ifs adjustable, closed-cell silicon gasket ensures a high vacuum degree in oven
5.The chamber is made of stainless steel(or wire-drawing sheet), which allows a durable service
6.“D” series vacuum oven are multiple sections (up to 10 sections) intelligent programmable LCD controller
7.“LC”series vacuum oven are vacuum degree LCD screen controller.
Technical parameters:
Model | NBD-6500 NBD-6500D NBD-6500LC | NBD-6210 NBD-6210D NBD-6210LC | NBD-6090 NBD-6090D NBD-6090LC | NBD-6050 NBD-6050D NBD-6050LC NBD-6053 |
Voltage | 380V/50HZ | 220v 50HZ | 220v 50HZ | 220v 50HZ |
Power | 3600w | 2200w | 1400w | 1450w |
Temp. range | +10-200℃ | +10-250℃ | +10-250℃ | +10-250℃ |
Temp.resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
Constant volatility | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
Vacuum degree | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa |
Working temp. | 5-40℃ | 5-40℃ | 5-40℃ | 5-40℃ |
Inner dimension | 630*810*845 | 560*600*640 | 450*450*450 | 415*370*345 |
Size(mm) | 790*1030*1855 | 720*805*1680 | 610*660*1400 | 730*560*550 |
shelves | 4pcs | 3pcs | 2pcs | 2pcs |
Working chamber material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Timing | 1-9999minutes | 1-9999minutes | 1-9999minutes | 1-9999minutes |
Model | NBD-6051 | NBD-6021 | NBD-6020 NBD-6020D | NBD-6030A NBD-6030AD | NBD-6020B NBD-6030B NBD-6050B |
Voltage | 220v 50HZ | 220v 50HZ | 220v 50HZ | 220v 50HZ | 220v 50HZ |
Power | 1450w | 450w | 450w | 450w | 350w/450w |
Temp. range | +10-200℃ | +10-200℃ | +10-250℃ | +10-250℃ | +5-65℃ |
Temp.resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
Constant volatility | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±0.5℃ |
Vacuum degree | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa | ＜133Pa |
Working temp. | 5-40℃ | 5-40℃ | 5-40℃ | 5-40℃ | 5-40℃ |
Inner dimension | 415*370*345 | 300*300*275 | 300*300*275 | 320*320*300 | 300*300*275 320*320*300 415*370*345 |
Size(mm) | 730*560*550 | 605*490*450 | 605*490*450 | 630*510*490 | 605*490*450 630*510*490 730*560*550 |
shelves | 2pcs | 1pcs | 1pcs | 1pcs | 1pcs |
Working chamber material | Cold-rolled plate | Cold-rolled plate | Stainless steel | Stainless steel | Stainless steel |
Timing | 1-9999minutes | 1-9999minutes | 1-9999minutes | 1-9999minutes | 1-9999minutes |
Note:model 6090,6210,6500 and LC series are equipted with vacuum pump
·specification test under no load condition:ambient temperature is 20C, and relative humidity is 50%

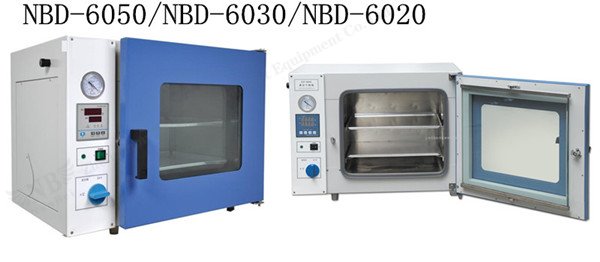

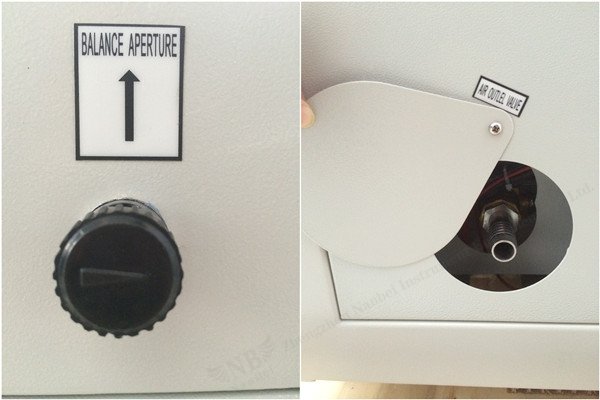

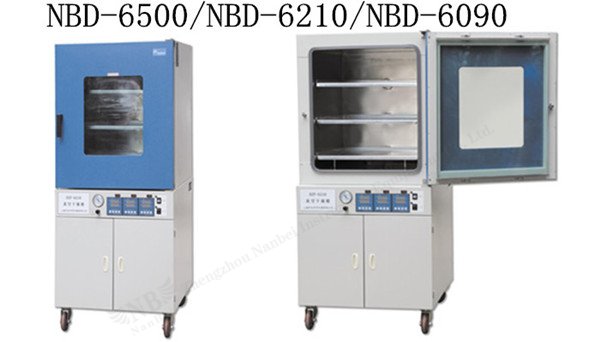

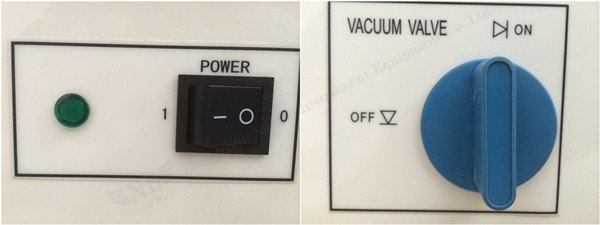

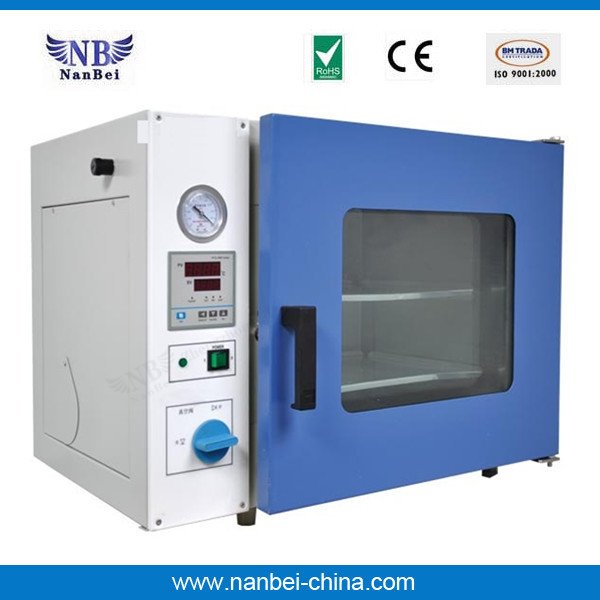

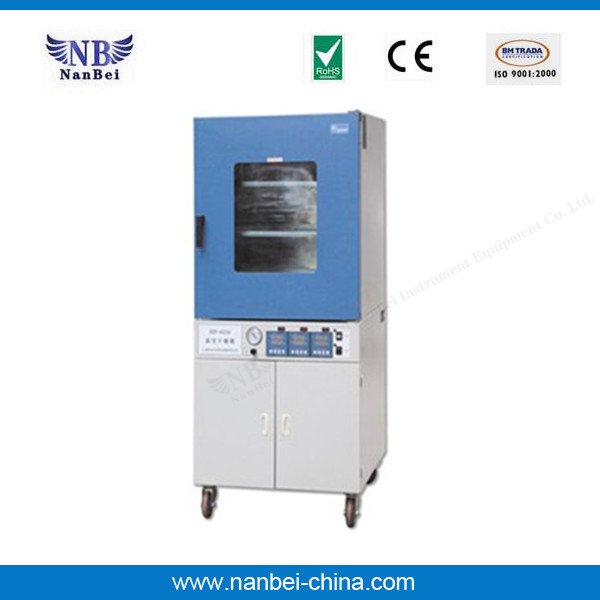

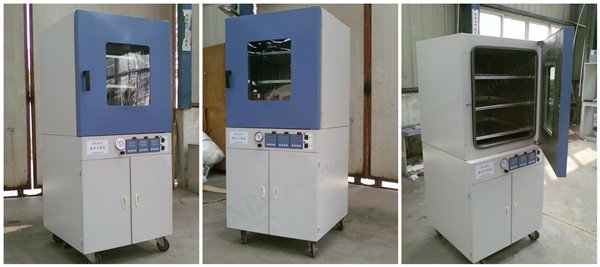

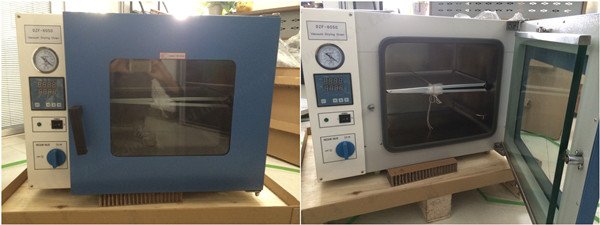

More pictures of vacuum drying oven
Options:
1 intelligent programmable LCD temperature controller
2 intelligent programmable temperature controller
3 vacuum pump 2XZ-4(4L/S) allocation special socket(shanghai)
4 dry filter-Jar
5 gas and liquid separator(vacuum liquid dust filter)
6 inert gas valve
7 RS485 Socket
All model vacuum drying oven we can supply as follows:
500L vacuum drying oven | 210L vacuum drying oven | 90L vacuum drying oven |
|
|
|
50L vacuum drying oven | 30L vacuum drying oven | 20L vacuum drying oven |
|
|
|
|
