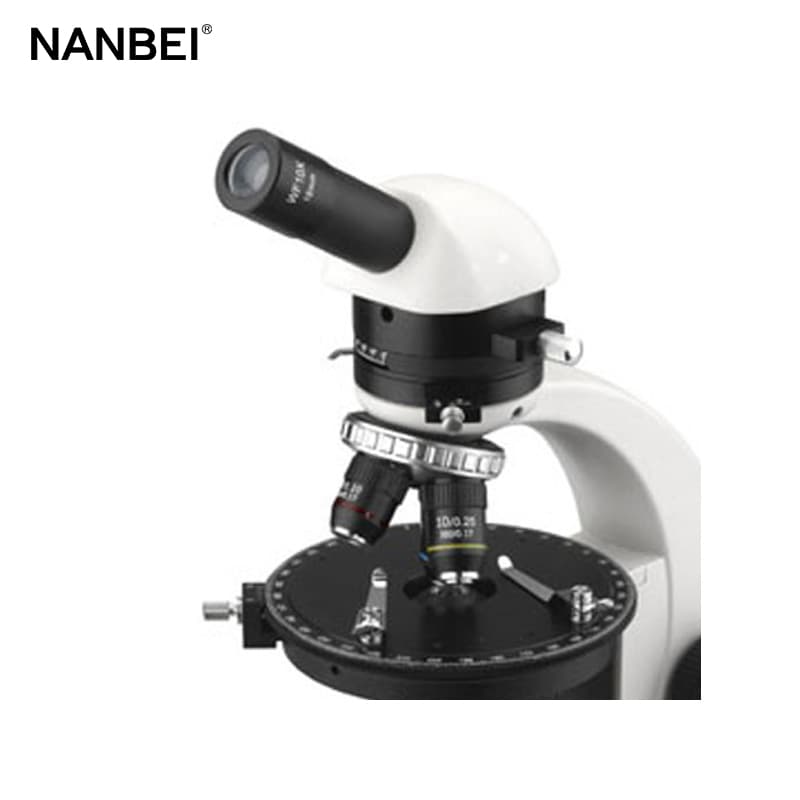

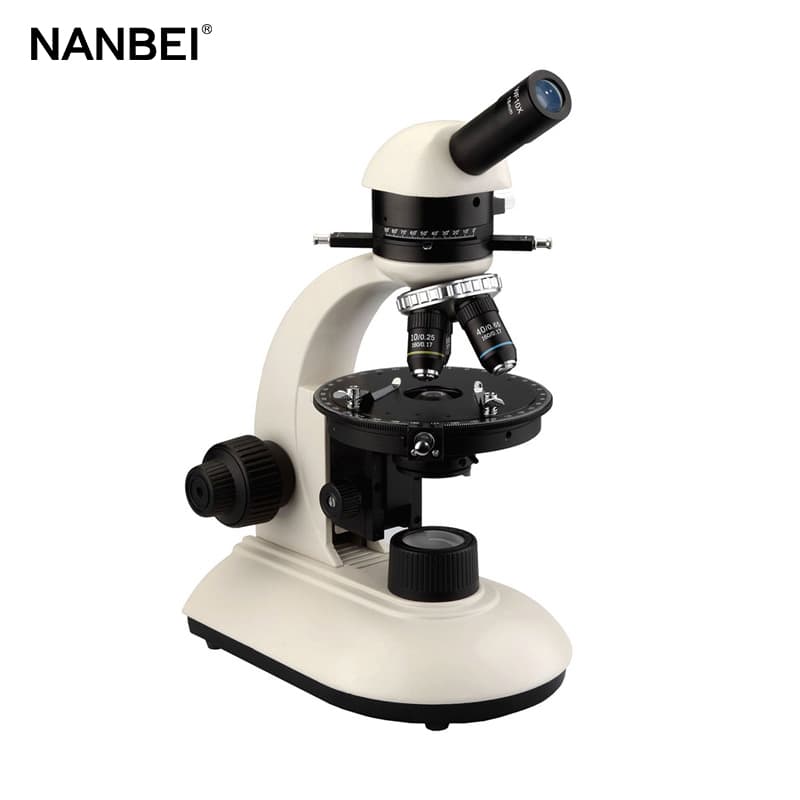

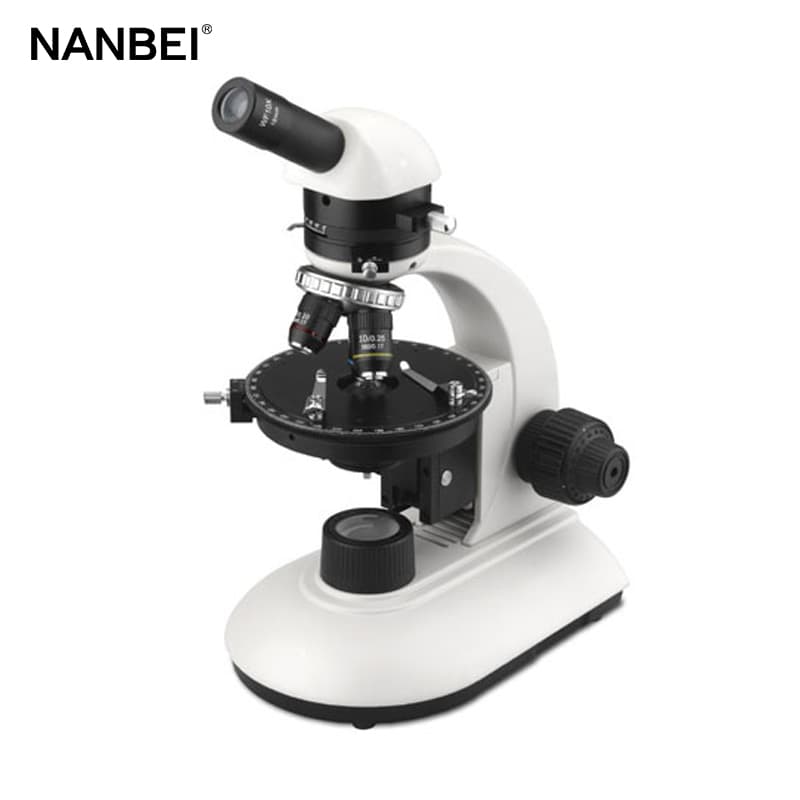

B-POL Polarizing Microscope
B-POL Polarizing Microscope

B-POL Polarizing Microscope

Brand:NANBEI

Model:B-POL

Application:

product details

B-POL Polarizing Microscope Outfits



Items
Specification
B-POL
Eyepiece WF 10×-18mm (Cross, Reticule 0.1mm)
WF 16×-13mm
Non-stress
Achromatic Objective
10×
40× (S)
20×
60× (S)
Mono Head
Inclined 30°, Rotatable 360°
Nosepiece
Quadplex
Analyzer Unit
0-90°,It can be moved out of the optical path for single polarizing observe.
Bertrand Lens
It can be moved out of the optical path.
λ Slip
First Class Red
1/4λ Slip

Quartz Wedge
(Ⅰ-Ⅳ Class)
Revolving Round Stage
Rotatable 360°, Division 1°, Vernier division 6’,can be locked.
Polarizing Attached Mechanical Stage
Condenser
Abbe N.A. 1.25
Polarizing Unit
It can be moved out of the optical path.
Filter
Blue
Illumination
6V/20W Halogen Lamp
LED Lamp
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

B-POL Polarizing Microscope Size(mm):
