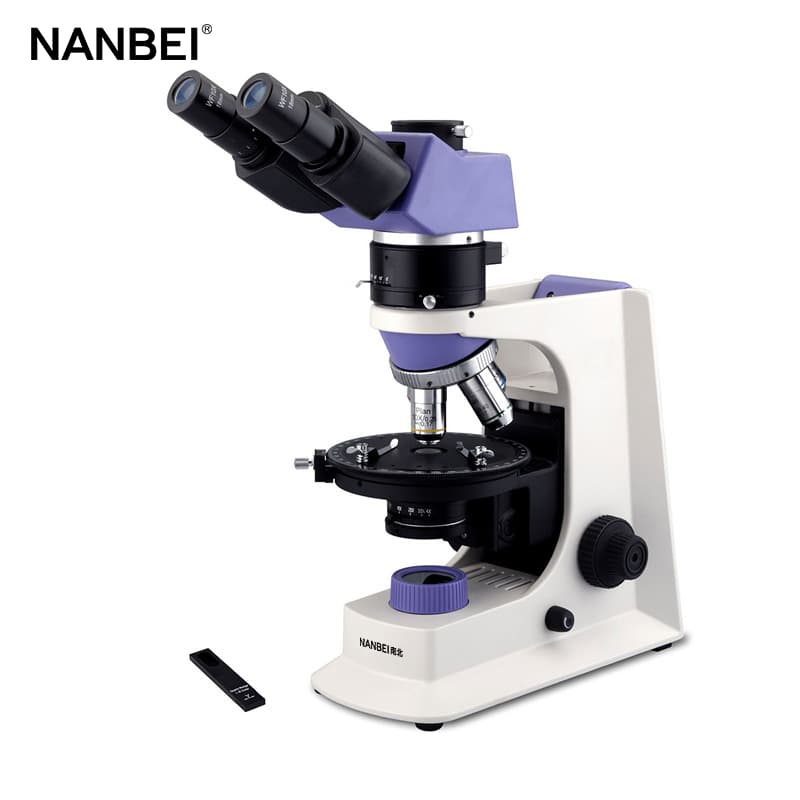

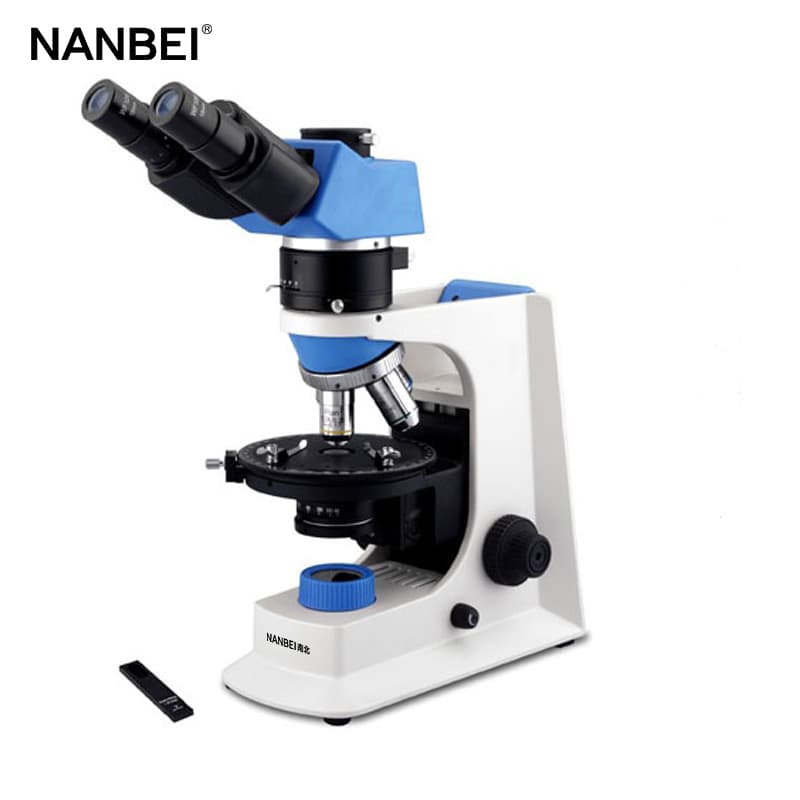

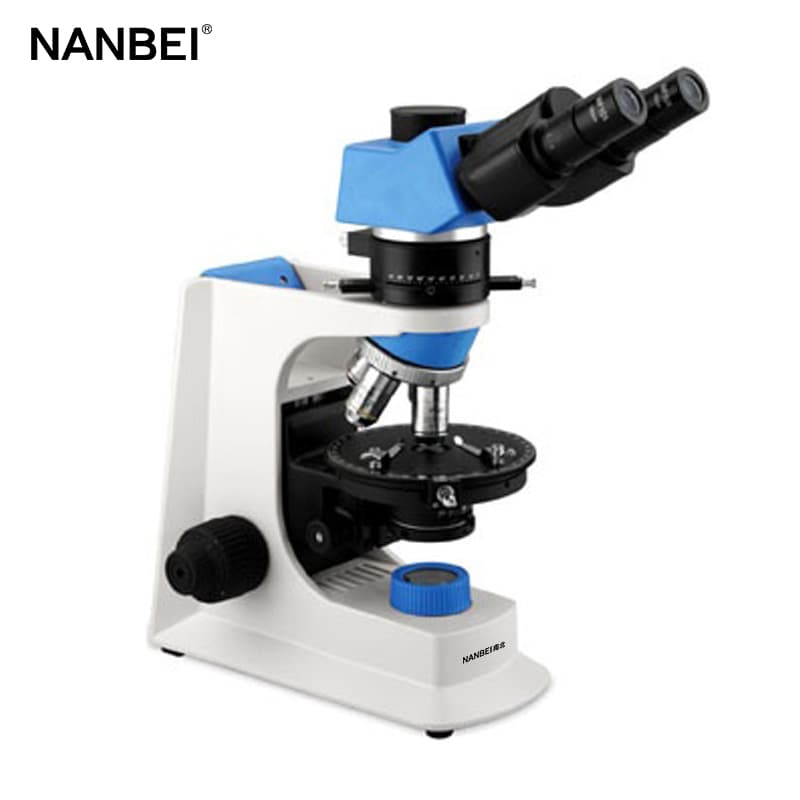

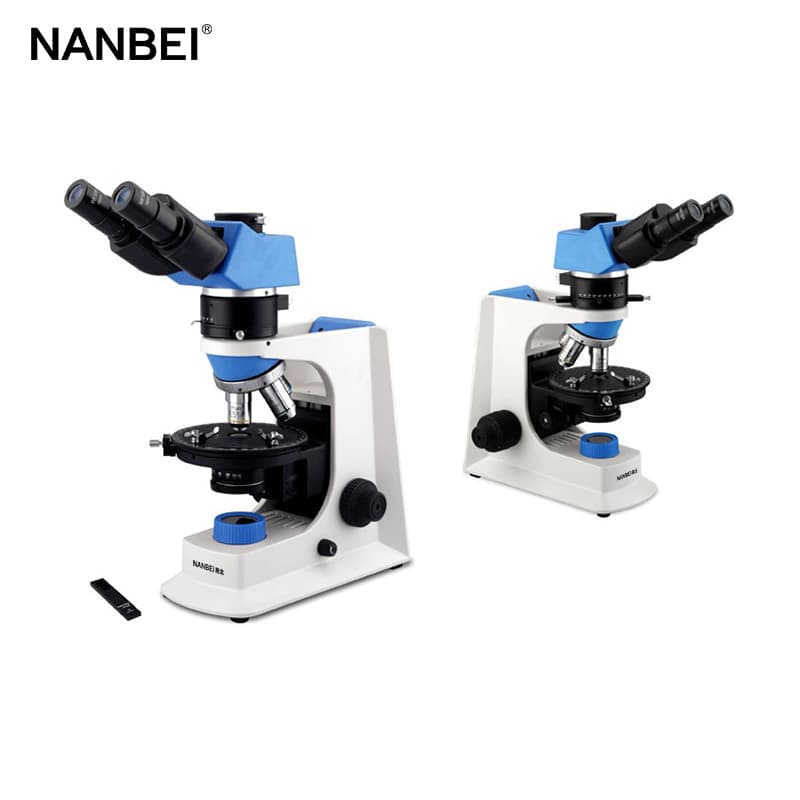

Smart-POL Polarizing Microscope Outfits
Items |
Specification |
SMART-POL |
Eyepiece |
WF 10×-18mm |
● |
| WF 10×-18mm (Reticule 0.1mm) |
● | |
Non-stress Infinity Plan Objective |
4× |
● |
| 10× |
● | |
| 20× (S) |
● | |
| 40× (S) |
● | |
| 60× (S) |
○ | |
Seidentopf Binocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm. |
● |
Seidentopf Trinocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm. Light Distribution: 20:80 |
○ |
Nosepiece |
Quadplex, Center adjustable |
● |
Analyzer Unit with Scale |
Rotatable 360°(Module Type, Can Be Locked) |
● |
Bertrand Lens |
Inbuilt, Center Adjustable |
● |
λ Slip |
First Class Red |
● |
1/4λSlip |
● | |
Quartz Wedge |
(Ⅰ-Ⅳ Class) |
● |
Revolving Round Stage |
Rotatable 360°, Center Adjustable, Division 1°,
Vernier division 6’ |
● |
| Polarizing Attached Mechanical Stage |
○ | |
Condenser |
Abbe N.A. 1.25 Non-stress |
● |
Polarizing Unit with Scale |
Rotatable 360°,Can Be Locked |
● |
Illumination |
6V/20W Halogen Lamp |
● |
| 6V/30W Halogen Lamp |
○ | |
Filter |
Blue(Built in) |
● |
| Amber |
○ | |
| Green |
○ | |
| Neutral |
○ | |
C-mount |
1X, 0.47X （Focus adjustable） |
○ |
Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
