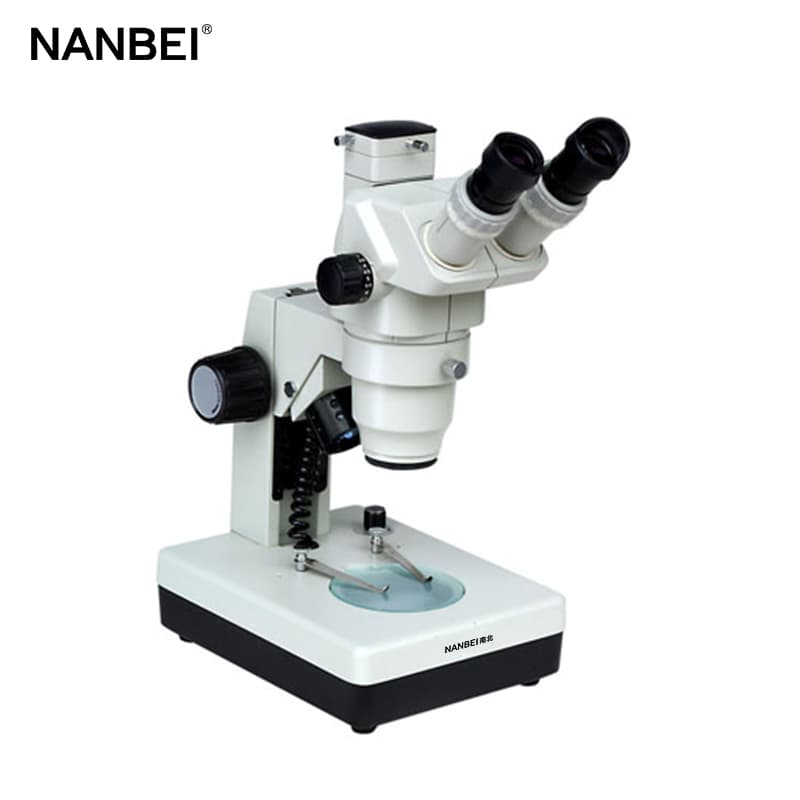

GL6545TI Stereo Microscopes

The high performance GL 6000 Series stereo microscopes utilize a Greenough design and feature a l：6.5 zoom ratio with a 103mm working distance and a large visual Field (23mm) Their parfocality allows an erect Image of the observed specimens to stay In focus through repeated changes In the magnification Adding to the ergonomics Is a choice of observation angle，either 45 0r 60 degrees The GL6445B zoom stereo Microscopes with built-In coaxial Illumination，Is the International coaxial illumination Technology, wide voltage It is particularly suitable for the test of LC maked film．LCD printing paste, LED roduction，PCB board，pressing and plating and observation micro-surface In Integrated circuit, metal parts, semiconductor.

Standard configurations

Zoom ratio	1:6.5
Objective zoom range	1X-6.5X
Eyepice	SWF10X/23mm
Working distance	103mm
Interpupillary distance adjustment range	52mm-75mm
Binocular Angle of View	Inclination45/60
Diopter adjustment	±5 diopter
Optical Body Rotation	360
Voltage input	110V/60HZ or 220V/50HZ
Top halogen lamp	6V15W Adjustable brightness
Bottom fluorescent lamp	5W


Technical data

Project	Auxiliary Objective	Eyepiece								Working distance(mm)
		SWF10X		WFl5X		WF20X		WF25X
		Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cationn	Visual field
Data	0.5X	5X-32.5X	46-7.4	7.5X-48.8X	32-5	10X-65X	26-4	12.5X-81.25.3X	24-..6	163
	0.75X	7.5X- 48.8X	30.7-4.7	11.3X-73.1X	21.3-3.3	15X-97.5	7.3-2.7	18.8X-121.9X	16-2.5	117
	1X	10X-65X	23-3.5	15X-97.5X	16-2.5	20X-130X	13-2	25X-162.5X	12-1.8	103
	1.5X	15X-97.5X	15.3-2.4	22.5X-146X	10.7-1.6	30X-185X	8.7-1.3	37.5X-243.8X	8-1.2	45
	2X	20X- 130X	11.5-1.8	30X-195X	8-1.2	40X-260X	6.5-1	50X-325X	6-0.9	40
