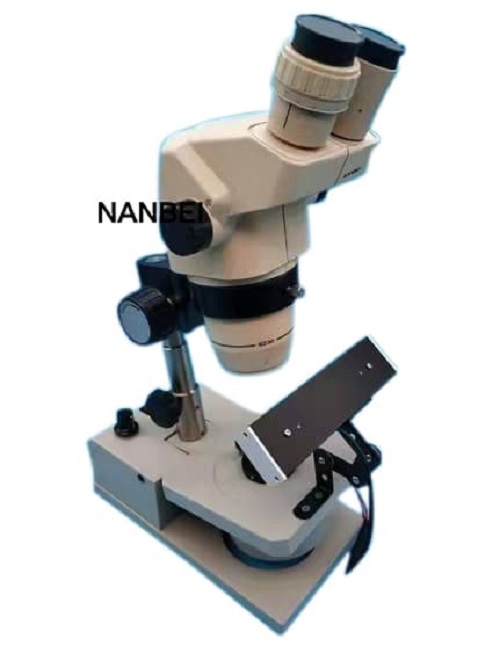

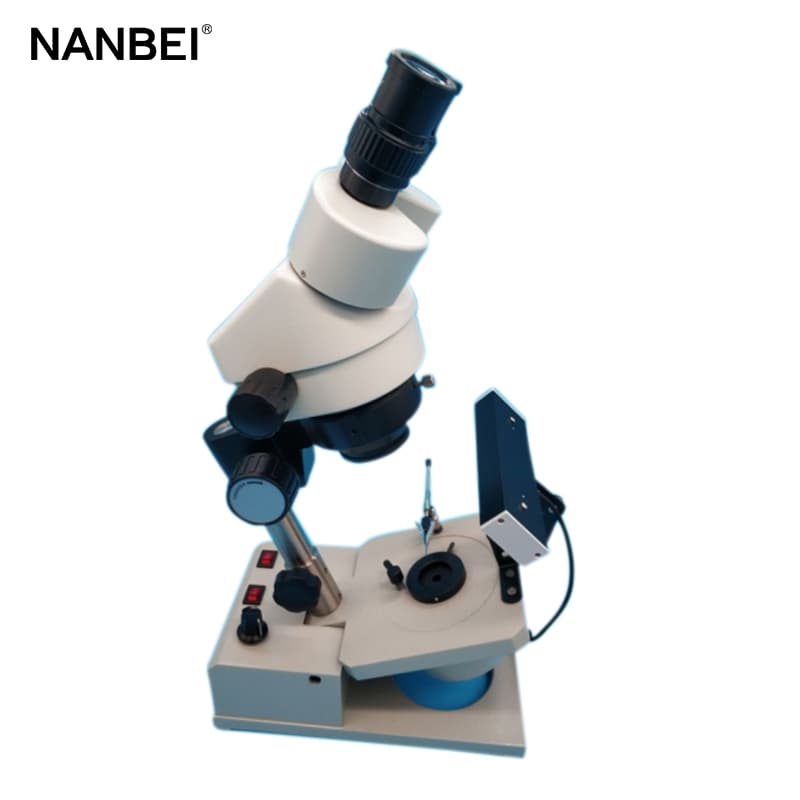

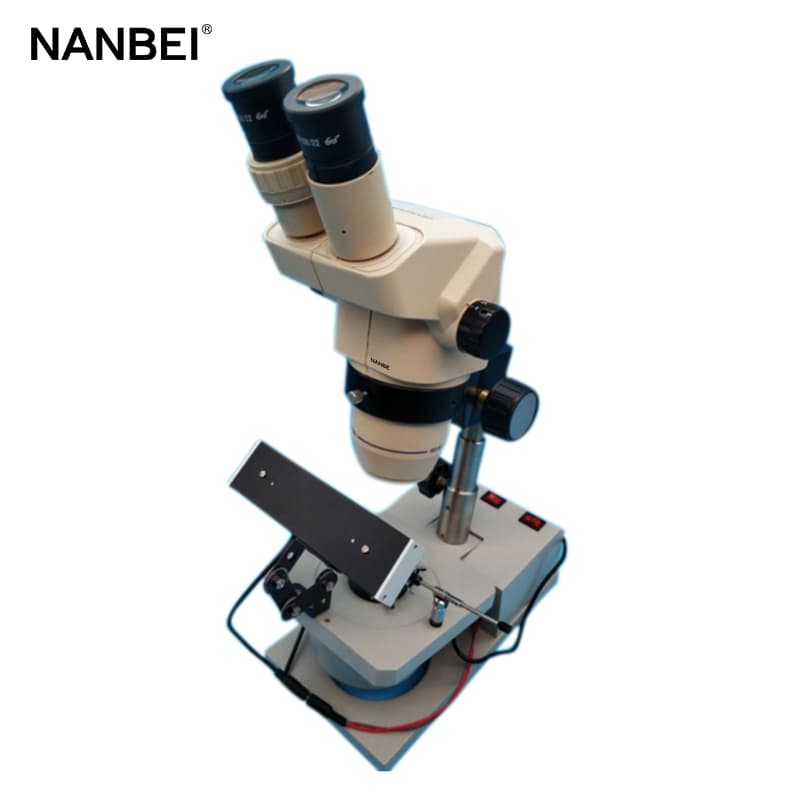

GL-99TI Stereo Microscopes
The high performance GL Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort. Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the GL is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.
Standard configurations
| Zoom ratio | 1:7 |
| Objective zoom range | 0.65X-4.5X |
| Eyepice | SWF10X/22mm |
| Working distance | 103mm |
| Interpupillary distance adjustment | 55mm-75mm |
| Binocular head | inclination of 45。or 60。 |
| Diopter adjustment | ±5 diopter |
| Optical Body Rotation | 360。 |
 |  |  |
Technical data
Project | Auxiliary Objective | Eyepiece | Working distance(mm) | |||||||
SWF10X | WFl5X | WF20X | WF25X | |||||||
Magnifi-cation | Visual field | Magnifi-cation | Visual field | Magnifi-cation | Visual field | Magnifi-cationn | Visual field | |||
Data | 0.5X | 3.3X-22.5X | 67.7-9.8 | 4.9X-33.8X | 49.2-7 | 6.5X-45X | 40-5.8 | 8.1X-56.3X | 37-5.2 | 163 |
0.75X | 4.9X-33.8X | 45.1-6.5 | 7.3X-50.6X | 32.8-4.7 | 9.75X-67.5 | 26.6-3.8 | 12.2X-84.4X | 24.6-3.5 | 117 | |
1X | 6.5X-4.5X | 33.8-4.9 | 9.8X-67.5X | 24.6-3.5 | 13X-90X | 20-2.9 | 16.3X-112.5X | 18.5-2.6 | 103 | |
1.5X | 9.8X-67.5X | 22.5-3.3 | 14.6X-101.3 | 16.4-2.3 | 19.5X-135X | 13.3-1.9 | 24.4X-168.8X | 12.3-1.7 | 45 | |
2X | 13X-99X | 16.9-2.5 | 19.5X-135X | 12.3-1.8 | 266X-180X | 10-1.4 | 32.5X-225X | 9.2-1.3 | 40 | |
