Universal Stand
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:DXT05A
Application:
TL Series Monocular Stereo Microscopes DXT05A
The TL Series of monocular zoom microscopes are designed for use with CCD and digital video cameras, to present an image of the material being examined to a computer or television monitor. They are high resolution, high contrast systems with a zoom ratio of 7:1. These models are used most often in manufacturing applications, but can also be utilized in education, machine vision, medical device inspection and scientific research. Although the TL20 and TL30 are illustrated on our standard TL base, they can also be adapted to a variety of Universal and Standard Frame designs.
Technical data
| Model | DXT05A |
| Zoom radio | 7:1 |
| Objectives zoom ranges | 0.65X-4.5X |
| Working distance | 90mm |
| Focus range | 47mm |
| C-CCDdistance of plckup device | 17.53mm |
| avaliable 1/2" 1/3" 2/3" CCD | |
| 1/3"CCD，Diameter of visual field:9.3-1.3mm | |
| Model | DXT05 |
| Zoom radio | 6:1 |
| Objectives zoom ranges | 0.5X-3X |
| Working distance | 130mm |
| Focus range | 47mm |
| C-CCDdistance of plckup device | 17.53mm |
| avaliable 1/2" 1/3" 2/3" CCD | |
| 1/3"CCD，Diameter of visual field:12-2mm | |

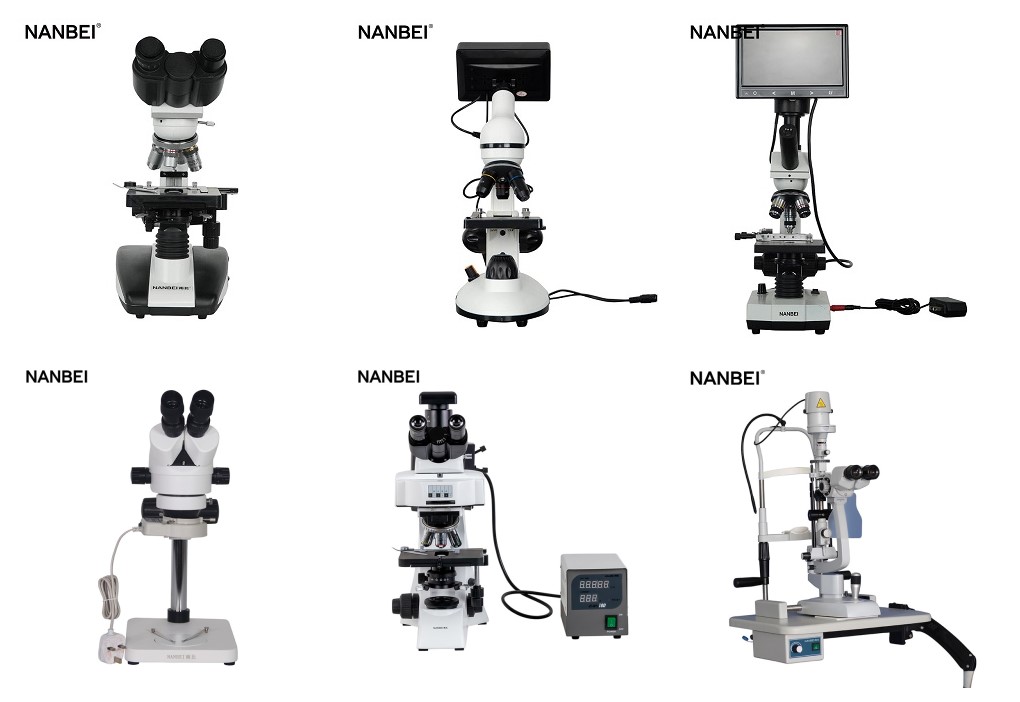

Other types
