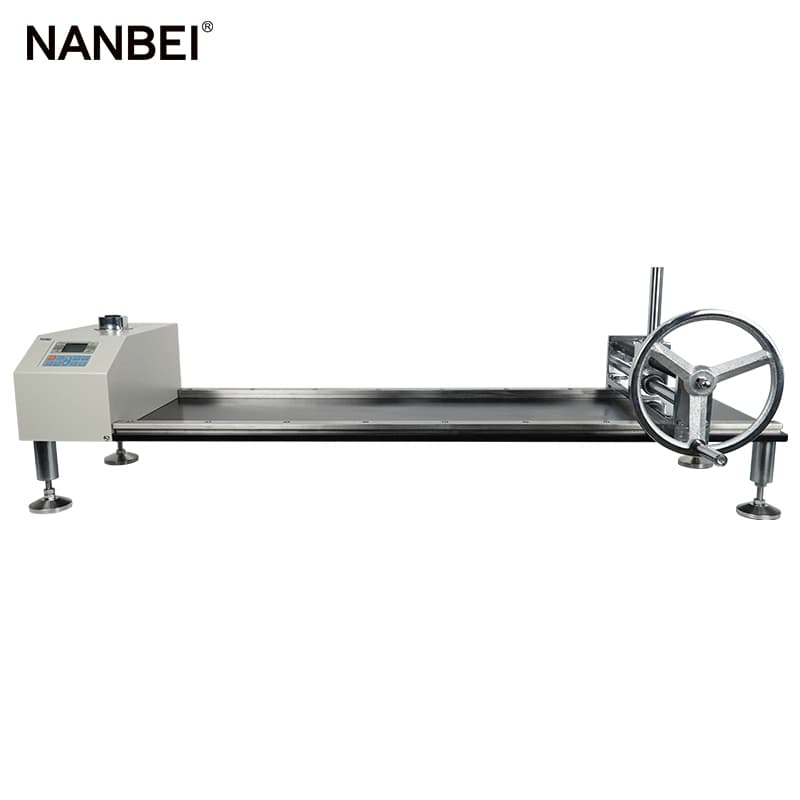

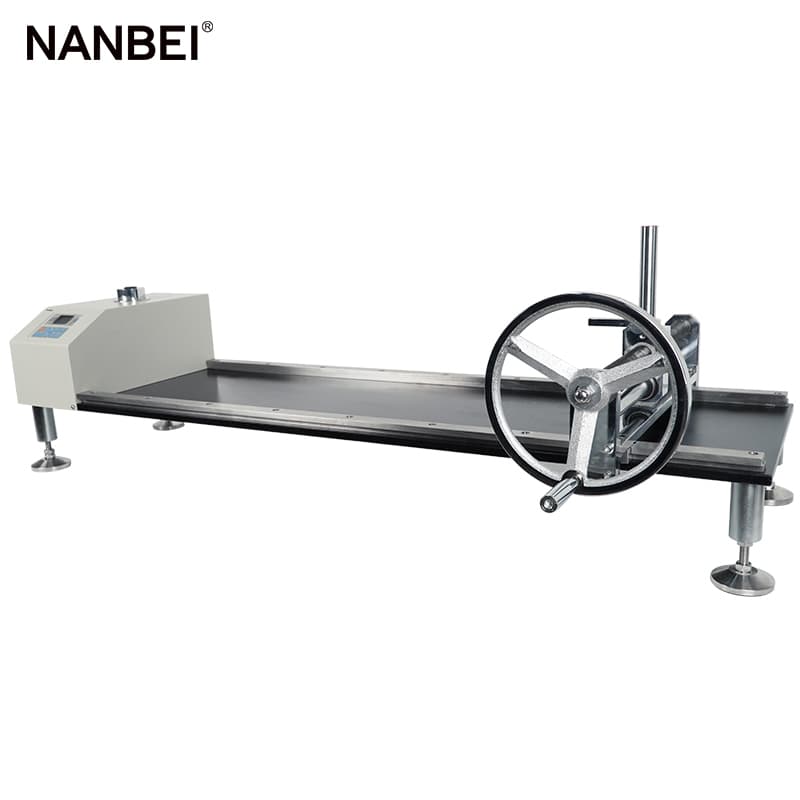

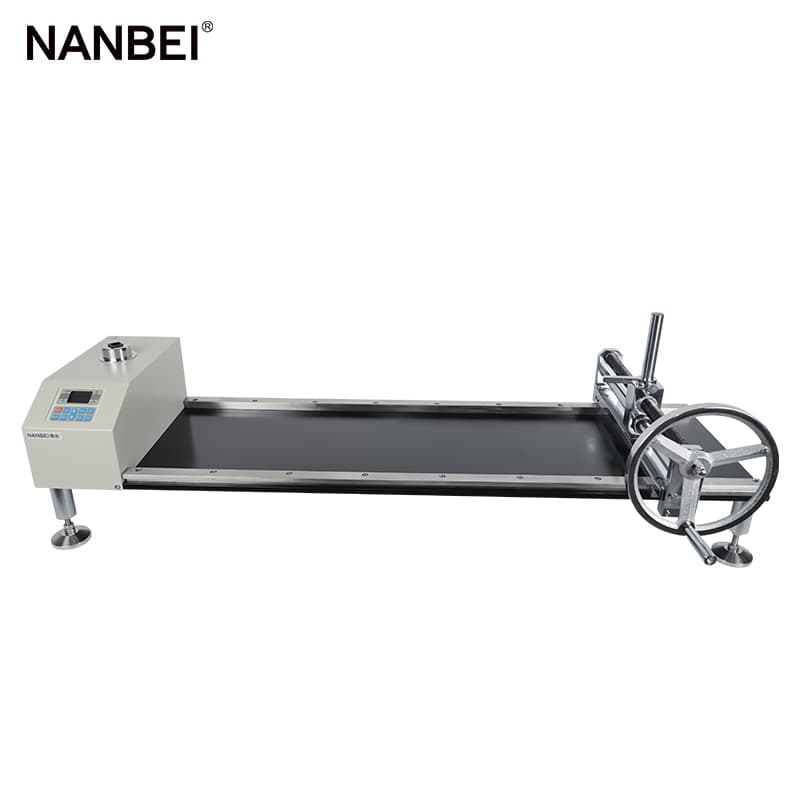

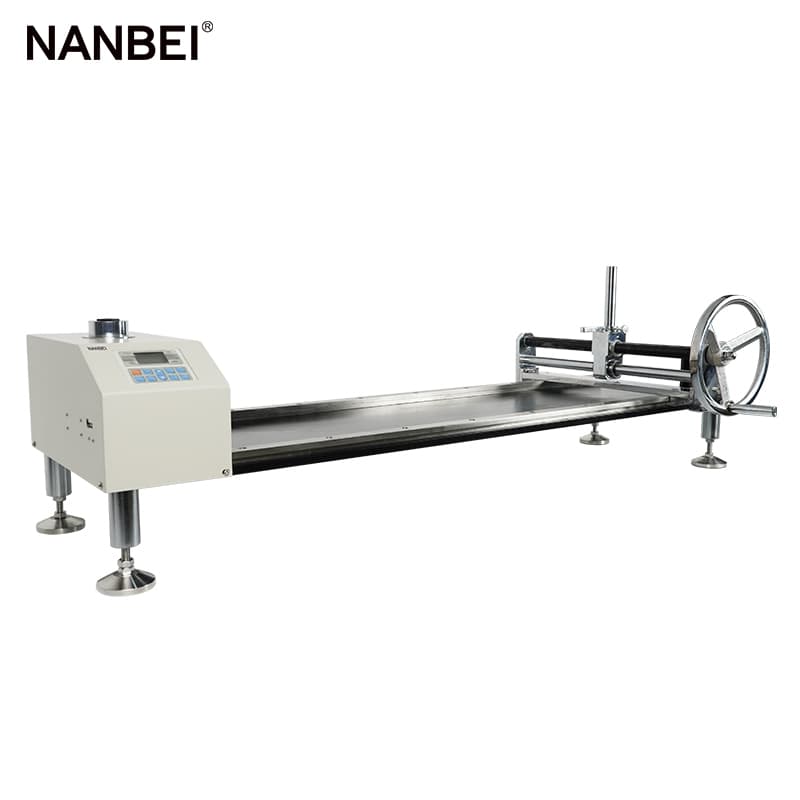

NANBEI NNJ-S Digital Torque Wrench Tester
Function:
Digital Torque Wrench Tester(NNJ-S)is an intelligent multi-functional measuring instrument which
is designed for testing torque wrench. It main used in testing and calibrating various kinds of
Concentration type torque wrench, digital type torque wrench, preset type torque wrench,
torsion screwdriver, screwdriver and all kinds of products involving tighten force instrument.
Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry
and in scientific research and testing industry.
Specifications:
Type Index | NNJ-S- 50 | NNJ-S- 100 | NNJ-S- 200 | NNJ-S- 300 | NNJ-S- 500 | NNJ-S- 1000 | NNJ-S- 2000 | NNJ-S- 3000 | NNJ-S- 5000 | ||
Measuring Range / Division Value | N·m | 50.000 /0.001 | 100.00 /0.01 | 200.00 /0.01 | 300.00 /0.01 | 500.00 /0.01 | 1000.0 /0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 | |
Kg·cm | 510.52 /0.01 | 1021.0 /0.1 | 2042.0 /0.1 | 3063.1 /0.1 | 5105.2 /0.1 | 10210 /1 | 20420/1 | 30630/1 | 51051/1 | ||
Ib·in | 443.11 /0.01 | 886.2 /0.1 | 1772.4 /0.1 | 2658.6 /0.1 | 4431.1 /0.1 | 8862 /1 | 17724/1 | 26586/1 | 44311/1 | ||
Product size | 760mm×420mm×370mm | 1100mm×420mm×370mm | |||||||||
The testing length range | 150mm～670mm | 150mm～1010mm | |||||||||
Width stroke | 162mm | 162mm | |||||||||
Height stroke | 80mm | ||||||||||
Precision | ±1% | ||||||||||
Peak Value Sampling Frequency | 2000HZ | ||||||||||
Power | 7.2V 1.2V×6 Ni-MH Battery group | ||||||||||
Charging time | 4～6 hours | ||||||||||
Continuous using time of battery | About 10 hours | ||||||||||
Battery life | ≥300 times | ||||||||||
Net Weight | 50Kg | 65Kg | |||||||||
Power adapter | Input：AC 180~240V 50/60HZ output：DC 12V 1000mA | ||||||||||
 |  |
 |  |
