Flammable Material Industrial Safety Cabinets
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:SC4500/SC4500R SC9000/SC9000R
Application:

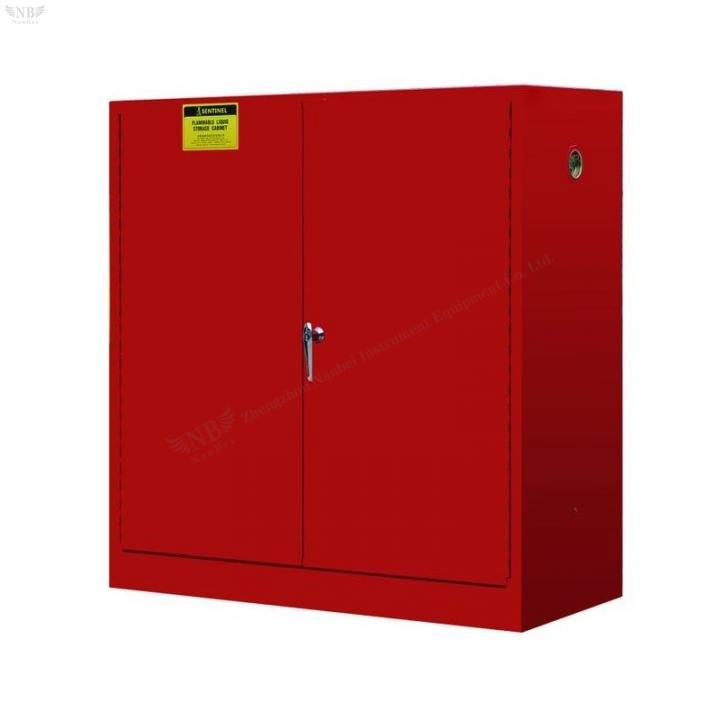

Flammable Material Industrial Safety Cabinets (Red)
SC4500/SC4500R
Dimension: 1650(H)*1090(W)*460(D)mm 64.96″(H)*42.91″(W)*18.11″(D)
Inner size: 1550(H)*1010(W)*375(D)mm 61.02″(H)*39.76″(W)*14.76″(D)
Packing size: 1820(H)*1150(W)*540(D)mm 71.65″(H)*45.28″(W)*21.26″(D)
N.W.: 138KG G.W.: 158KG
Capacity: 45 gallons or 170 liter
No. of shelves: 2
Door type: Dual/Manual | SC9000/SC9000R Dimension: 1650(H)*1090(W)*860(D)mm 64.96″(H)*42.91″(W)*33.86″(D)
Inner size: 1550(H)*1010(W)*775(D)mm 61.02″(H)*39.76″(W)*30.51″(D)
Packing size: 1820(H)*1150(W)*920(D)mm 71.65″(H)*45.28″(W)*36.22″(D)
N.W.: 190KG G.W.: 210KG
Capacity: 90 gallons or 340 liter
No. of shelves: 2
Door type: Dual/Manual |
The high-tech SENTINEL safety cabinet complys with OSHA standard, made in accordance with the requirement of NFPA clause No. 30 for storage of flammable and hazardous chemical material.
Features
1.SENTINEL safety cabinet is designed with double-deck steel plate structure, having a gap of 40mm to maximize the fireproof capability.
2.High quality cold roll steel plate is used to intensify the shield of cabinet for a better fireproof function.
3.The leakproof liquid cell at the bottom of cabinet with the height of 50mm could greatly prevent the chemical liquid from leakout.

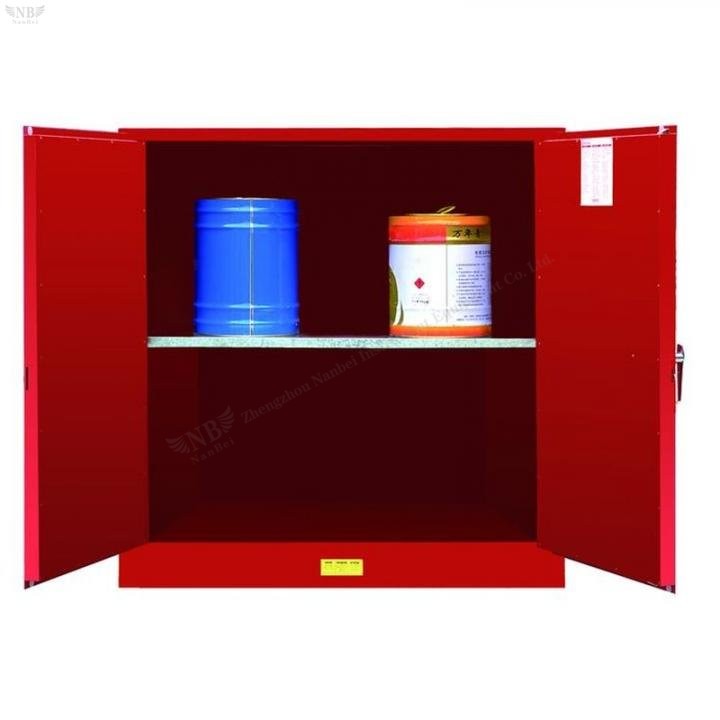

4.With special corrosion-proof and leakproof galvanized shelf. The maximum load can up to 400lbs(180kg).
5.Durable and non-lead epoxy resin paint is painted both sides to maximize the anti-chemical ability.
6.Three-language for the clear and corrosion-proof label sticked on the cabinet.
7.Dual vents with built-in flash arresters strategically installed at both sides of the cabinet.
8.With 4 adjustable horizontal supports to guarantee the stability of the cabinet.
9.Construction of cabinet in according to the requirement of OSHA. Cabinet also provided with earthing socket for easy earthing installation.
Function
Yellow for flammable liquids
Red for combustible liquids
