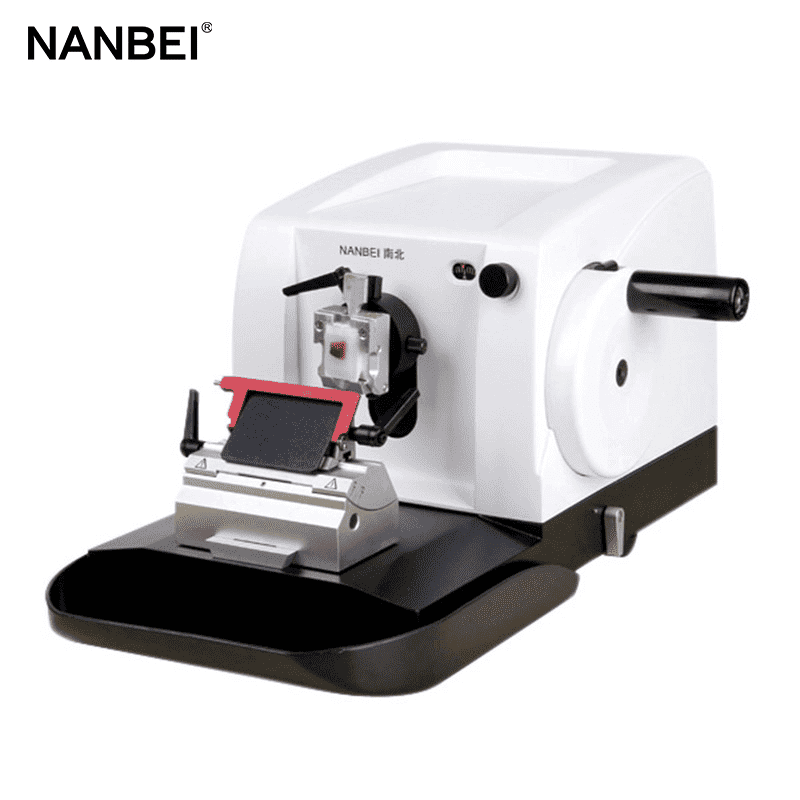

YD-315 Rotary Microtome

Specification information :

key components such as  guide rail ,screw mandrel,Ratchet rod are import from Japan. The Rotary microtome YD-315  is ideal for most routine histology, biological and industrial needs. High precision & stability ensures exact reproducible section quality in wax and plastic embedded sections.

Product specifications :

• New special and improved blade carrier which Non-stick with tissue section in surface

• High precision specimen feed

• Universal cassette clamp and standard specimen clamp

• The hand wheel can be locked in any position or highest position , The dual fail-safe control system is safe and reliable

• It adopt the special blade Carrier , it is more safe and convenient to use the disposable blade directly . good durability and long service life

• Smoothly running hand wheel

• Spacious, integrated section waste tray

• One New coming Special Blade carrier can use both of High and Lower Disposable Blade (Optional Accessories)

Technical Data:

• Section thickness range: 0- 60um

Setting values :

                From 0-2 um in 0.5 um –increments

                Form 2-10um in 1 um-increments

                Form 10-20 um in 2 um-increments

                Form 20-60um in 5 um-increments

• Horizontal specimen stroke :28 mm

• Vertical specimen stroke : 60mm

• Precision error: ± 5%

• Sample orientation:8°along the X-Y-axis,rotable 360°

• Maximum section size: 50 × 45mm

• Dimensions incl. tray (L/T/H)：300mm（L）X570mm（W）X270mm（H）

• Net weight:34kg
