Low speed Large Capacity Centrifuge
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NBR8M
Application:

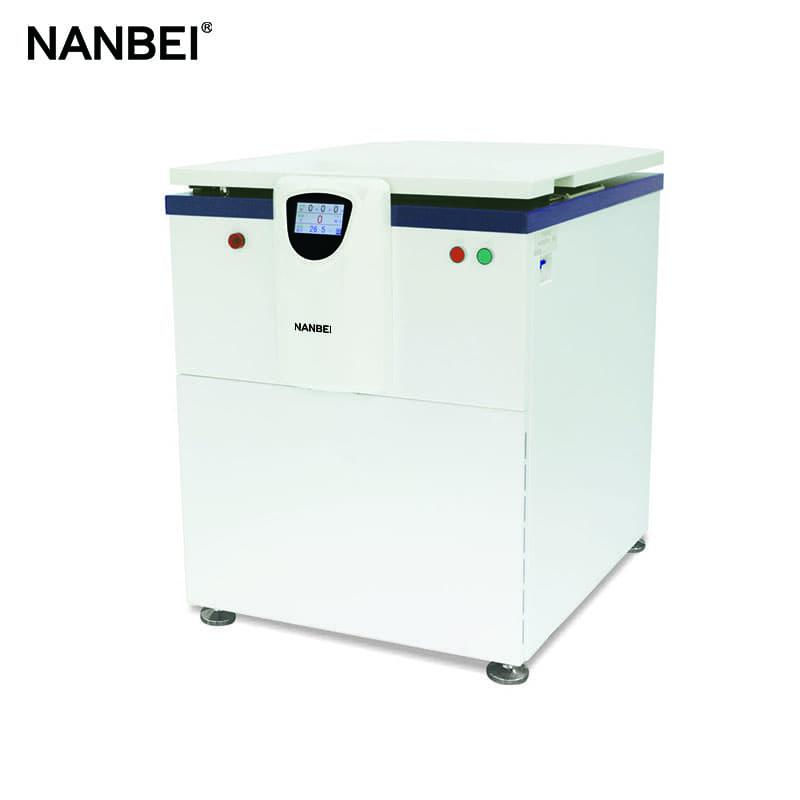

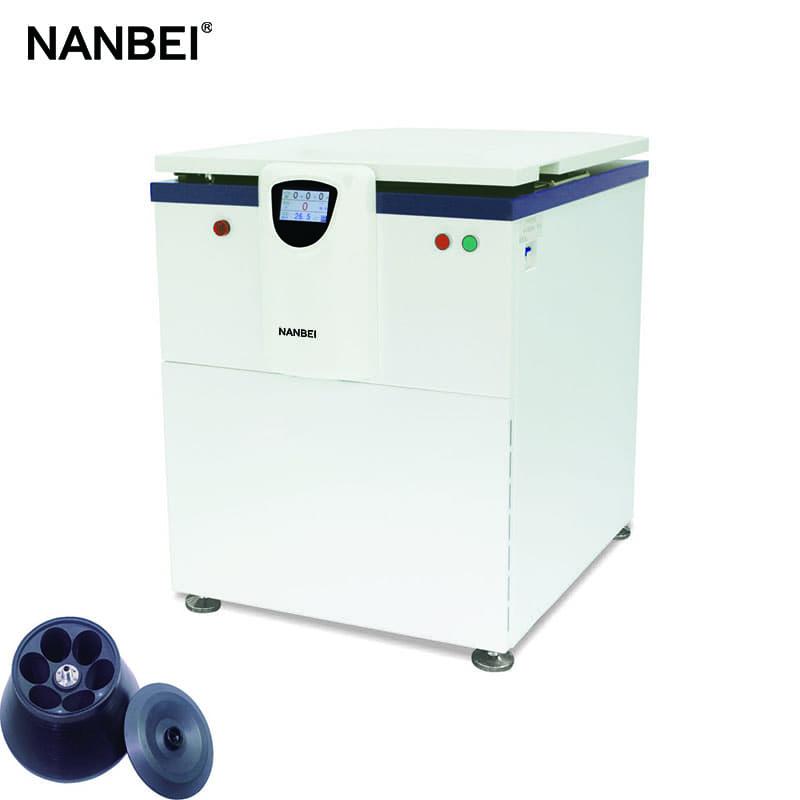

NBR8M Low-Speed Large-Capacity Refrigerated Centrifuge
Features:
AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.
Imported variable frequency drive system and automatic control system to ensure steady and reliable operation.
Import compressor unit is used for the refrigeration system which allows free temperature adjustment and achieves high-precision temperature controls and reduced noise.
France-based Tecumseh's compressor unit is used for the refrigeration system which allows free temperature adjustment and achieves high-precision temperature controls and reduced noise.
Maximum capacity 6x1000ml ,swing rotor.
Multiple protections such as overheat,hypervelocity,electronic locking and imbalance.
Metallic structure with a stainless steel cavity,hence strong and durable.
Intelligent interface featured by a TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation one.
With 16 operation programs to be set by the user and the control parameters of the rotor to be modified at any time.
Operations can be programmed,10 levels of speed-up and speed-down time limits for the user to choose freely.
Can indicate the ascending and declining curves of the rotor ,the centrifugal integral curves and the temperature curves.
Parameters:
| Model | NBR8M |
| Max Capacity | 6×1500 ml |
|
Max Speed（r/min） | 8000 |
|
Max RCF（×g） | 11260 |
| Speed precision | ±50r/min |
| motor | AC Motor |
| Refrigeration system |
Import fluoride-free compressor and control valve（R404a） |
| Control way |
PC control |
| Operation programe |
16 |
| Temp.control range | -20℃～+40℃ |
| Temp.precision |
±1℃ |
| Timer range | 0-99h59min |
| Total power | 4.0 KW |
| Power | AC220 V/50 Hz 30A |
| Noise | <68dB(A) |
|
Dimension （L×W×H） |
840×730×950 mm |
| weight | 270 Kg |

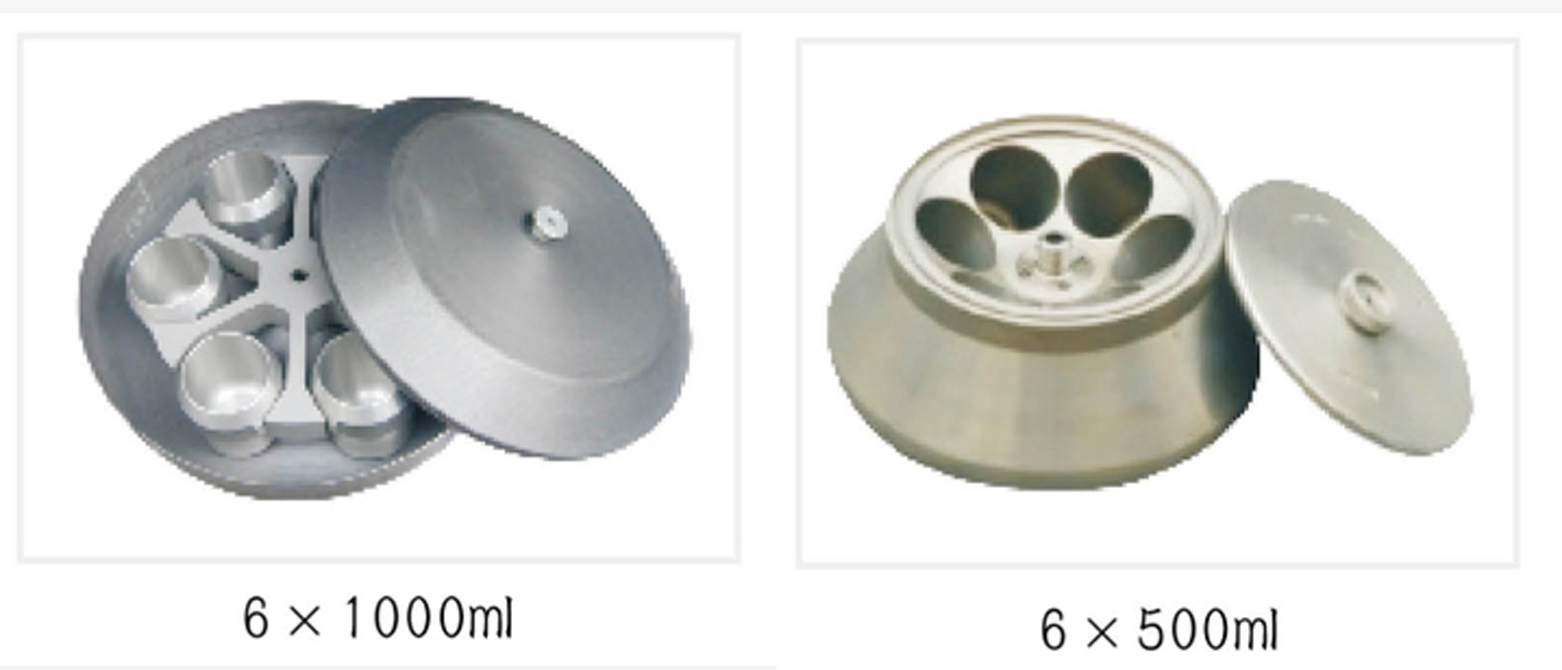

Model | capacity | NBR8M | |
Speed | RCF | ||
Angle rotor | 6X500ml | 8000 | 11260 |
Swing rotor | 6X1000ml | 4200 | 5100 |
4X1000ml | 4000 | 4050 | |
