NBM-12L Super-Capacity Refrigerated Centrifuge,6*2400ml,Lab Centrifuge Machine

NBM-12L Super-Capacity Refrigerated Centrifuge,6*2400ml,Lab Centrifuge Machine

Brand:NANBEI

Model:NBM-12L

Application:

CONTACT NOW Chat Now

product details

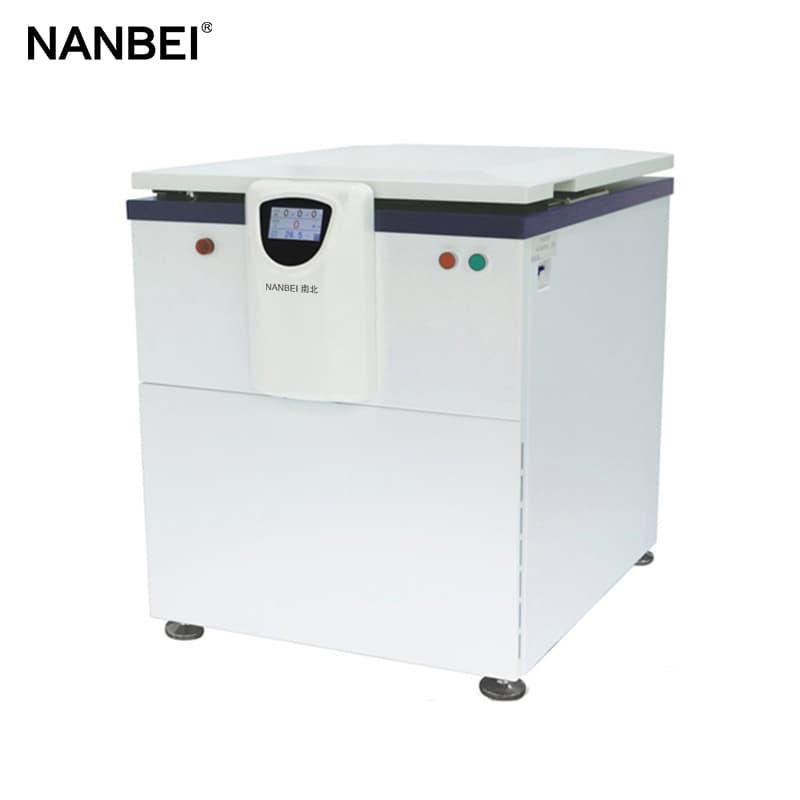

NBM-12L Super-Capacity Refrigerated centrifuge ,6*2400ml,Lab Centrifuge machine

Features:

AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.

Imported variable frequency drive system and automatic control system to ensure steady and reliable operation.

Import compressor unit is used for the refrigeration system which allows free temperature adjustment and achieves high-precision temperature controls and reduced noise.

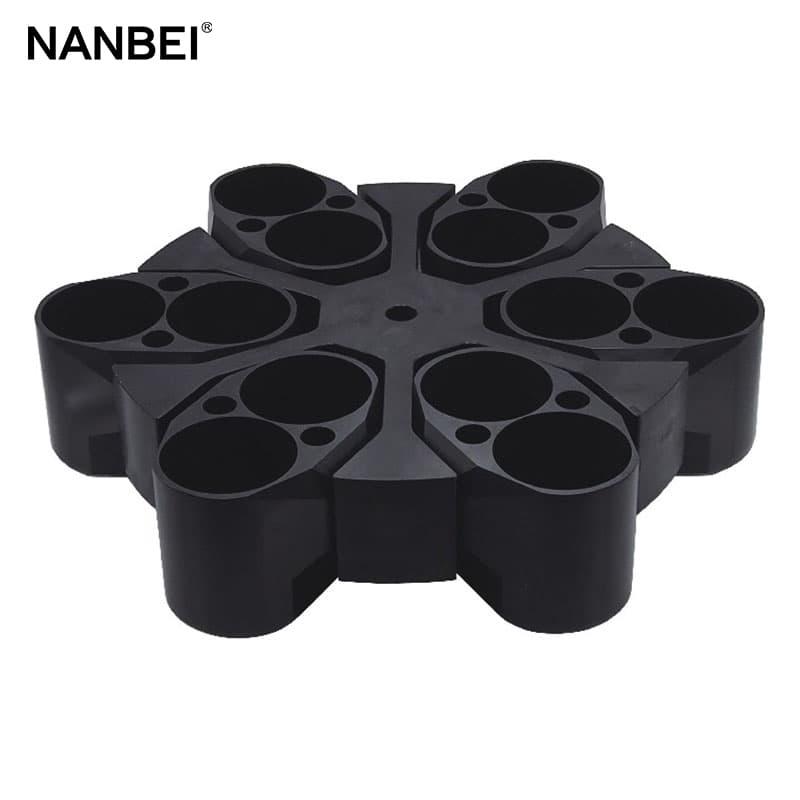

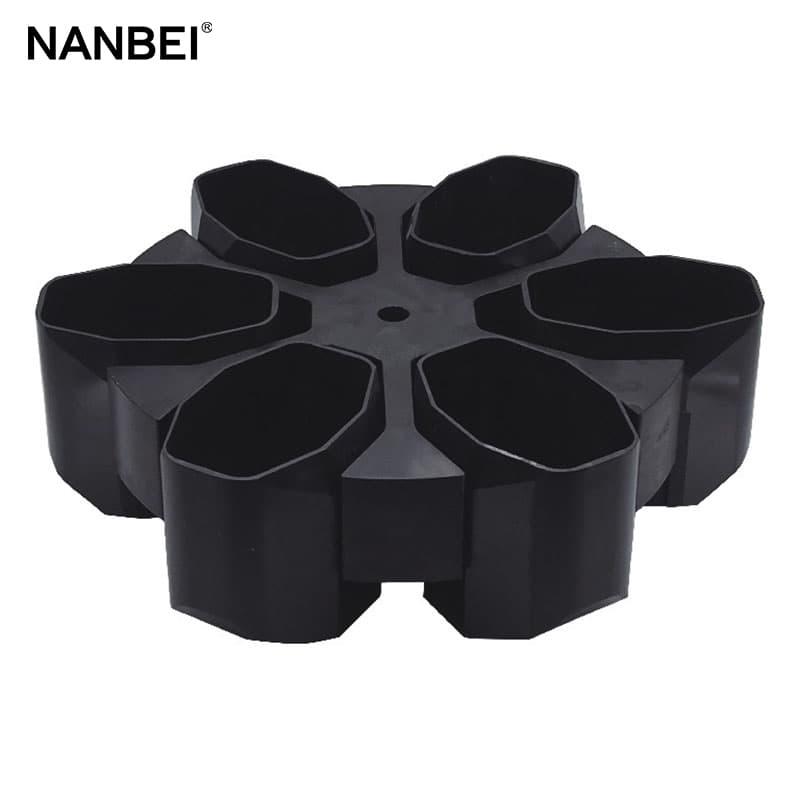

With the capacity 6x2400ml or able to separate 18 bags of 400m whole blood at a time.

Multiple protections such as overheat,hypervelocity,electronic locking and imbalance.With four protective layers of bushings to achieve secure and reliable operation as well as personnel and equipment safety.

Intelligent interface featured by a TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation one.

With 16 operation programs to be set by the user and the control parameters of the rotor to be modified at any time.

Operations can be programmed,10 levels of speed-up and speed-down time limits for the user to choose freely.

Can indicate the ascending and declining curves of the rotor ,the centrifugal integral curves and the temperature curves.

Parametres:

Model	NBM-12L

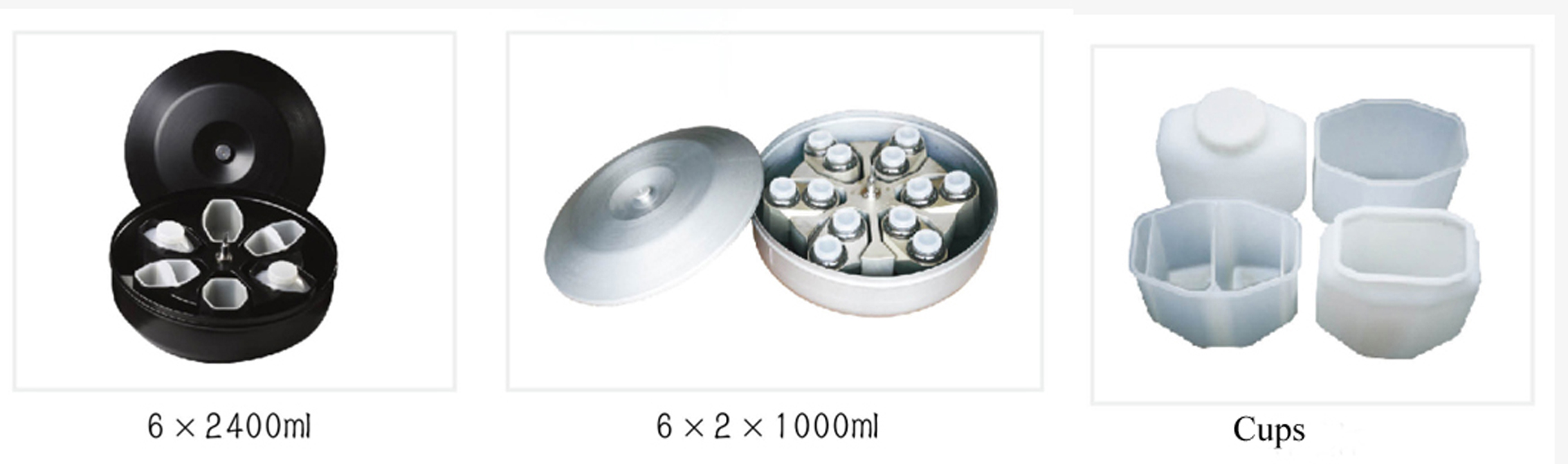

Max Capacity	6X3X400mlblood bag or 6×2400ml
Max Speed（r/min）	4600 r/min
Max RCF（×g）	7060×g
Speed precision	±50r/min
Motor and drive	Frequency motor，micro control，direct driver
Refrigeration system	Import fluoride-free compressor and control valve（R404a）
Operation programe	16
Temp.control range	-20℃～+40℃
Temp.precision	±1℃
Timer range	0-99h59min
Total power	6KW
Power	AC220V 50Hz
Noise	＜68dB（A）
Dimension （L×W×H）	860×960×1200mm
weight	450kg
