Low speed Large Capacity Centrifuge
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NBL6R
Application:

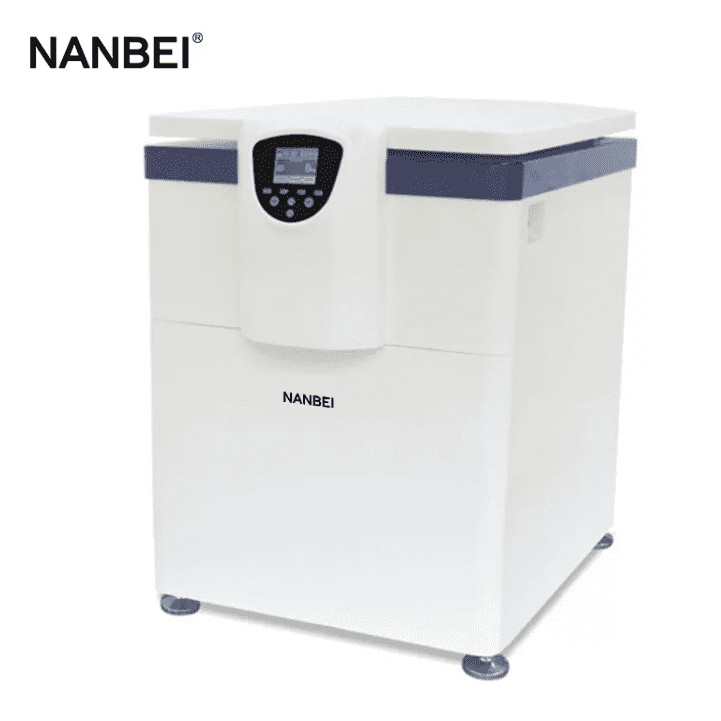

NBL6R Free Standing Type Low-Speed Refrigerated Centrifuge
TLR series table-type large capacity refrigerated centrifuge,up to 4*750ml,is widely applied in biochemistry product,science and research,teaching,food safety,health and medicine,blood station,hospital,molecular biotechnology,environmental protection.
Features:
Use AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.
Controlled by an SCM of Microchip's dsPIC30F Series and driven by a special driver module of FAIRCHILD's FSBB30CH Series to ensure the circuit's reliability.
With TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation ones.
The design of the whole machine is in line with the ergonomics.
With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly.
With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.
Able to provide 20 kinds of operating modes for the user to programme and use freely.
10 levels for speed-up /speed -down control.
Maximum rotation speed:8000r/min Maximum capacity:4x750ml.
Parameters:
Model | NBL6R |
Max Capacity | Swing 4×750ml |
Max Speed（r/min） | 6500 |
Max RCF（×g） | 4800 |
Speed precision | ±50r/min |
Refrigeration system | Import fluoride-free compressor and control valve（R404a） |
Temp.control range | －20℃～+40℃ |
Temp.precision | ±1℃ |
Operation programe | 20 |
Motor and drive | Frequency motor，micro control，direct driver |
Total power | 2.0kw |
Timer range | 0-99h59min |
Noise | ≤65dB |
Identify rotor | Automatic function |
weight | 150kg |
Dimension（L×W×H） | 710×560×770mm |
| Model | Capacity | NBL6R | |
|
speed |
RCF | ||
| Angle rotor | 12×10 ml | 6500 | 3920 |
| Swing rotor | 4×750 ml | 4000 | 3500 |
| Swing rotor | 4×500 ml（round cup） | 4000 | 3780 |
| Adapter | 4×250 ml/300 ml | ||
| 4×100 ml | |||
| 12×50 ml | |||
| 36×15 ml | |||
| 72×10 ml | |||
| 72×5 ml | |||
| Swing rotor |
148×5 ml/2 ml （vacuum tube） | 4000 | 2900 |
|
48×5 ml/2 ml （vacuum tube） | 4000 | 2950 | |
|
76×5 ml/2 ml （vacuum tube） | 4000 | 3100 | |
| 16×15 ml | 4000 | 4800 | |
| 24×10 ml | 4000 | 2810 | |
| 4×100 ml | 5000 | 4800 | |
| 8×50 ml | 4000 | 2810 | |
| 32×15 ml | 4000 | 2810 | |
| 32×10 ml | 4000 | 2810 | |
| Swing microplate rotor |
2×2×96 hole | 4000 | 2360 |
