DDL6 Large Capacity Refrigerated Centrifuge
DDL6 Large Capacity Refrigerated Centrifuge

DDL6 Large Capacity Refrigerated Centrifuge

Brand:NANBEI

Model:DDL6

Application:

product details

DDL6 large capacity refrigerated centrifuge

Application:

Widely used in the area of blood station, pharmaceutical factory, biochemistry, biological products and so on. It is the ideal instruments for blood separation, protein precipitation and cell collection.

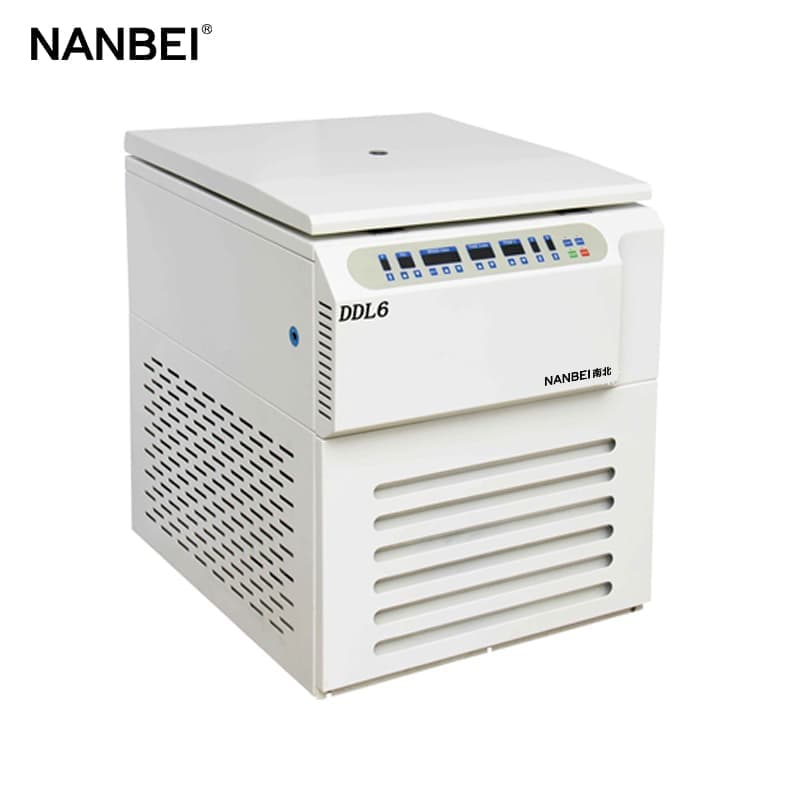

DDL6立式冷冻 (1).jpg

Features:

1.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
2.Brushless DC motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
3.Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
4.Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
5.Microprocessor control, speed, time, temperature and RCF in operation, speed rising and reducing quick, operate simply.
6.10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.

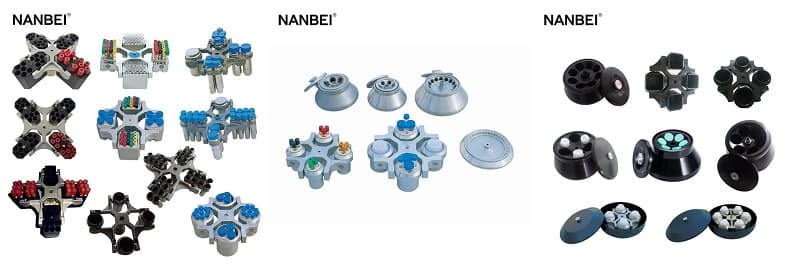

7.There are many rotors for your choice, adapters are available by experiment requirements.
8.3 tiers protection steel cover, safe and reliable.

未命名 (1).jpg

Technical Parameters:

Max speed

6000r/min

Max RCF

6600*g

Time range

0~99H59min

Speed accuracy

±50r/min

Weight

184KG

Dimension

865*650*830mm

capacity

4*1000ml

Noise

≦55dBA

Packaged weight

204KG

Packaged dimension

1000*760*1385mm

Temperature range

-20~40℃

Temperature accuracy

±1℃

Power

AC110/220V, 50-60HZ,20A

Rotor identification

Automatic identification

Package

wooden box
