30L Rotary Evaporator
30L Rotary Evaporator

30L Rotary Evaporator

Brand:NANBEI

Model:NBRE-30L

Application:

product details

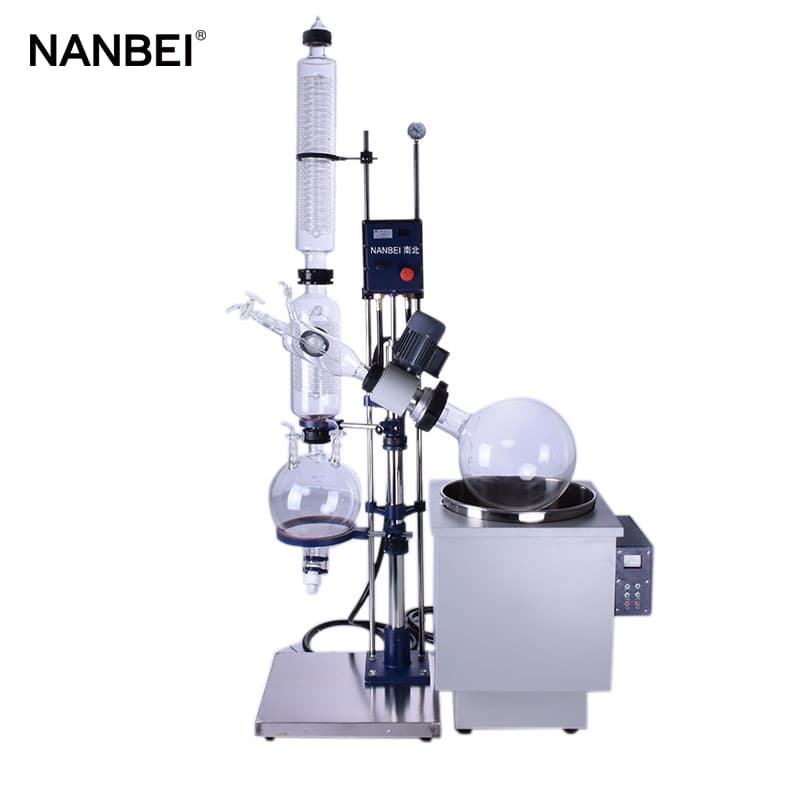

30L Rotary Evaporator

NANBEI Rotary Evaporator widely used in laboratories. Suitable for reflux operation, rapid evaporation of a large number of solvents, concentration of trace components, and reaction processes that require stirring. The rotary evaporator system can be sealed and decompressed to 400 to 600 mm Hg; the solvent in the distillation flask is heated by a heating bath, and the heating temperature can be close to the boiling point of the solvent; at the same time, it can be rotated at a speed of 50 to 160 rpm The solvent is formed into a thin film, and the evaporation area is increased. In addition, under the action of a high-efficiency cooler, the hot vapor can be quickly liquefied, which accelerates the evaporation rate.

01-1912261045090-L (1).jpg

Working principle:

Through electronic control, the flask is rotated at a constant speed at the most suitable speed to increase the evaporation area. The evaporation flask was brought to a negative pressure state by a vacuum pump. The evaporation flask is heated at constant temperature in a water bath while rotating, and the solution in the bottle is heated and diffused and evaporated in the rotation flask under negative pressure. The rotary evaporator system can be sealed and decompressed to 400 to 600 mm Hg; the solvent in the distillation flask is heated by a heating bath, and the heating temperature can be close to the boiling point of the solvent; at the same time, it can be rotated at a speed of 50 to 160 rpm The solvent is formed into a thin film, and the evaporation area is increased. In addition, under the action of a high-efficiency cooler, the hot vapor can be quickly liquefied, which accelerates the evaporation rate.

H23d6357f12f84a7f94020a77161e4db60 (1) (1).jpg

Parameters:

Power supply voltage

 220V /   50HZ (customizable 220V / 60HZ, 110V / 60HZ)

Motor power

 30W

Lifting power

 15W   1/15

Heating power

 1KW

Rotation speed

 0-120rpm / min

Temperature control range

 room   temperature -99 ℃   (optional oil bath, recommended below 180 degrees)

Temperature control accuracy

 ± 1 ℃

Vacuum degree

 0.098Mpa

Evaporation capacity

 20ml /   min (bath temperature 70 ℃,   raw ethanol)

Host lifting stroke

 0-160   (mm)

Temperature range of glass

 -80-250 ℃

Rotary bottle capacity

 1000ml   Φ 131mm / 24 # standard mouth

Collection bottle capacity

 500ml   Φ 105mm / 24 # standard mouth

Condenser size

 Φ 85 ×   460H (mm) (optional cold trap condenser)

Vacuum suction port size

 29 #

Feeding valve

 19 #   standard port

Pot size and capacity

 Φ 220   × 120H (mm) about 4.5L (optional transparent cover)

Pot shell size

 250L ×   370W × 160H (mm)

Dimensions

 650L ×   380W × 1030H (mm) (after the host is raised)

Packing size

 590L ×   470 × 465H (mm) carton 0.13m 3

Package weight

 21KG

6 (1).jpg
