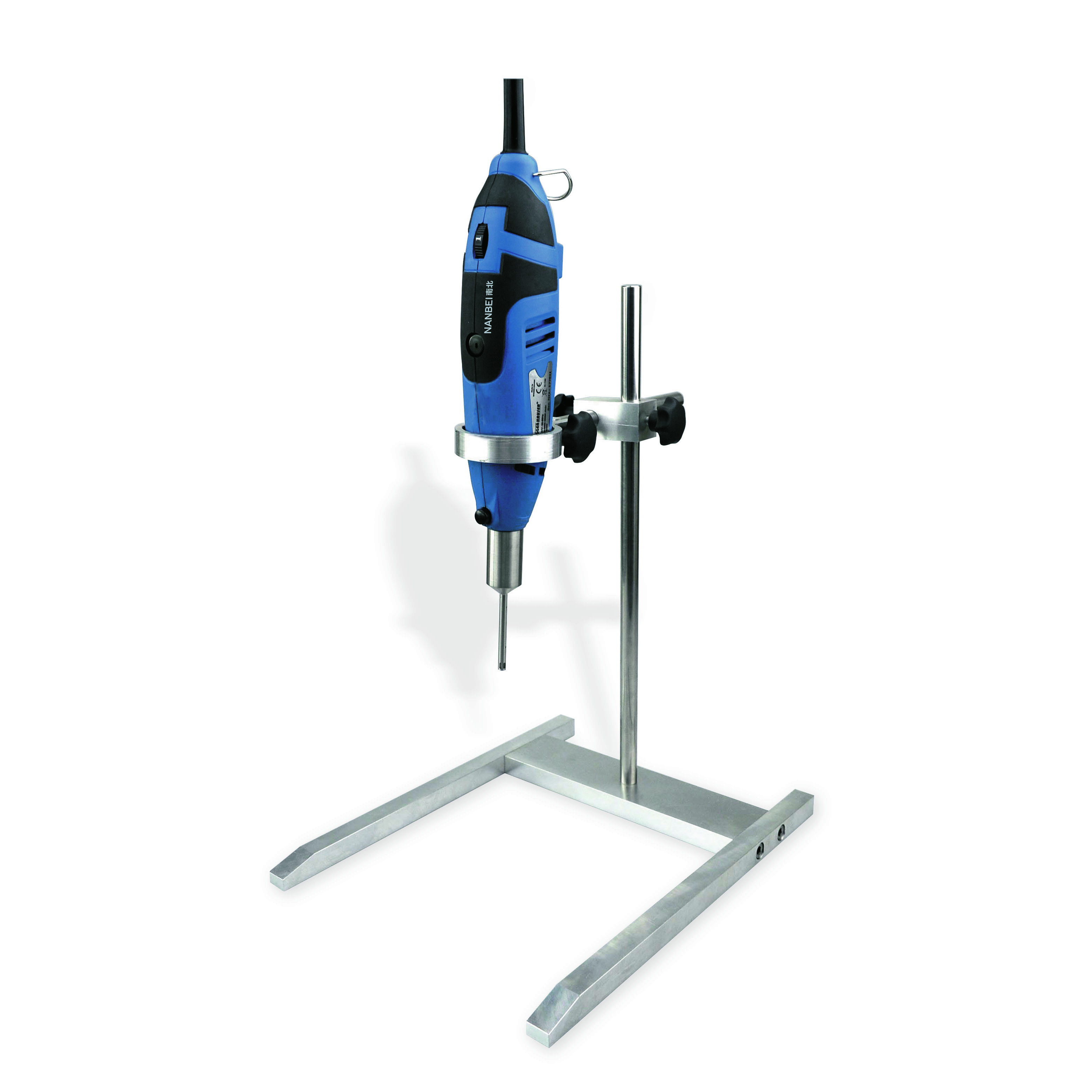

Homogenizers
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
| Specifications | NB-160 |
| Power Supply | 110-120V/60Hz 220-240V / 50-60 Hz |
| Motor Type Universal motor | 160 W AC carbon brush motor |
| Speed Range | 8000-30000rpm |
| Max. Circum. Speed | 6.3-14m/sec |
| Speed Control Dial knob | 10 stage |
| Working Volume [ H 2 O] | 0.1-50mL (Dispersing shaft DS-160/5) |
1-250mL (Dispersing shaft DS-160/10) | |
| Max. Viscosity | 5,000mPas |

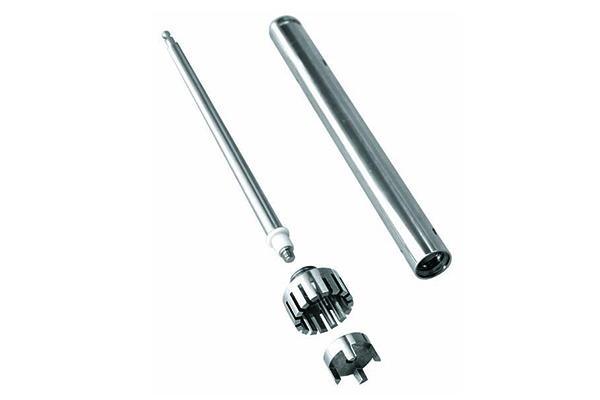

| Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
| Weight | 0.54 kg |
| Dimension [L x W x H] | 46mm x 55mm x 230mm |
| Noise | 72 dB(A) |
| Operating Environment | 0-40 ℃,85% rel. humidity |
| Protection Class | IP20 |
Order Info
| Cat. No. | P/N | Descriptions |

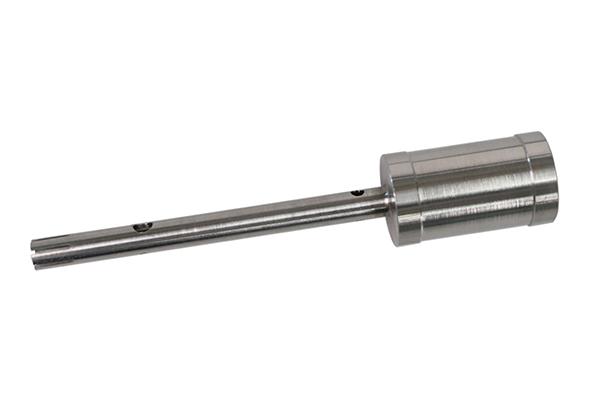

| 18900113 | NBS-160/5 | Dispersing shaft 5mm，for solid/liquid media and volumes from 0.1-50ml |

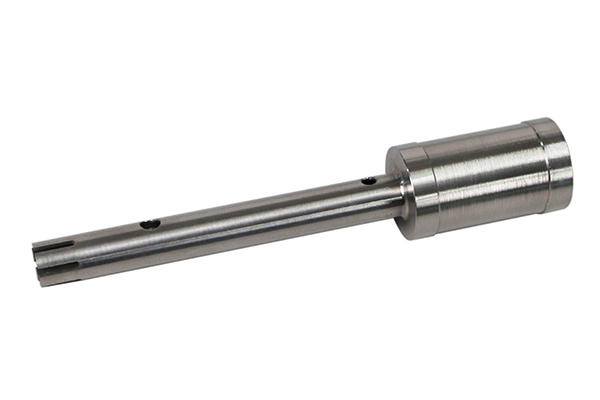

| 18900114 | NBS-160/10 | Dispersing shaft 10mm, for solid/liquid media and volumes from 1- 250ml |
