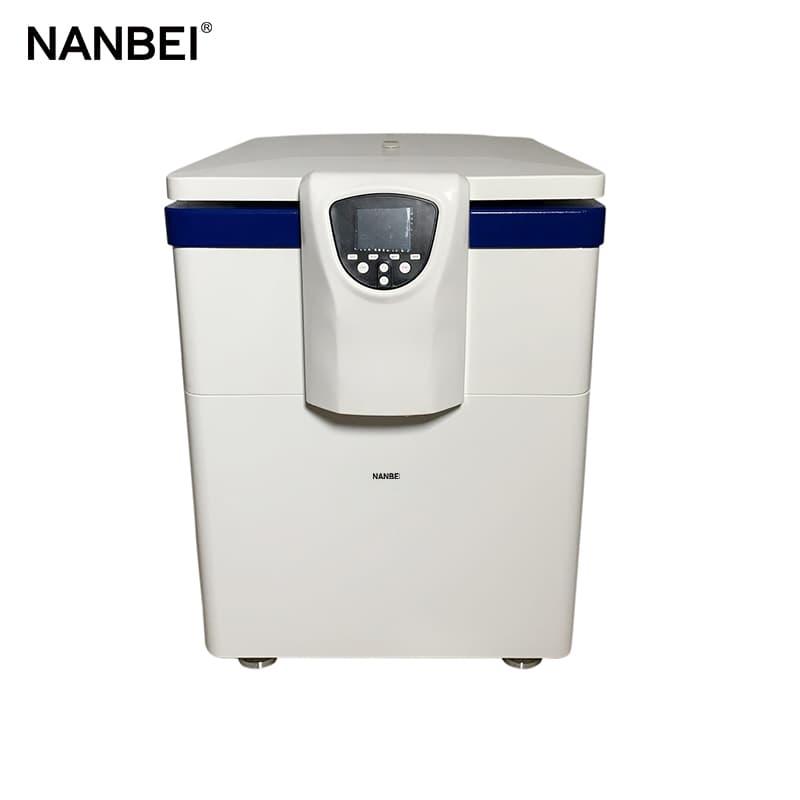

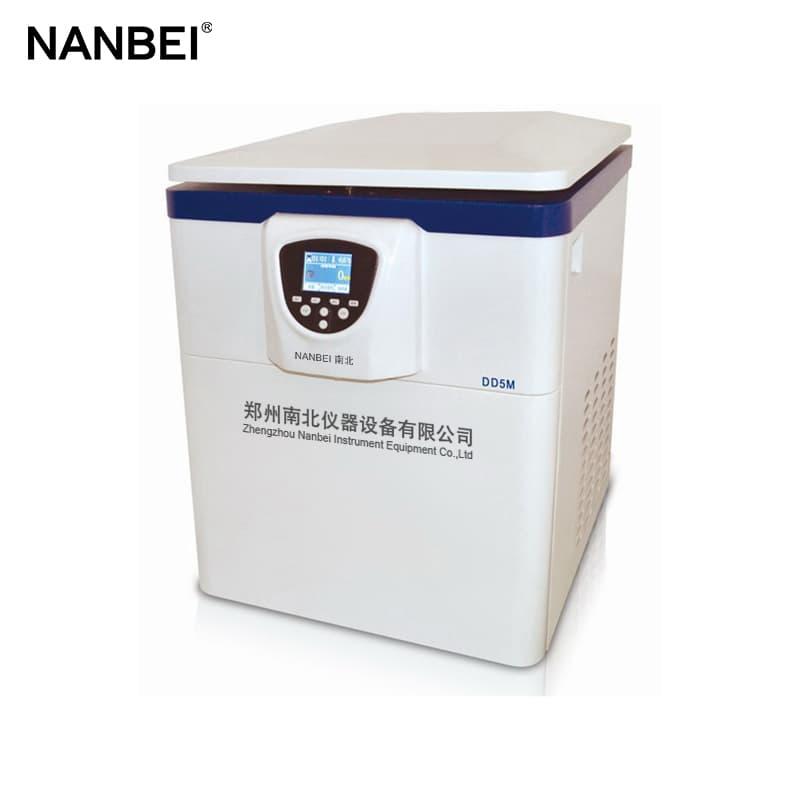

NBD5M Low-speed Large-capacity Centrifuge Blood Plasma Centrifuge

NBD5M Low-speed Large-capacity Centrifuge Blood Plasma Centrifuge

Brand:NANBEI

Model:NBD5M

Application:

CONTACT NOW Chat Now

product details

NBD5M Low-Speed Large-Capacity centrifuge blood plasma centrifuge

Features:

Use AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.

Controlled by an SCM of Microchip's dsPIC30F Series and driven by a special driver module of FAIRCHILD's FSBB30CH Series to ensure the circuit's reliability.

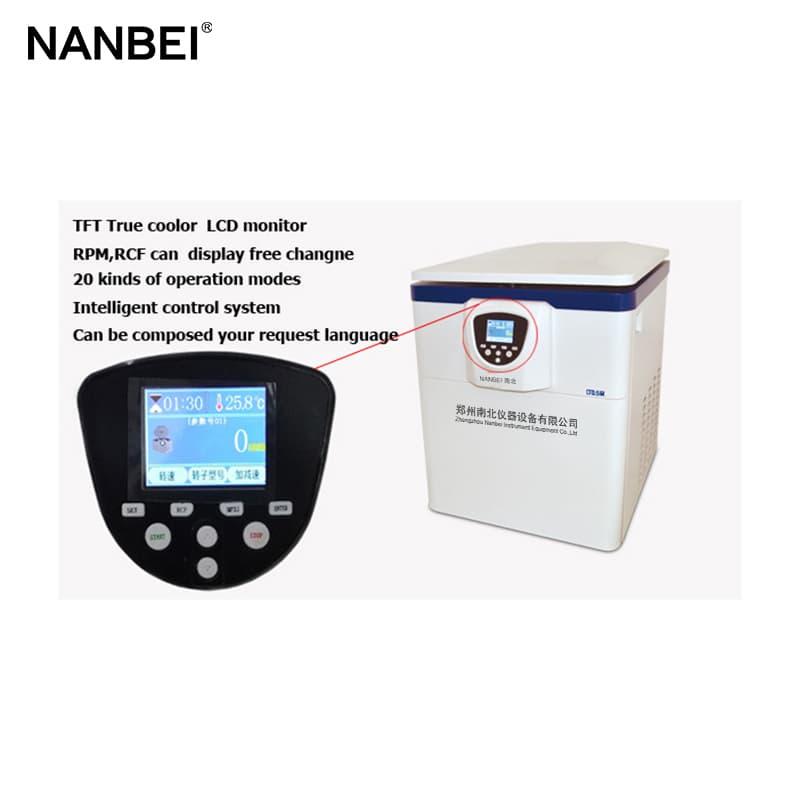

With TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation ones.

The design of the whole machine is in line with the ergonomics.With a streamline design,a complete steel structure and a stainless steel centrifuge cavity.
With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly.

With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.

Able to provide 20 kinds of operating modes for the user to programme and use freely.

10 levels for speed-up /speed -down control.

Maximum rotation speed:8000r/min Maximum capacity:6x500ml.

Parameters:

Model	NBD5M
Max Capacity	6×500 ml
Max Speed（r/min）	5000
Max RCF（×g）	4390
Speed precision	±50r/min
Control and drive system	AC frequency motor,micro-control
Compressor	No refrigeration
Operation programe	20
Temp.control range
Temp.precision
Timer range	0-99h59min
Total power	0.8 KW
power	AC220V 50Hz
Noise	≤65 dB
Dimension （L×W×H）	740×620×900 mm
weight	85 Kg

DD5M (1).jpg

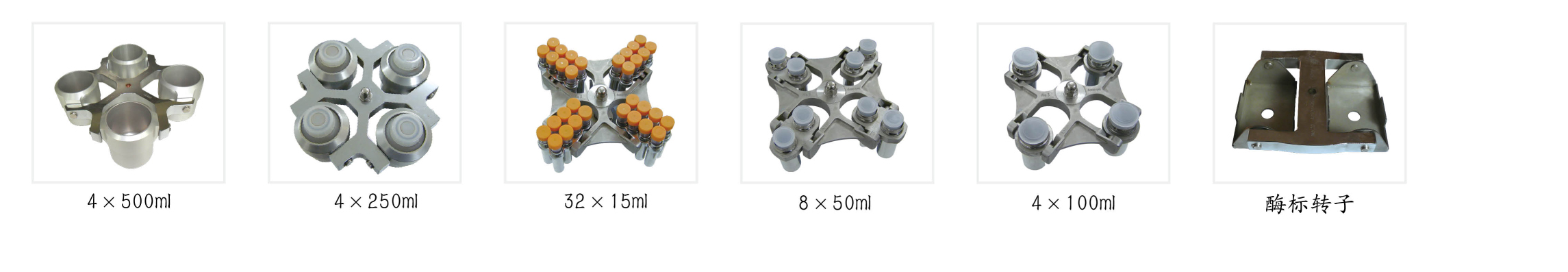

	Capacity	Max speed	Max RCF
Swing rotor	148×7 ml	4000	3780
	6×500 ml	3600	2980
	4×500 ml	4000	3780
	4×250 ml	4000	3600
	4×100 ml	5000	4390
	32×15 mi	4000	2810
	8×50 ml	4000	2810
	48×5 ml	4000	2810
	76×5 ml	4000	2810
Swing micro-plate rotor	2X2X96 hole	4000	2360
