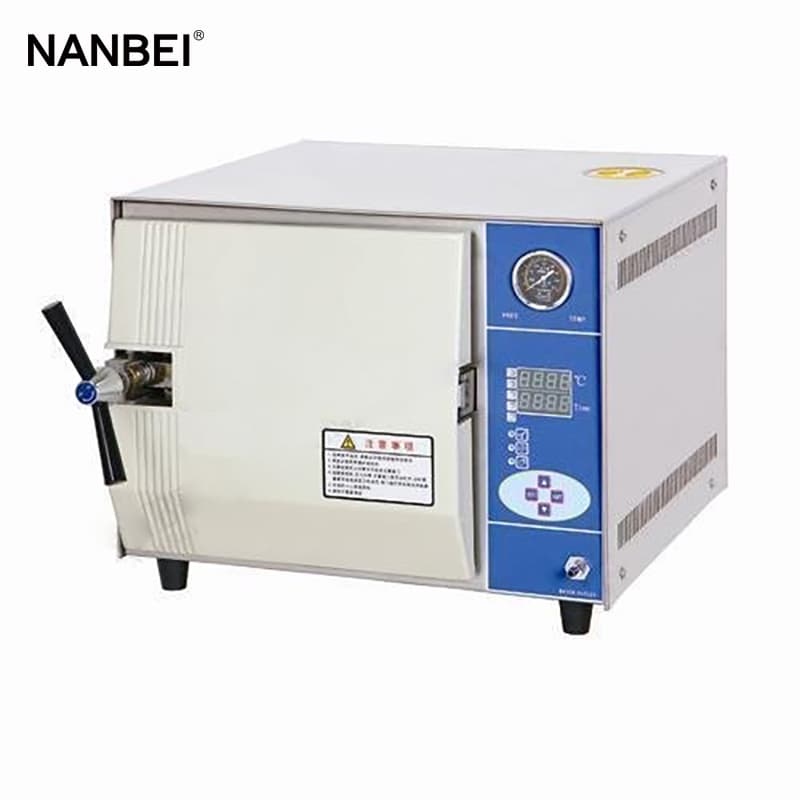

Table Top Steam Sterilizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:TM-XA20D
Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Fully automatic microcomputer table top steam sterilizer
Characteristics:
1.For 4~6 minutes rapidly sterilizing.
2.Digital display of working status,touch type key.
3.With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.
4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5.Exhaust the cool air automatically.
6.Safe protection of water lacking.
7.Door safety lock system.
8.With three stainless steel sterilizing plates.
9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
11.With drying function.
Technical data:
MODEL TECHNICAL DATA | TM-XA20D | TM-XA24D |
Sterilizing chamber volume | 20L（φ250×420 mm） | 24L（φ250×520 mm） |
Maximum working pressure | 0.22Mpa | |
Maximum working temperature | 134℃ | |
Adjustment of temperature | 105-134℃ | |
Timer | 0-99min | |
Chamber temperature equal | ≤ ± 1℃ | |
Source power | 1.5KW / AC220V 50Hz | |
Sterilizing plate | 340×200×30 mm (3 pieces) | 400×200×30 mm (3 pieces) |
Dimension | 480×480×384 mm | 580×480×384 mm |
Package dimension | 700×580×500 mm | 800×580×500 mm |
G. W/N.W | 43/40 kg | 50/45 kg |
