Bench Type Multi-Parameter Meter
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

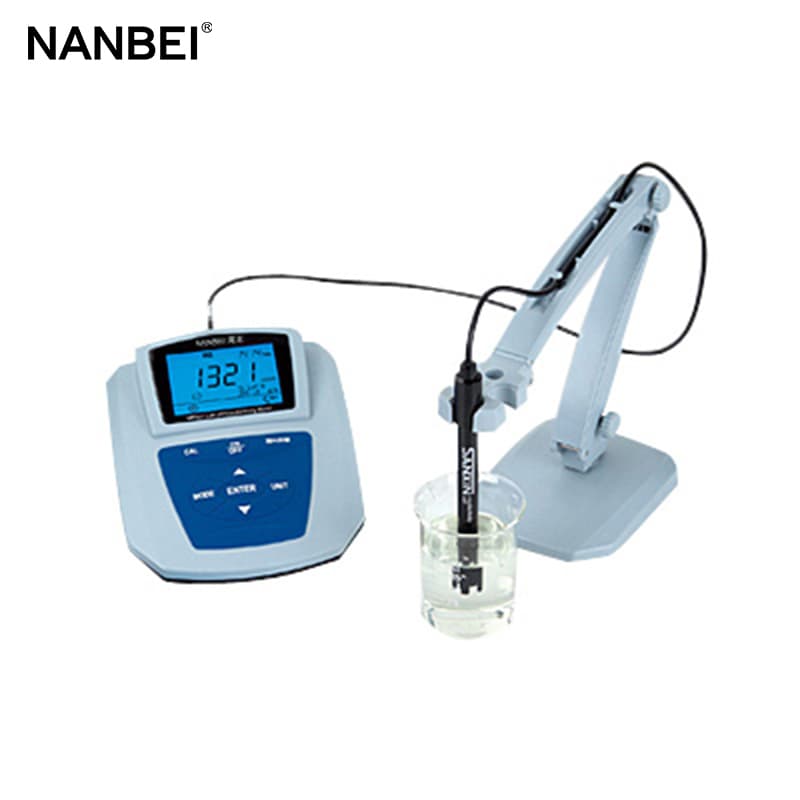

MP521 Lab pH/Conductivity Meter
Introduction
| ●Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc. |
| ● There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode. |
| ● Automatically recognize pH buffer solution. User can choose anyone from three series of standard buffer solutions: Europe & USA series, NIST series and China series. |
| ●Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration. |
| ● Can switch Conductivity, TDS, Salinity and Resistivity. |
| ● Meter has the only product serial number. |
| ● Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps. |
● The most widely used pH + Conductivity Double-Parameter measurement meter. |
Specifications
pH | Measuring range Resolution Accuracy Input current Input impendance Stability Temp. compensation range | （-1.99 ~ 19.99）pH 0.1/0.01/0.001 pH Meter:±0.01pH, connect meter with electrode:±0.01pH ≤1×10-12 A ≥3×1012 Ω ±0.01 pH/3h (0 to 100) ℃（automatic or manual） |
mV | Measuring range(mV/ORP/EH) Resolution Accuracy | -1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.03% FS |
Conductivity | Measuring range Resolution Accuracy Temp. compensation range Electrode constant Reference temperature | Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm （200~2000）μS/cm （2.00~20.00）mS/cm （20.0~200.0）mS/cm Resistivity：（0 ~ 100）MΩ·cm TDS: （0 ~ 100）g/L Salinity： （0 ~ 100）ppt 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm Meter:±1.0% FS,connect meter with electrode:±1.5% FS （0 ~ 50）℃（automatic ） 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1 25℃、20℃ and 18℃ |
Temperature | Measuring range Resolution Accuracy | -10℃~ 110℃ 0.1℃ 5~ 60℃range：±0.4℃ other range：±0.8℃ |
Other Technical Parameters: | Data storage Storage content Power Communication connector Size and weight Quality and safety certification | 300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC |
Working Condition | Environment temperature Environmental humidity IP rating | 5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade） ≤75% IP54 Dustproof and waterproof |
Standard Kit Includes
| 1. Model MP521 Lab pH/Conductivity meter | 1set |
| 2. Model 602 flexible electrode holder | 1pc |
| 3. 201T-M plastic pH/ATC three-in-one combination electrode | 1pc |
| 4. 2301T-M plastic pH/ATC three-in-one combination electrode | 1pc |
| 5. pH standard buffer solution（pH4.00, pH7.00 and pH10.01/50mL） | 1btl/each |
| 6. 1413μS/cm conductivity standard solution（50mL） | 2btls |
| 7. 9V power adapter（meter use）e | 1pc |
| 8. RS-232 communication cable | 1pc |
| 9. MP521 communication software disk | 1pc |
| 10. Operation manual | 1unit |
| 11. Brief operation instruction | 1unit |
| 12. Packing List | 1pc |
