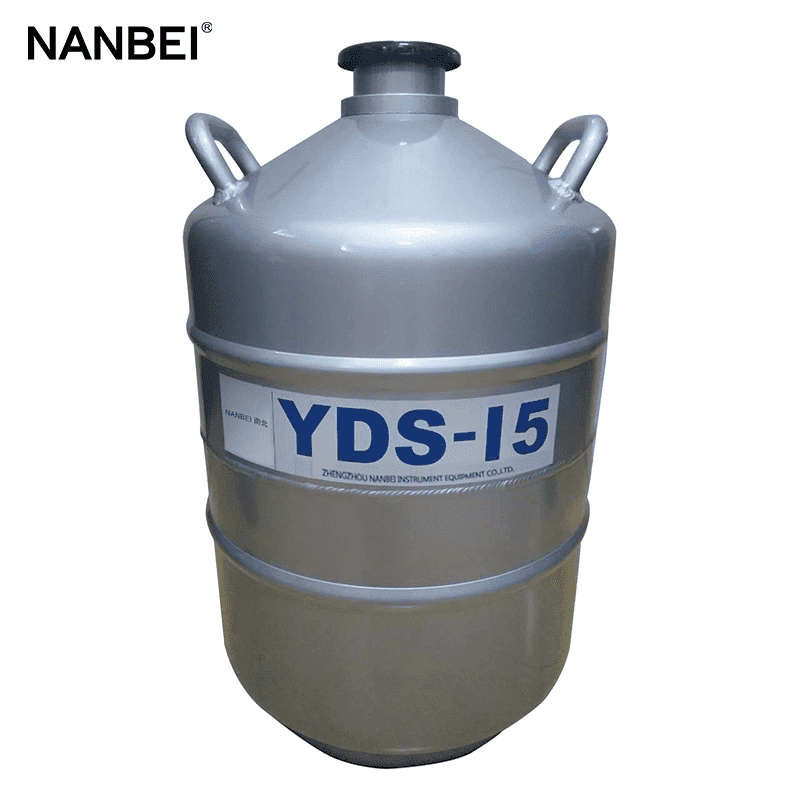

Storage Liquid Nitrogen Tank
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI

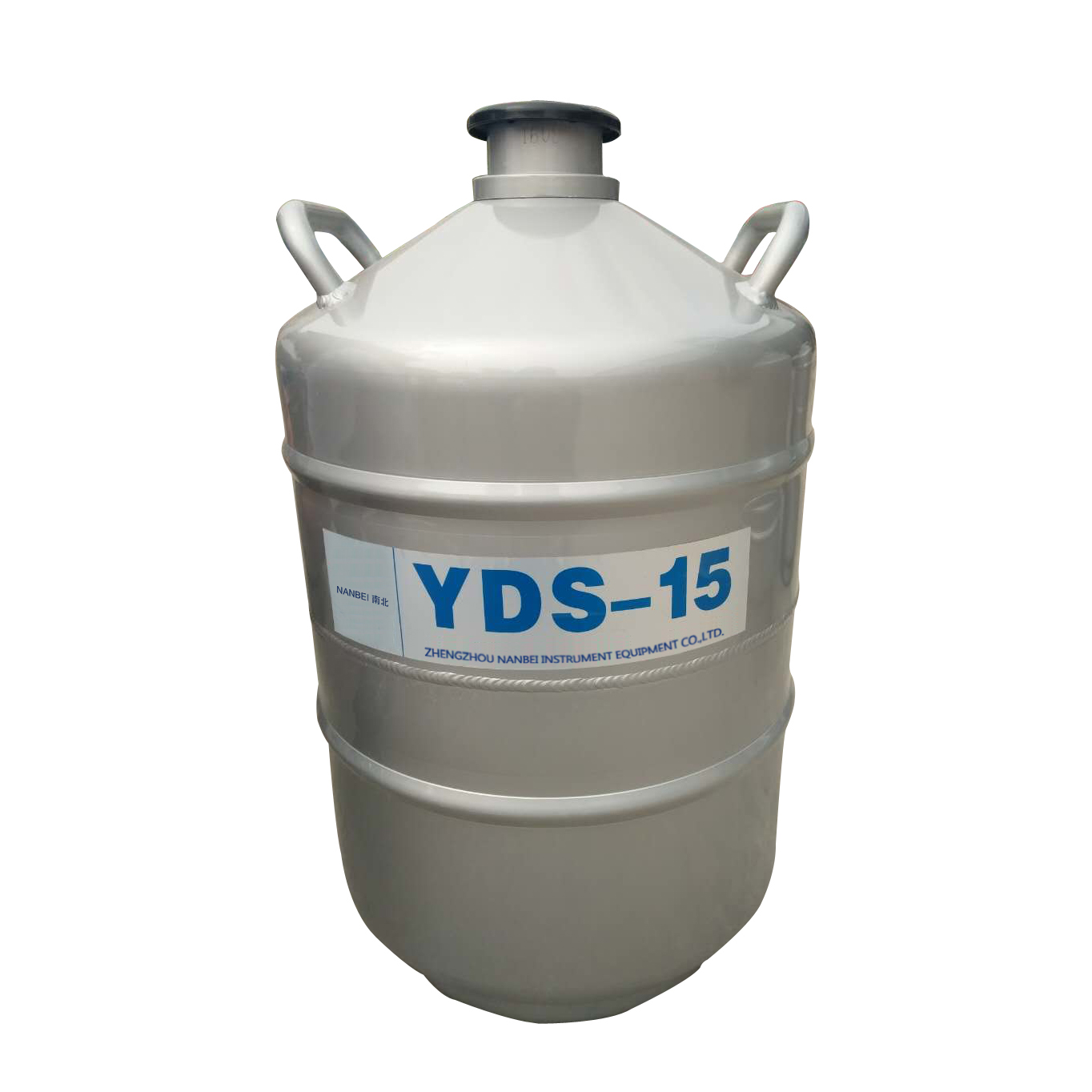

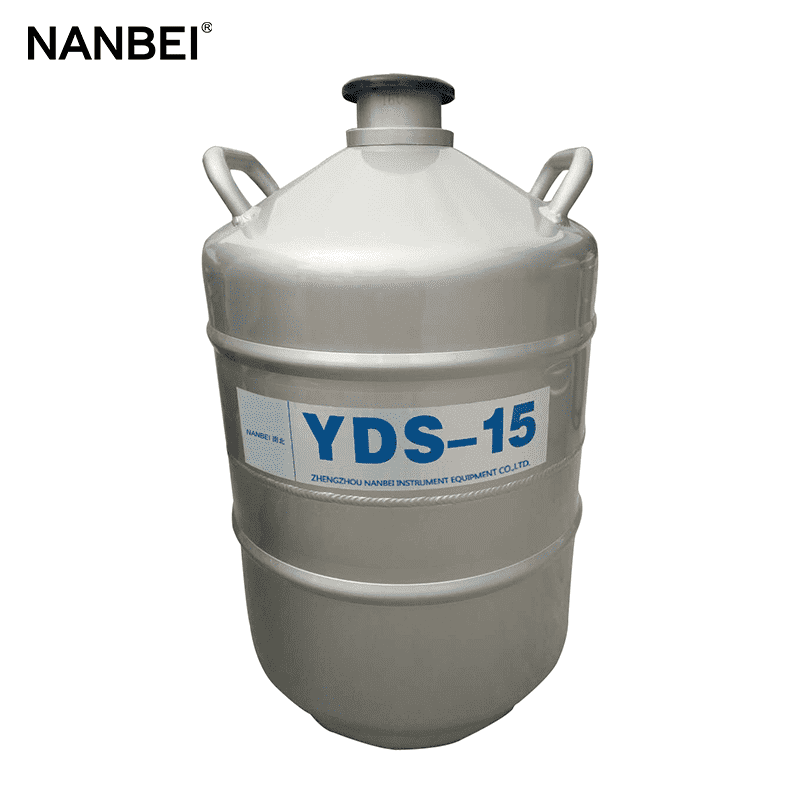

Model:YDS-15
Application:Animal husbandry artificial insemination,medical hygiene career,biological engineer,Indutrial cold assembly,metal material cold processing,low temperature crush and super conductivity
Liquid nitrogen tank divided into the following types, please choose the right model
1. Storage-type Liquid Nitrogen Biological Containers
2. Large-diameter liquid nitrogen biological containers
3. Transport-type liquid nitrogen biological caontainer
4. 50 Liters liquid nitrogen biological containers
Storage-type Liquid Nitrogen Biological Containers
Application:
standing indoor long bull semen, embryos, stem cells, skin, internal organs, vaccines, laboratory specimens are preserved, the mechanical components of the cooling and cooling, cold therapy for hospital use
Features:
The series of products with small size, light weight, easy to carry, compact and lightweight, static storaqe on low nitrigen consumption, cost-effective advantages.
1.The use of high-strength aluminum air, so light weight products.
2.Products easy to long-term preservation of biological specimens, preservation of animal semen, vaccines biomedical areas/species/cell.
3.Itis equipped with protective cover, to prevent the use of the bump, bruises.
4.Cylinder can be numbered to facilitate the identification and independent access to the safety of storage of samples.
5. According to the needs of users with lock cover to protect the sample containers for storage security.
6. High-vacuum multi-layer thermal design to provide no less than five years to ensure that the vacuum.
Parameters:
Model | Volume (L) | Neck diameter ≤mm | External diameter ≤mm | Height ≤mm | Net weight ≤kg | Liquid stored time(days) | Liquid evaporation（L/day） | ||
B | A | B | A | ||||||
YDS-2 | 2.5 | 50 | 224 | 370 | 2.8 | 20 | 25 | 0.12 | 0.1 |
YDS-3 | 3.15 | 50 | 224 | 420 | 3.4 | 26 | 31 | 0.12 | 0.1 |
YDS-6 | 6 | 50 | 305 | 460 | 4.5 | 52 | 63 | 0.12 | 0.1 |
YDS-10 | 11.2 | 50 | 305 | 550 | 6.3 | 85 | 110 | 0.12 | 0.09 |
YDS-15 | 16 | 50 | 365 | 600 | 9 | 134 | 161 | 0.12 | 0.1 |
YDS-20 | 21 | 50 | 365 | 610 | 9.5 | 170 | 210 | 0.12 | 0.1 |
YDS-30 | 32 | 50 | 446 | 670 | 14.5 | 254 | 295 | 0.12 | 0.1 |
YDS-35 | 35.5 | 50 | 446 | 695 | 17 | 250 | 310 | 0.12 | 0.1 |
Liquid nitrogen biological containers Accessories

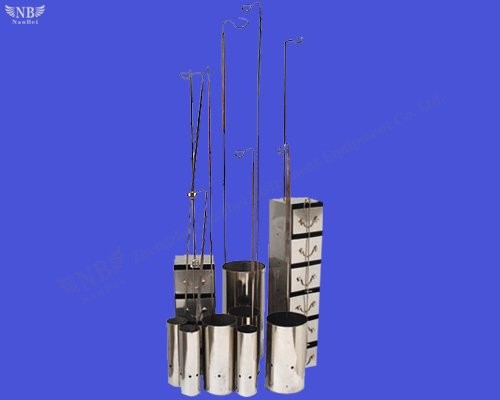

1.Canister
Made by stainless steel,can be numbered.It has Cylinder type and Multilayer square type.
Cylinder type has wide application,standard configuration of Liquid nitrogen tank.
Multilayer type has advantage of large volume samples access and storage,stainless steel square box is special design for
biology colleague and hospital.
2.Locked lid
1.made by high-strong alluminum alloy.
2.Have advantages of anti-corrosion,low temperature resistance,provent from frost crack and frozen collapse.
Combined with up and down flip cover,lock is optional for customer, which is good for biological specimen inside safety storage and manage

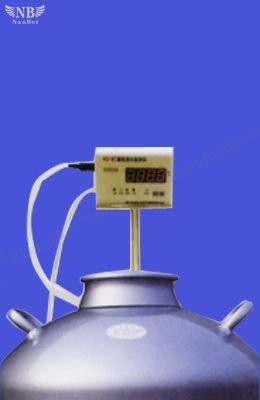

3.Liquid level alarm
Automatically inspect biological specimen which inside of liquid nitrogen tank,once the temperature inside beyond the control level,
it will alarm with sound or light to ensure specimen safety.Temperature range 0~196℃，resolution : 1℃

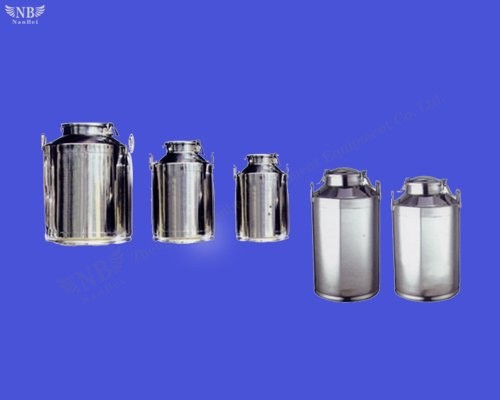

4.Stainless steel milk storage barrels:
This series product adopt stainless steel production, suitable for milk short-time storage and transportation, with large neck diameter,have advantage of nice appearance, high intensity, easy to
clean thoroughly and reliable sealing.
Features
1.Full stainless steel products, high strength and durability
2.Milk barrels outside surface uses the polishing treatment, compact and concise.
3.Frosted internal surface , easy to clean thoroughly.
4.Food grade rubber sealing,up to health and safety stardand.
