Anaerobic Incubator
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

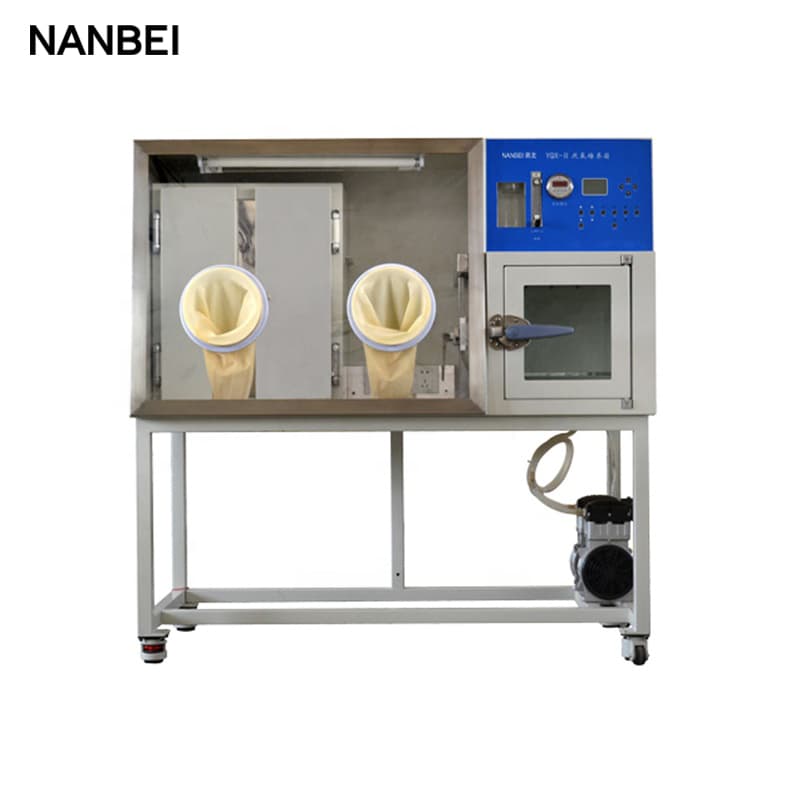

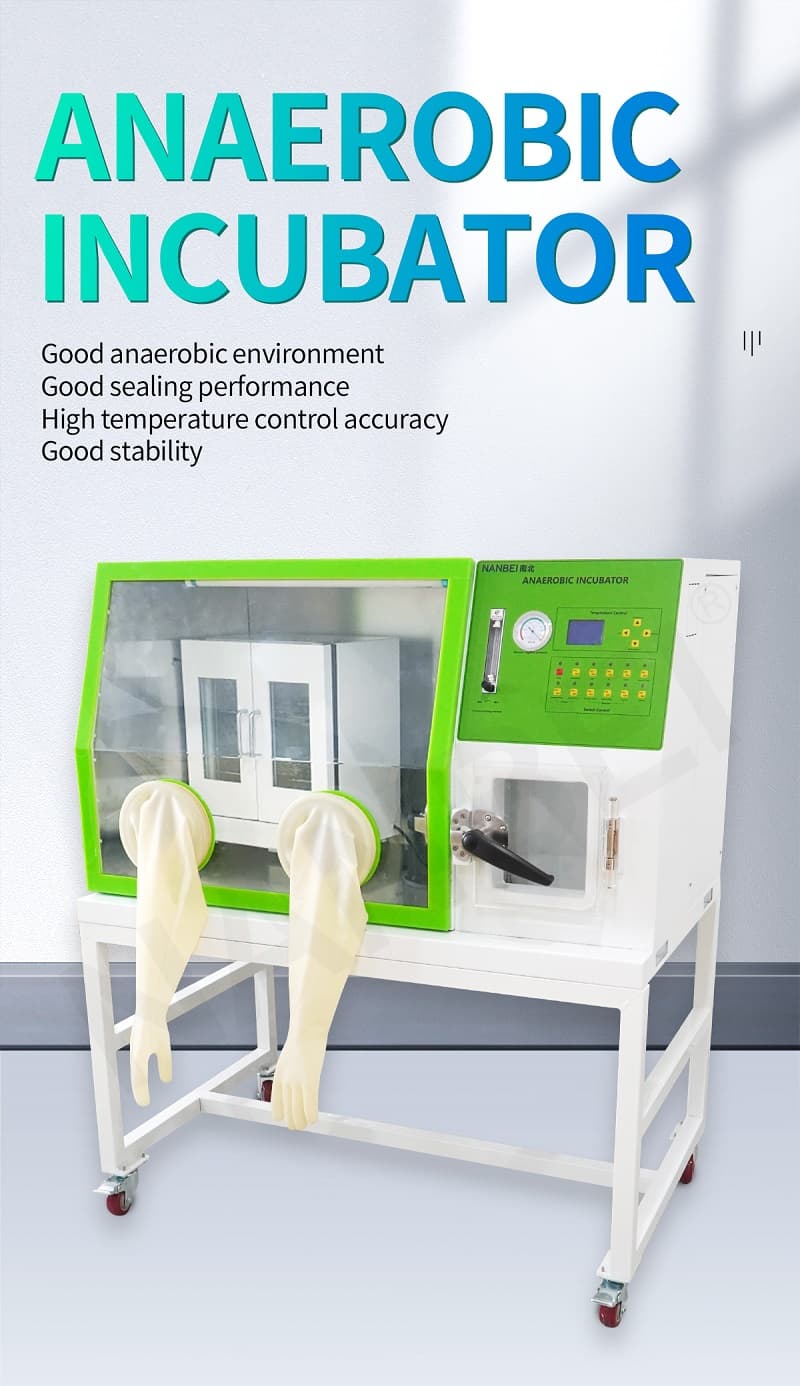

NANBEI Anaerobic Incubator
Scope of Application:
This instrument is used to cultivate and handle anaerobic microbes in non-oxygen environment. It provides strict anaerobic condition, constant temperature condition and a systematic and scientific working area. The anaerobic organism which is the most difficult to cultivated can be cultivated in this instrument and can avoid the death of organism caused by being exposed to the atmosphere during operation.
This can be applied for medical institution in inspection and research of pathogenic anaerobic bacterium, microbiological examination brewing of food hygiene, and other hypoxia, microaerobic, or oxygen-free environment.
Structure Characteristics:

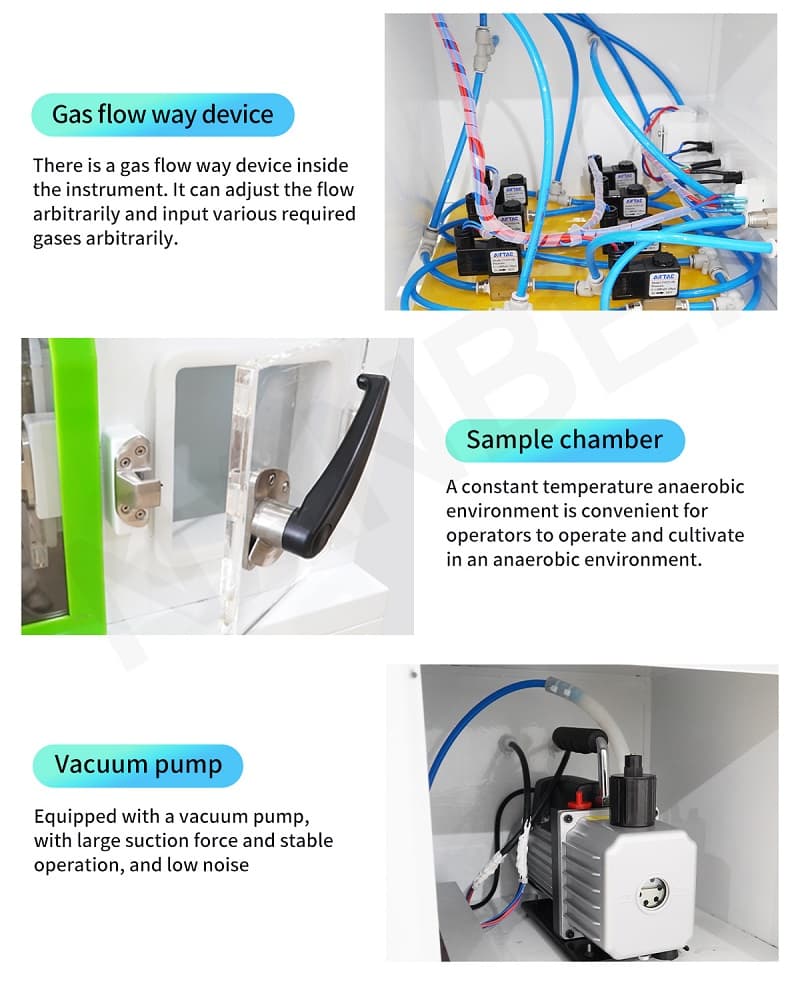

·This product is consisted of thermostatic incubator, anaerobic operating room, sampling room, air and electricity control system, cabinet frames, bottle holders and wax-melting sterilizer
·Strict anaerobic, micro-anaerobic and low anaerobic can be realized by using air in different composition

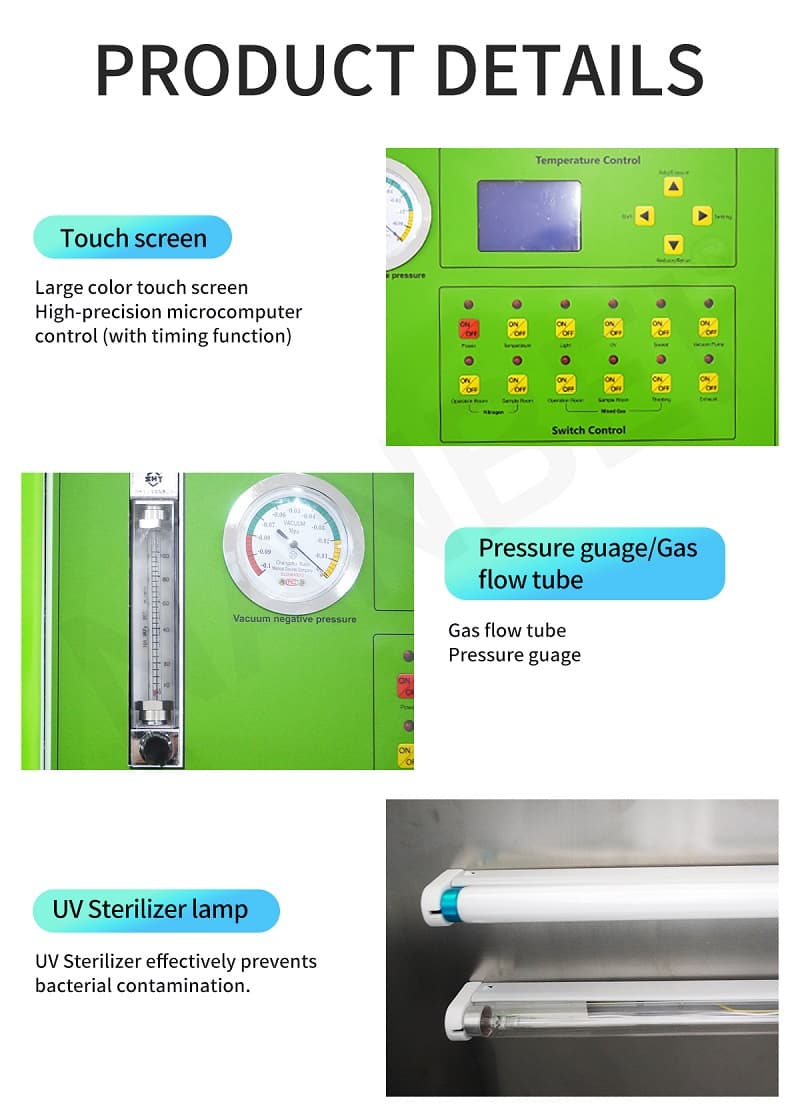

·Microprocessor PID temperature control, accurate and reliable for work room temoerature
·Inner UV germicidal lamp
·Inner Material: SUS304 Stainless steel

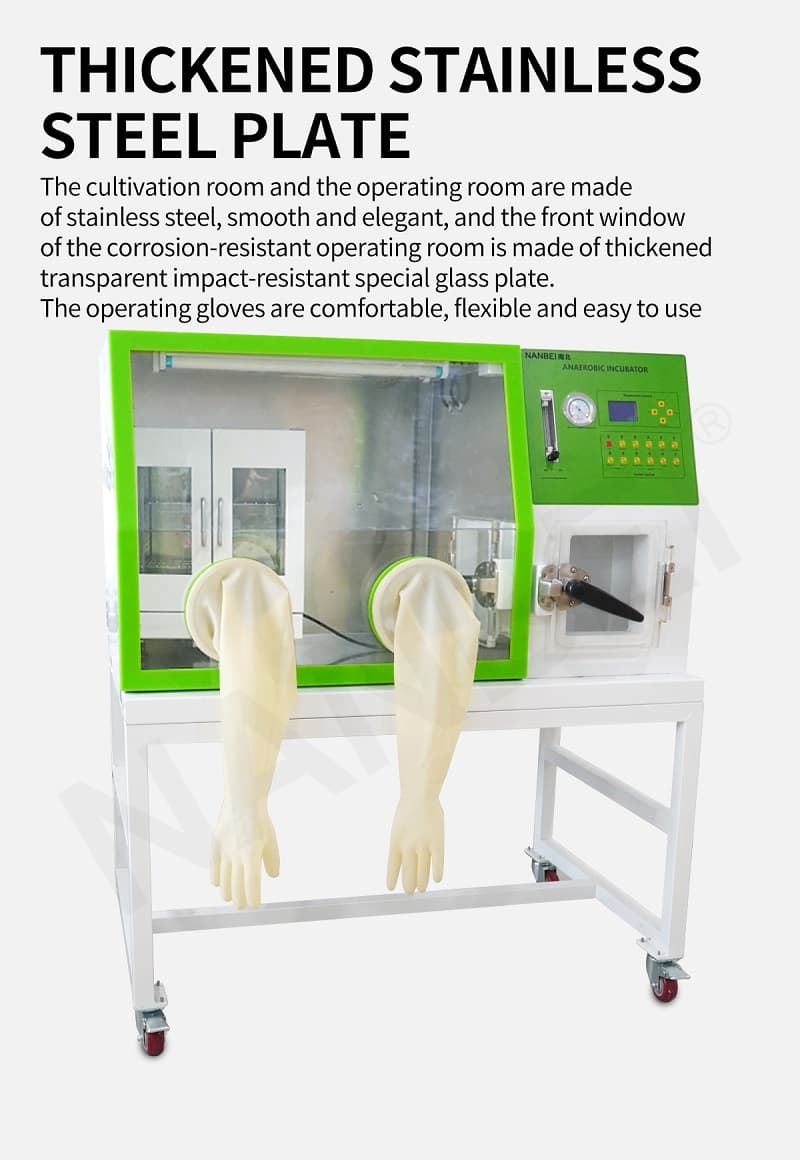

·Impact resistant special transparent glass plates used in anaerobic operating room and sampling room

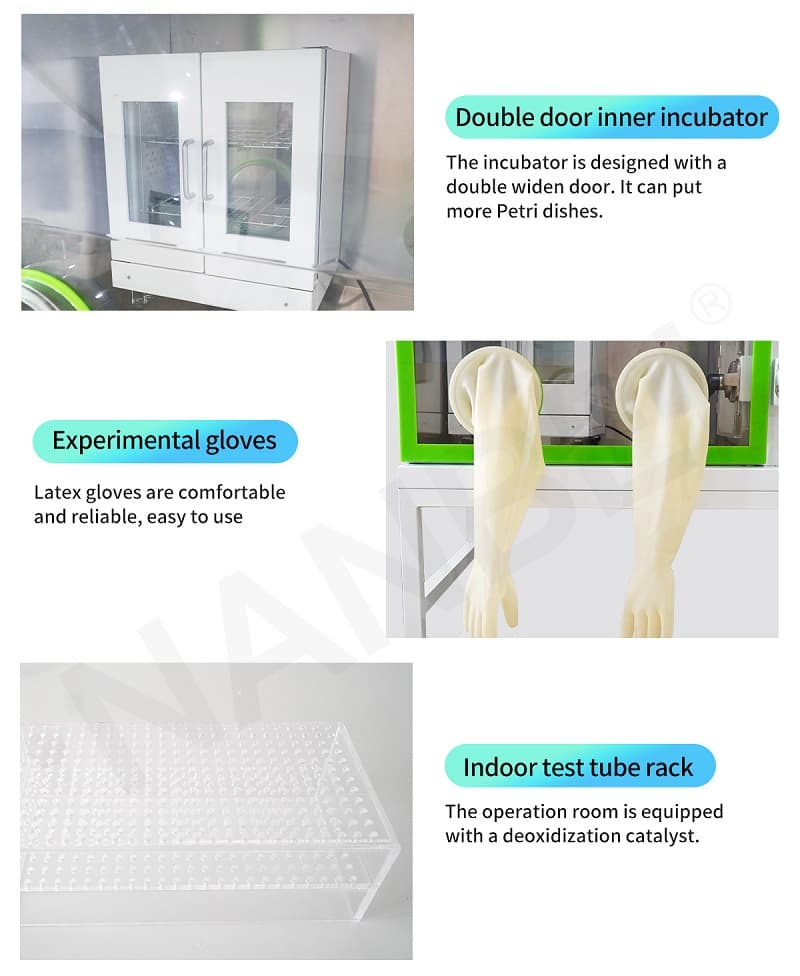

Special gloves shall be used to operate
·Special inoculation stick sterilizer, wax-melting disinfection device and oxygen removal catalyst in the anaerobic operating room

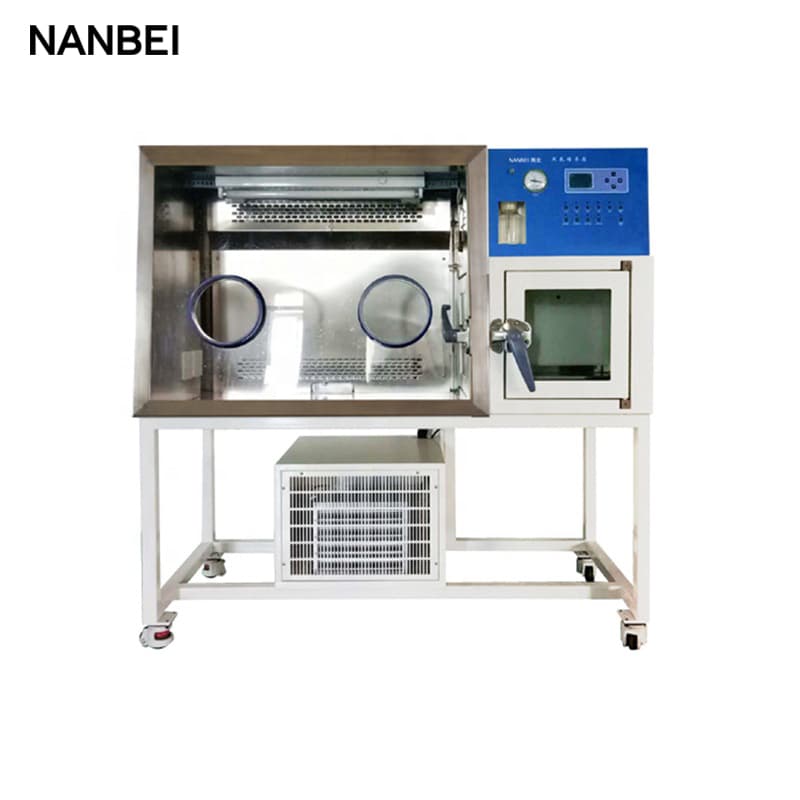

·NB-Z: Cubigel refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
·Optional device:
Independent external temperature protection device
RS485 communication serial port for NB-II and NB-III
Micro pinhole printer or micro thermal printer for NB-II and NB-III
Model Specification:
| Model | NB-I | NB-II | NB-III | NB-III-Z |
| Work Room Temperature Range | Room Temperature +3℃-60℃ | 10℃-60℃ | ||
| Temperature Uniformity | ≤±1℃ | |||
| Temperature Fluctuation | ≤±0.3℃ | |||
| Anaerobic Level | Oxygen Content in Opearating Room: ≤1% | Oxygen Content in Opearating Room: ≤0.5% | ||
| Forming Time for Anaerobic in Sampling Room | ≤5min | ≤15min | ||
| Forming Mode for Anaerobic( micro-anaerobic) in Sampling Room |
Vacuum and Gas Replacing 99.99% N2 Vacuum and Mixed Gas ( 5%H2 10%CO2 85%N2) | |||
| Forming Operation for Anaerobic in Sampling Room | Manual Button | One-button Automatic | ||
| Forming Time for Anaerobic in Operating Room | ≤1H | ≤2H | ||
| Forming Mode for Aaerobic( micro-anaerobic) in Operating Room |
Vacuum and Gas Replacing 99.99% N2 Vacuum and Mixed Gas ( 5%H2 10%CO2 85%N2) | |||
| Lasting Time for Anaerobic in Operating Room | ＞12H （Under the circumstance when the supply for small amout of mixed gas has been stopped） | |||
| Forming Operation for Anaerobic in Operating Room | Manual Button | One-button Automatic | ||
|
Work Room Dimension WxDxH (cm) | 25*19*29 | 42*30*50 | Operating Room is the Work Room | |
| Capacity(L) | 13 | 63 | 355 Operating Room is the Work Room | |
|
Sampling Room Dimension WxDxH (cm) | 33*23*32 | 40*33*32 | ||
|
Opearting Room Dimension WxDxH (cm) | 81*65*66 | 95*75*68 | 91*65*60 | |
|
Outline Dimension WxDxH (cm) | 126*73*138 | 140*73*137 | ||

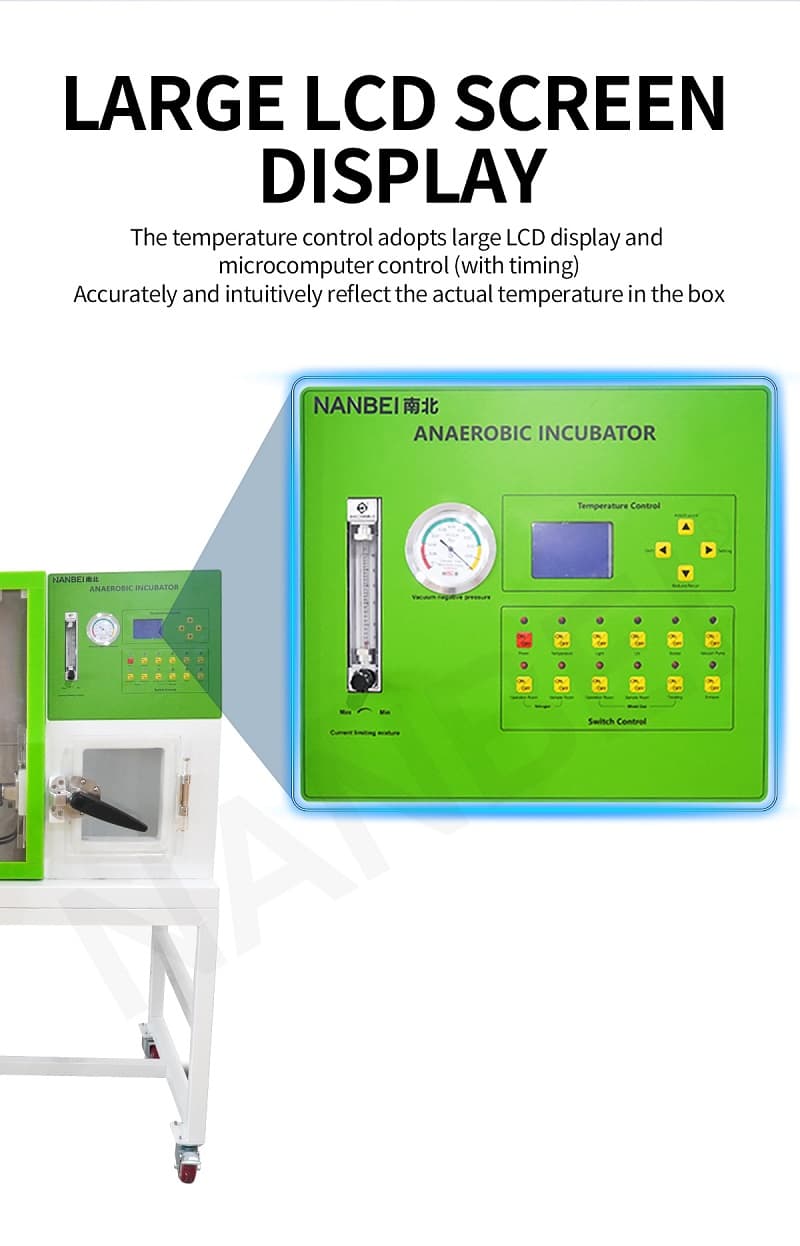

| Temperature Controller | LED display and P.I.D. temperature controller | LCD display and P.I.D. temperature controller | ||
| Shelves | 2 | 2 | 2 | 2 |
| Rated Power (W) | 600 | 600 | 730 | 1000 |
| Power | 1Φ 220V 50Hz | |||
Remark: This product is for civilian use only
