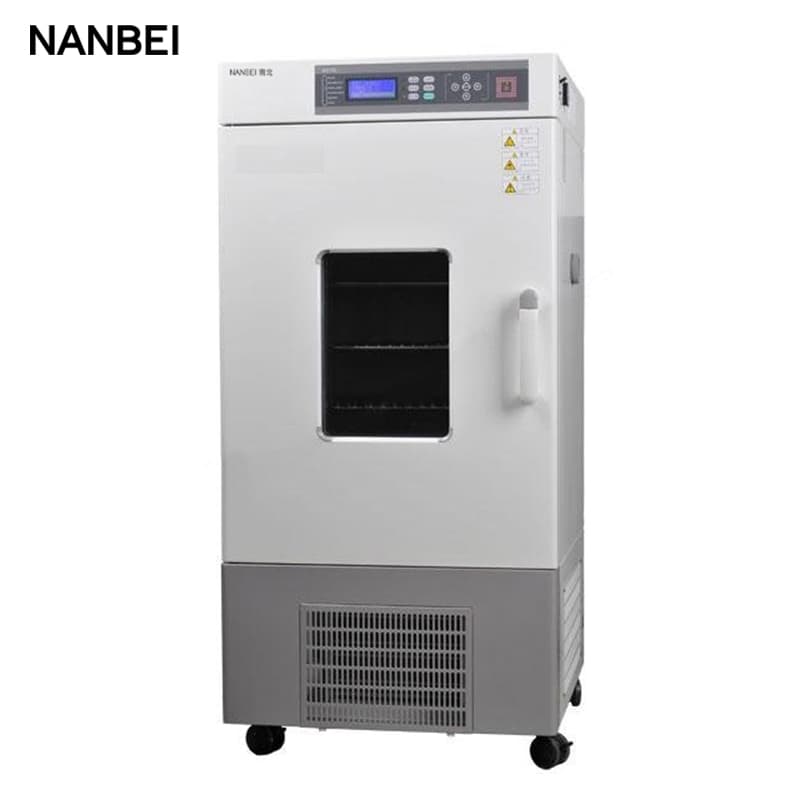

80L Hypothermia Biological Incubator

80L Hypothermia Biological Incubator

1. Airduct structure

It applies circular airflow design concept and forced convection simulated air circulation principle. The large power air circulating blades designed specially can produce higher air flow rate and guarantee high even and stable inner bag temperature.

2. Test hole

One test hole with the diameter of 45mm made with special mould is arranged on the left and right of the incubator respectively for observation. Internal silica gel soft plugs are provided to make sure the temperature inside the incubator is not affected.

3. RS232 interface

It is a special interface for PC. One software CD (suitable for simplified Chinese WINDOWS2000 or simplified Chinese WINDOWS XP operating system) is attached. Test program is written, monitored and saved with special PC software. Test data is directly displayed and printed with special PC software.

4. Environmental protection refrigerating

International famous brand refrigerant compressor and Germany EBM condenser applying 134a refrigerant and featuring fluorine free, environmental protection, precision and high efficiency are applied.

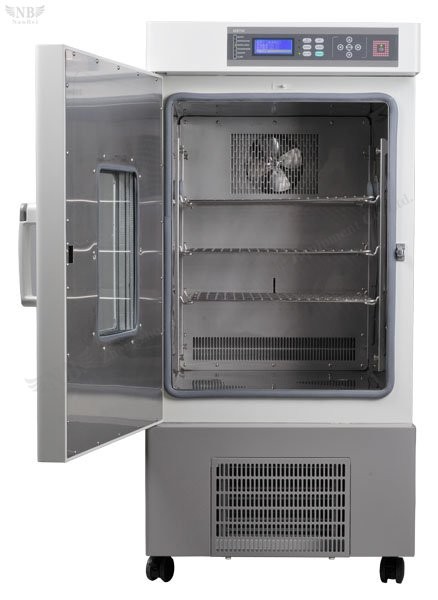

5. Movable partition

The partition height can be adjusted according to demand to be more humanized.

6. Effective heating

It applies fin type heating, which makes the heating and heat dispersion faster. The temperature can be controlled precisely and effectively to reduce the overshoot in heating.

Application scope: This is a kind of constant temperature equipment used for environmental test, constant temperature test and low temperature storage etc.

Features

◆ The incubator applies high quality cold rolling plate, which is sprayed with special Dupont powder. The inner bag applies SUS304 stainless plate.

◆ The heat insulating material of incubator applies Germany Bayer freon-free polyurethane one-time foaming technology to improve the insulating property and reduce energy consumption. It can save over 30% energy in comparison with similar products. The overall strength of incubator is good.

◆ The parts are imported from foreign countries (special electric motor, truckle, control system, sensor…etc.). Independent temperature controller and creepage protector are provided to guarantee the safety.

◆ Unique airduct structure and perfect configurations can guarantee the evenness, fluctuation of product, velocity of temperature rise and drop, fully circulate the air inside incubator and effectively guarantee the evenness of temperature.

◆ RS232 communication interface is provided. One 45mm test hole made with special mould is arranged on the left and right respectively for the convenience of observation.

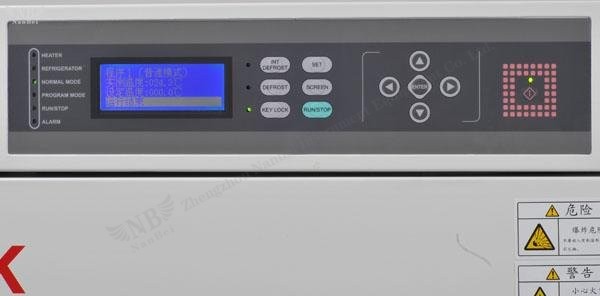

◆ The most advanced fuzzy PID intelligent programmable temperature control system is provided.

◆ Intelligent programmable mode, over temperature protection function, creepage protection, door open alarm, current failure alarm and sensor alarm etc. are provided to improve the safety. Meanwhile, functions including automatic start, stop, timed operation, clock display and self recover after energization are provided.

Parameters

■Performance parameter test under empty load: Ambient temperature of 20℃, ambient humidity of 50%RH.

■The change of product appearance and parameter will not be notified additionally. Product appearance may deviate due to shooting and printing reasons.
