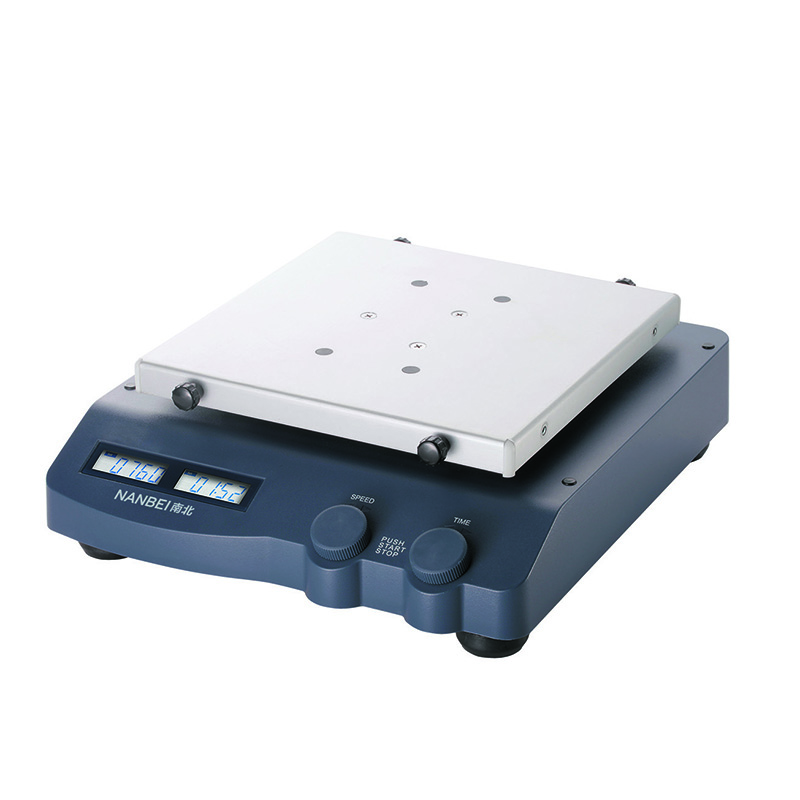

Orbital Shaker
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NB-O180-Pro
Application:
Key Features
• Max. load capacity is 7.5kg(O330) and 2.5kg(O180) with platform
• Double LCDs for independent display of time and speed
• Used with a wide variety of accessories
• Maintenance- free brushless DC motor
• Over speed detection and protection
• Remote function provides PC control and data transmission
Specification
| Specifications | NB-O180-Pro |
| Orbital diameter | 4mm |
| Max. load capacity (with platform) | 2.5kg |
| Motor type | Brushless DC motor |
| Motor input power | 28W |
| Motor output power | 15W |
| Power | 30W |
| Time settings range | 1min-19h59min |
| Speed range | 100-800rpm |
| Speed display | LCD |
| Timer display | LCD |
| Voltage | 100-240V,50/60Hz |
| Protection class | IP21 |
| Dimension [W x D x H] | 300×340×100mm |
| Weight | 8.1kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
| Data connector | RS232 |
Order Info
| Cat. No. | P/N | Descriptions | Power supply |
| 8032210100 | NB-O180-Pro | Digital Orbital Shaker (2.5Kg) with SK 180.1 Universal attachment(package seperately) | USA plug,100V-220V/50Hz/60Hz |
| Cn plug,100V-220V/50Hz/60Hz | |||
| Euro plug,100V-220V/50Hz/60Hz | |||
| UK plug,100V-220V/50Hz/60Hz |
| Accessories | |||
| Cat. No. | P/N | Descriptions | |
| 18900025 | 180.1 | 180.1 Universal attachment with 3 bars | |
| 18900026 | 180.2 | 180.2 Fixing clip attachment | |
| 18900038 | 180.3 | 180.3 Lengthways roller attachment | |
| 18900185 | 180.4 | 180.4 Dish Attachment with non-slip mat | |
| 18900200 | 180.5 | 180.5 Dish Attachment with non-slip mat 200*300mm | |
| 18900326 | 180.6 | 180.6 Dish Attachment with non-slip mat 280*280mm | |
| 18900037 | Bar for 180.1 Universal attachment，black | ||
| 18900029 | 180.2.1 | Fixing clip for flask volume 25 ml | |
| 18900030 | 180.2.2 | Fixing clip for flask volume 50 ml | |
| 18900031 | 180.2.3 | Fixing clip for flask volume 100 ml | |
| 18900032 | 180.2.4 | Fixing clip for flask volume 200/250 ml | |
| 18900033 | 180.2.5 | Fixing clip for flask volume 500 ml | |
| 18900280 | Connect sticks for double dishes shaker 1/pK | ||
