Vertical double layer thermostatic shaking incubator

Brand:NANBEI

Model:HNY-1102C

Application:Widely used in germ culture, ferment, hybridization, and research of biochemical reaction; enzyme and cellular tissue and all those require high temperature and oscillation frequency.

CONTACT NOW Chat Now

product details

Vertical Double layer Thermostatic shaking incubator

Summary:

This type of instrument is widely used in germ culture, ferment, hybridization, and research of biochemical reaction; enzyme and cellular tissue and all those require high temperature and oscillation frequency

Control feature:

Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted

Structure feature:

Sort: Microcomputer LCD type

Performance feature:

1.P.I.D environmental scanning micro-processing controller and intelligentized audio and visual alarm,The large LCD screen clearly indicates the preset and real parameters.

2.The operating parameter locked by encryption prevents misoperation.7.Operating parameter memory function avoids monotonous operations

3.AC inductive long-life motor design, broad speed regulation, constant torque, constant speed of rotation, no carbon brush and maintenance free.

4.Over-temperature audio and visual alarming function can automatically cut off the power when the motor overheated, temperature out of control or abnormal temperature occurs.

5.Provided with power-off recovery function, the equipment can automatically recover to run according to the originally designed programs when the external power is recovered after a sudden cut off.

6.Wiring of the acceleration control ensures soft start, smooth acceleration and the security of samples.

7.The luxurious streamline mould involving aesthetic designing, static plastic-spraying case and large toughened glass window.

Technical parameters:

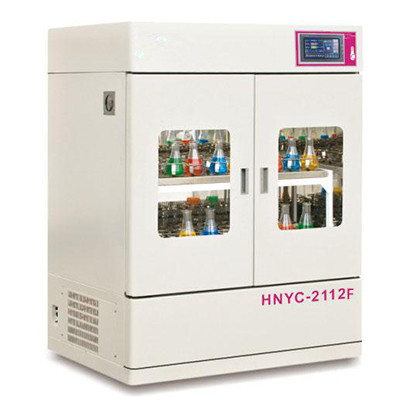

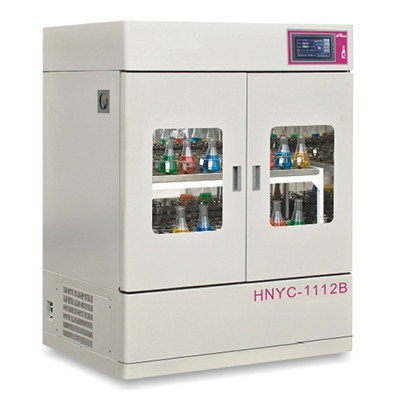

Model	HNY-1102C	HNY-2102C	HNY-1102	HNY-2102	HNY-1112B	HNY-2112B	HNY-1112F	HNY-2112F
Control mode	P.I.D microcomputer processing chip
Convection mode	Forced convection
Oscillation mode	convolution						Reciprocate
Display	LCD display
USB data download system	Yes
Kudan control system	Yes
Cyclotron frequency range	30-300rpm/min				30-280rpm/min
Cyclotron frequency accuracy	±1
Shake plate shimmy range(mm)	Ø26				Ø26(Ø35)		0-50
Max configuration	100ml48/250ml24/ 500ml*24		100ml90/250ml56/500ml*48		250ml90/500ml74/1000ml*36
Standard configuration	250ml*24		250ml28 500ml22		250ml45 500ml36
Pallet size(mm)	500*350		745*450		970*560
Timing(h)	0-999
Temp. range(℃)	Ambient temp.+5-60	4-60	Ambient temp.+5-60	4-60	Ambient temp.+5-60	4-60	Ambient temp.+5-60	4-60
Temp.accuracy	±0.1℃
Temp. uniformity(℃)	≤0.5（37℃）
Temp. fluctuation(℃)	≤0.2（37℃）
Plate number	2
Size(mm)	7005601260		9507001260		12008201560
Volume(L)	175		335		580
Power(w)	600	850	900	1150	1100	1400	1100	1400
Voltage	AC220±10% 50-60HZ
Ambient temp.(℃)	5-25
