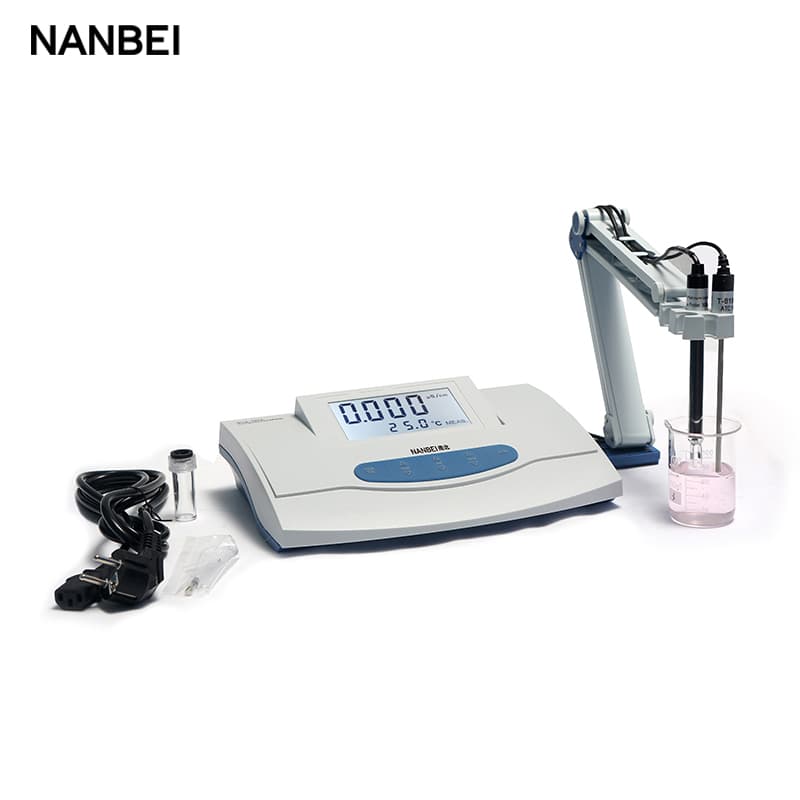

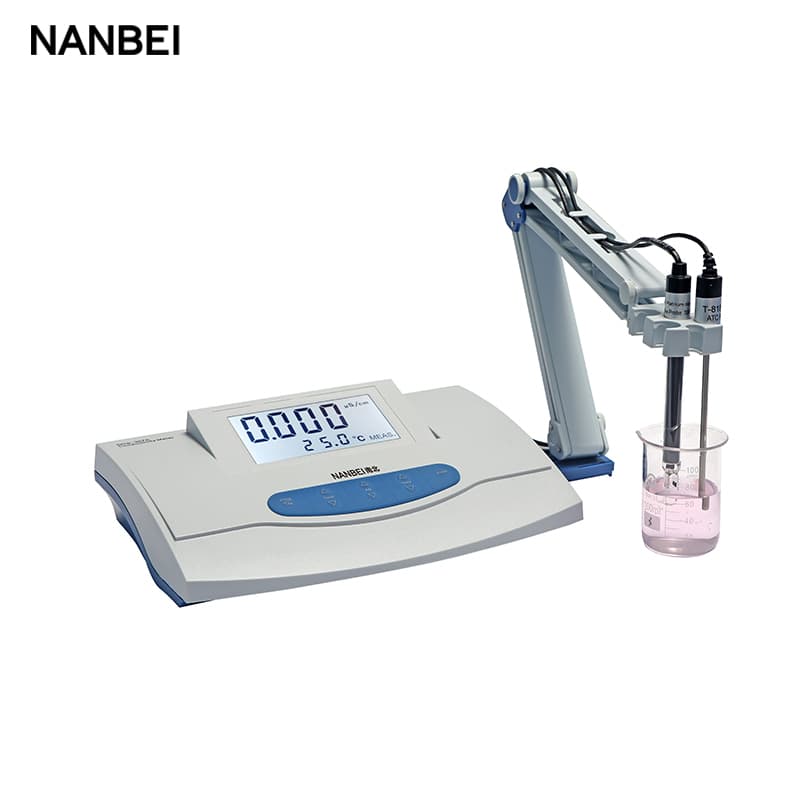

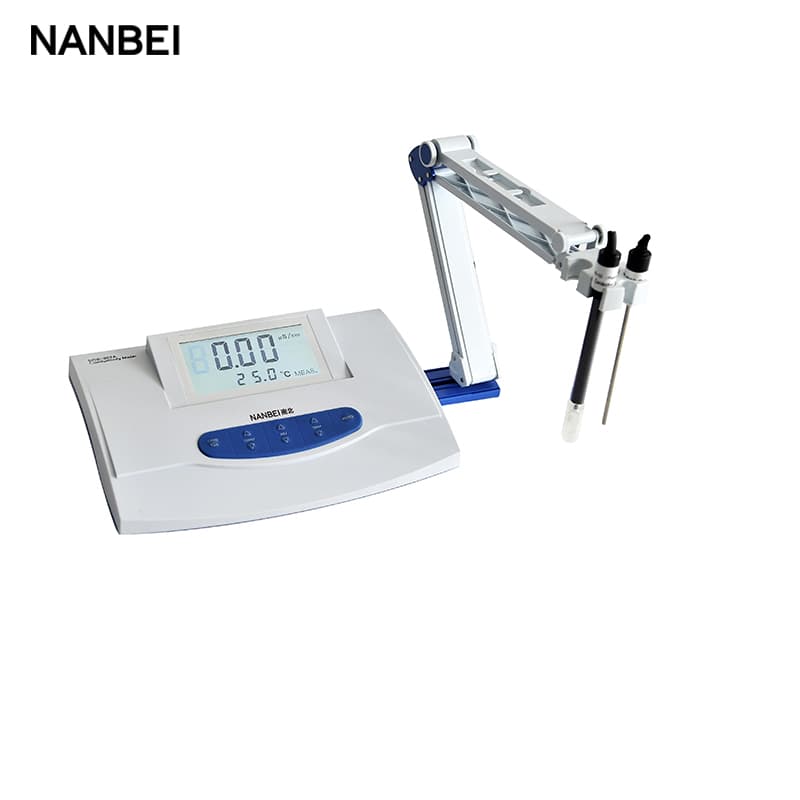

DDS-307A Conductivity Meters

DDS-307A Conductivity Meters

Functions:

1.Large screen and LCD segmented display

2.It functions as automatic and manual temperature compensation.

3.If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water.

4.It is equipped with DJS-1C conductancesensor (platinum black) and T-818-B-6 temperature sensor.

Specifications:

1.Measuring range:

Conductivity: 0.00μS/cm～100μS/cm

TDS：0～1000 mg/L

Temperature: 0.0～60.0 ℃

2.Accuracy:

Conductivity: ±0.5%FS

T D S：±1.0%FS)

Temperature: ±0.3℃±1 bit
3.Stability: （±0.33%FS±1 digital）/3h
4.Temperature compensation range: Manual/Automatic (0.0～40.0)）℃

5.Temperature compensation coefficient: 2%

6.Power supply: AC(220±22)V；(50±l)Hz

7.Dimension（mm）：300×200×72

8.Net Weight: 1.5kg

9.Case outside serial No: WXS-A008-1

Package Size: 610X290X640mm

Gross Weight: 2.5 kg

Conductance Constant and corresponding Conductivity measuring range：
