Shaking Incubators

Brand:NANBEI

Model:

Application:

CONTACT NOW Chat Now

product details

Shaking Incubators

As the major product range, Labwit shaking incubator has renowned as innovative, intuitive and reliable equipment amongst its competition. These units can be categorized into 4 ranges, from stackable, benchtop, horizontal todouble layer models. All shaking incubators have state of art microprocessor detection, setting and PID control of both temperature and shaking speed. This allows for maximum:

Accuracy

The set temperature is accurately reflected in the actual temperature inside the incubator. If it deviates from the setpoint, the energy to the heater is precisely regulated to adjust the actual temperature back to the setpoint without overshoot.

Uniformity

The temperature uniformity is achieved by 3D forced air circulation. A fan continuously moves the air across the incubator in order to create homogeneous conditions.

Reliability

Shaking incubators are generally left on for long periods of time. The microprocessor ensures the actual temperature remains stable, even when ambient temperature varies. The AC brushless motor ensures stable shaking movement for the long-term operation, free of maintenance.

Introducing the Premium Range

Following the success of our economic shaking incubator range, we are now delighted to introduce our upgraded premium shaking incubators. This range offers the excellent basic functions same as the economic range, but with a bunch of new features that are:

Becoming the trends of future generations.
An intuitive LCD TFT touch screen panel achieves easy operation and clear display.
Sophisticated cooling system ensures long term non-frost operation at low temperature (4 C)
Under the new programmable control mode, the unit can now be programmed to operate according to personalized "ramp and soak" cycles of both temperature and shaking speed
Built-in printer is included as standard to ensure continuous monitor over the operating parameters.

Here are more detailed info about premium and economic models:

Features		Premium Range	Economic Range
Micro-processor with PID Temperature Control
Self-diagnosed Alarming System
Display Panel	-LCD Screen with Keypad
Display Panel	-TFT Touch Screen
Cooling System	-Basic Automatic Control
Cooling System	-Advanced Non-Frost Control
Temperature Control Mode	-Fixed Value Control
Temperature Control Mode	-Programmable Control
Built-in Printer
Heating Only Models
Humidity Control
Multigas Control

Standard Configuration

Optional Configuration

Stackable Shaking Incubators

Best solution for space saving!

ZWYR-D2401 Premium single stack orbital shaking incubator

Single unit of 182L, shaking tray 800x430mm
All premium features apply
Full temperature control with cooling for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable
Fold-down front door and sliding tray designed for easy operation

ZWYR-D2402 Premium double stack orbital shaking incubator

Doubled volume, 182Lx2, Shaking tray 800X430mm
All premium features apply
Full temperature control with cooling for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable
Fold-down front door and sliding tray designed for easy operation

ZWYR-D2403 Premium triple stack orbital shaking incubator

Tripled volume, 182Lx3, Shaking tray 800X430mm
All premium features apply
Full temperature control with cooling for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable
Fold-down front door and sliding tray designed for easy operation

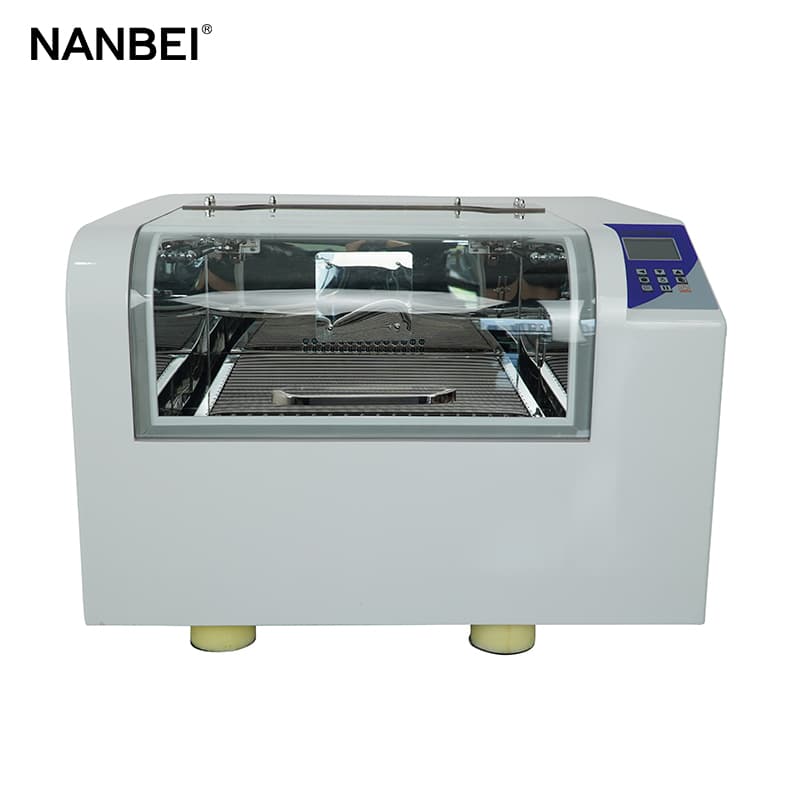

Benchtop Shaking Incubators

Compact for small lab!

Premium Range

Download Brochure: Premium Orbital Shaking Incubator 2014.V1.0

ZWYR-240 Premium orbital benchtop shaking incubator

69L volume with 400x370mm shaking tray
All premium features apply, cooling capacity for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable, 30-400rpm
Curved glass lid for easy cleaning and high visibility of inner chamber
Fully insulated cabinet ensures sound temperature stability

ZWYR-200D Premium Hi-speed orbital benchtop shaking incubator

69L volume with 400x370mm shaking tray
Special motor enables high shaking speed up to 600rpm, suitable for small volume vessels
All premium features apply, cooling capacity for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable
Curved glass lid for easy cleaning and high visibility of inner chamber

ZWFR-200 Premium reciprocal benchtop shaking incubator

69L volume with 435x420mm shaking tray
All premium features apply, cooling capacity for 4-60ºC operation
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm
Curved glass lid for easy cleaning and high visibility of inner chamber
Fully insulated cabinet ensures sound temperature stability

Economic Range

Download Brochure: Economic Benchtop Shaking Incubators 2014.V1.0

ZWY-103B Economic 34L orbital benchtop shaking incubator, heating only

Small 34L volume with 280x220mm shaking tray
Economic features apply
Heating only, ambient +5-60°C operation
Four shaking diameters adjustable with orbital shaking speed from 30-400rpm
Fully insulated cabinet ensures sound temperature stability

ZWY-103D Economic 34L Hi-speed orbital benchtop shaking incubator, heating only

Small 34L volume with 280x220mm shaking tray
Economic features apply. Heating only, ambient +5-60°C operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable
Special motor enables high shaking speed up to 600rpm, suitable for small volume vessels
Fully insulated cabinet ensures sound temperature stability

ZWY-100H Economic 63L orbital benchtop shaking incubator, heating only

Medium 63L volume with 340x370mm shaking tray
Economic features apply. Heating only, ambient +5-60°C operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable, 30-400rpm
Curved glass lid for easy cleaning and high visibility of inner chamber
Fully insulated cabinet ensures sound temperature stability

ZWY-100D Economic 63L Hi-speed orbital benchtop shaking incubator, heating only

Medium 63L volume with 340x370mm shaking tray
Economic features apply. Heating only, ambient +5-60°C operation.
Orbital movement with shaking diameter of 1-50mm stepless adjustable.
Special motor enables high shaking speed up to 600rpm, suitable for small volume vessels.
Fully insulated cabinet ensures sound temperature stability

ZWF-100 Economic 63L reciprocal benchtop shaking incubator, Heating only

63L volume with 346x400mm shaking tray
Economic features apply. Heating only, ambient +5-60°C operation
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm
Curved glass lid for easy cleaning and high visibility of inner chamber
Fully insulated cabinet ensures sound temperature stability

ZWY-240 Economic 69L orbital benchtop shaking incubator, cooling

69L volume with 400x370mm shaking tray
Economic features apply, cooling capacity for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable, 30-400rpm
Curved glass lid for easy cleaning and high visibility of inner chamber
Fully insulated cabinet ensures sound temperature stability

ZWY-200D Economic 69L Hi-speed orbital benchtop shaking incubator, cooling

69L volume with 400x370mm shaking tray
Economic features apply, cooling capacity for 4-60ºC operation
Orbital movement with shaking diameter of 1-50mm stepless adjustable
Curved glass lid for easy cleaning and high visibility of inner chamber
Special motor enables high shaking speed up to 600rpm, suitable for small volume vessels

ZWF-200 Economic 69L reciprocal benchtop shaking incubator, cooling

69L volume with 435x420mm shaking tray
Economic features apply, cooling capacity for 4-60ºC operation
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm
Curved glass lid for easy cleaning and high visibility of inner chamber
Fully insulated cabinet ensures sound temperature stability
eter

Horizontal Shaking Incubators

Ideal robust workhorse for large vessels!

Premium Range

Download Brochure: Premium Horizontal Shaking Incubator 2014.V1.0

ZWYR-211C Premium 260L orbital horizontal shaking incubator

260L volume with 920x500mm shaking tray included
All premium features apply, cooling capacity for 4-60°C operation
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter
Large double-folded glass window and internal light ensures high visibility of inner chamber
Maximum capacity of 5L x6 flasks compatible

ZWYR-211D Premium 300L orbital horizontal shaking incubator

300L volume with 940x584mm shaking tray included
All premium features apply, cooling capacity for 4-60°C operation
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter
Foot pedal for lid opening even when carrying full loads in both hands
Maximum capacity of 5L x6 flasks compatible

ZWFR-211 Premium 275L reciprocal horizontal shaking incubator

275L volume with 896x530mm shaking tray included
All premium features apply, cooling capacity for 4-60°C operation
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm
Large double-folded glass window and internal light ensures high visibility of inner chamber
Maximum capacity of 5L x6 flasks compatible

Economic Range

Download Brochure: Economic Horizontal Shaking Incubators 2014.V1.0

ZWY-111B Economic 170L orbital horizontal shaking incubator, heating only

ZWY-211B Economic 170L orbital horizontal shaking incubator, cooling

170L, with 920x500mm shaking tray included
Economic features apply.
Temperature range over ambient+5-60°C (ZWY-111B), 4-60°C (ZWY-211B)
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter
Maximum capacity of 1L x15 flasks compatible.
Economic choice of bulk incubation.

ZWY-111C Economic 260L orbital horizontal shaking incubator, heating only

ZWY-211C Economic 260L orbital horizontal shaking incubator, cooling

260L, with 920x500mm Shaking tray included
Economic features apply.
Temperature range over ambient+5-60°C (ZWY-111C), 4-60°C (ZWY-211C)
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter
Large double-folded glass window and internal light ensures high visibility of inner chamber
Maximum capacity of 5L x6 flasks compatible

ZWY-111D Economic 300L orbital horizontal shaking incubator, heating only

ZWY-211D Economic 300L orbital horizontal shaking incubator, cooling

300L volume with 940x584mm shaking tray included
Economic features apply.
Temperature range over ambient+5-60°C (ZWY-111D), 4-60°C (ZWY-211D)
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter
Foot pedal for lid opening even when carrying full loads in both hands
Maximum capacity of 5L x6 flasks compatible

ZWY-111G Economic 235L 70mm orbital horizontal shaking incubator, heating only

ZWY-211G Economic 235L 70mm orbital horizontal shaking incubator, cooling

235L volume with 770x500mm shaking tray included
Economic features apply.
Temperature range over ambient+5-60°C (ZWY-111G), 4-60°C (ZWY-211G)
70mm shaking diameter ideal for fermentation with large vessels, like 5L flask
Robust AC motor ensures smooth orbital movement from 30 to 150rpm
Large double-folded glass window and internal light ensures high visibility of inner chamber

ZWF-111 Economic 275L reciprocal horizontal shaking incubator, heating only

ZWF-211 Economic 275L reciprocal horizontal shaking incubator, cooling

275L volume with 896x530mm shaking tray included
Economic features apply.
Temperature range over ambient+5-60°C (ZWF-111), 4-60°C (ZWF-211)
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm
Large double-folded glass window and internal light ensures high visibility of inner chamber
Maximum capacity of 5L x6 flasks compatible
ing diam

Double-Layer Shaking Incubators

Designed to fit with all shaking incubation needs!

Premium Range

Download Brochure: Premium Double Layer Shaking Incubator 2014.V1.0

ZWYR-2102C Premium 170L orbital double-layer shaking incubator

170L volume, two 496x350mm shaking trays included as standard
All premium features apply, cooling capacity for 4-60°C operation
Two trays above each other, double the capacity for small flasks
Single front-open door with double-folded glass window
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter

ZWYR-2102 Premium 330L orbital double-layer shaking incubator

330L volume, two 734x458mm shaking trays included
All premium features apply, cooling capacity for 4-60°C operation
Two trays above each other, double the capacity for small flasks
Double front-open doors with double-folded glass windows
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter

ZWYR-2112B Premium 580L orbital double-layer shaking incubator

580L volume, two 970x560mm shaking trays included, ideal for mass production
All premium features apply, cooling capacity for 4-60°C operation
Two trays above each other, double the capacity for small flasks up to 250ml x90 flasks
Double front-open doors with double-folded glass windows
Orbital movement with speed adjustable from 30-300rpm and 35mm shaking diameter

ZWFR-2112 Premium 580L reciprocal double-layer shaking incubator

540L volume, two 940x580mm shaking trays included, ideal for mass production
Two trays above each other, double the capacity for small flasks up to 250ml x90 flasks
All premium features apply, cooling capacity for 4-60°C operation
Double front-open doors with double-folded glass windows
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm

Economic Range

Download Brochure: Economic Double Layer Shaking Incubators 2014.V1.0

ZWY-1102C Economic 170L orbital double-layer shaking incubator, heating only

ZWY-2102C Economic 170L orbital double-layer shaking incubator, cooling

170L volume, two 496x350mm shaking trays included as standard
Economic features apply.
Temperature range over ambient+5-60°C (ZWY-1102C), 4-60°C (ZWY-2102C)
Two trays above each other, double the capacity for small flasks
Single front-open door with double-folded glass window
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter

ZWY-1102 Economic 330L orbital double-layer shaking incubator, heating only

ZWY-2102 Economic 330L orbital double-layer shaking incubator, cooling

330L volume, two 734x458mm shaking trays included
Economic features apply.
Temperature range over ambient+5-60°C (ZWY-1102), 4-60°C (ZWY-2102)
Two trays above each other, double the capacity for small flasks
Double front-open doors with double-folded glass windows
Orbital movement with speed adjustable from 30-300rpm and 26mm shaking diameter

ZWY-1112B Economic 580L orbital double-layer shaking incubator, heating only

ZWY-2112B Economic 580L orbital double-layer shaking incubator, cooling

580L volume, two 970x560mm shaking trays included, ideal for mass production
Economic features apply.
Temperature range over ambient+5-60°C (ZWF-1112), 4-60°C (ZWF-2112)
Two trays above each other, double the capacity for small flasks up to 250ml x90 flasks
Double front-open doors with double-folded glass windows
Reciprocal movement with linear stroke of 1-50mm stepless adjustable, 30-240rpm

ZWF-1112 Economic 580L reciprocal double-layer shaking incubator, heating only

ZWF-2112 Economic 580L reciprocal double-layer shaking incubator, cooling

580L volume, two 940x580mm shaking trays included, ideal for mass production
Economic features apply.
Temperature range over ambient+5-60°C (ZWF-1112), 4-60°C (ZWF-2112)
Two trays above each other, double the capacity for small flasks up to 250ml x90 flasks
Double front-open doors with double-folded glass windows
Orbital movement with speed adjustable from 30-300rpm and 26mm shak
