3N24RI High-speed Refrigerated Centrifuge

3N24RI High-speed Refrigerated Centrifuge

Brand:NANBEI

Model:3N24RI

Application:

CONTACT NOW Chat Now

product details

High-speed refrigerated centrifuge 3N24RI

As an advanced intelligent device,NANBEI 3N Series Intelligent High-Speed Refrigerated Centrifuge is widely applicable in a variety of fields such as biochemistry,medical treatment and public health,food safety,life science,forestry,animal husbandry,blood banks,blood stations,biological products and pharmaceutical products.It is the ideal equipment for separation,precipitation,concentration and preparation of samples and a high-tech product than can compare favorably with import ones and be exported in large quantities.

Features

Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchip's dsPIC30F series and driven by a special driver module of FAIRCHILD'S FSBB30CH Series to ensure the circuit's reliability.

The design of the whole machine is in line with the ergonomics,with streamlining sculpt. With a complete steel structure and a stainless steel centrifuge cavity,it is safer,better looking and more efficient.

With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly. With triple protective layers of steel bushings to achieve secure and reliable operation as well as personnel and equipment safety.

Rotors at rest will be in standby and cool down.

With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.

With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.

With a motor gate lock mute mechanical & electrical integration.

Able to provide more than 100 kinds of operating modes for the user to programme and use freely.

10 levels for speed-up and speed-down control.

Maximum rotation speed:30000r/min,Maximum centrifugal force:62400xg.

Model	3N24RI	3N20RI	3N16RI	3N12RI
Max Capacity	4×100ml Swing bucket rotor
Max Speed（r/min）	24000	20800	16800	12000
Max RCF（×g）	39900	30000	19600	12300
Standard rotor	12*1.5/2.0ml( titanium alloy)	12×1.5/2.0 ml	12×1.5/2.0 ml	24×1.5/2.0 ml
Speed precision	±50r/min
Refrigeration system	Import fluoride-free compressor and control valve（R404a）
Temp.control range	－20℃～40℃
Temp.precision	±1℃
Operation programme	100
Total power	1.5kw
Timer range	0-99h59min
Noise	≤65dB
Power	AV220V 50Hz
weight	75kg
Dimension（L×W×H）	710×630×350mm

centrifuge machine

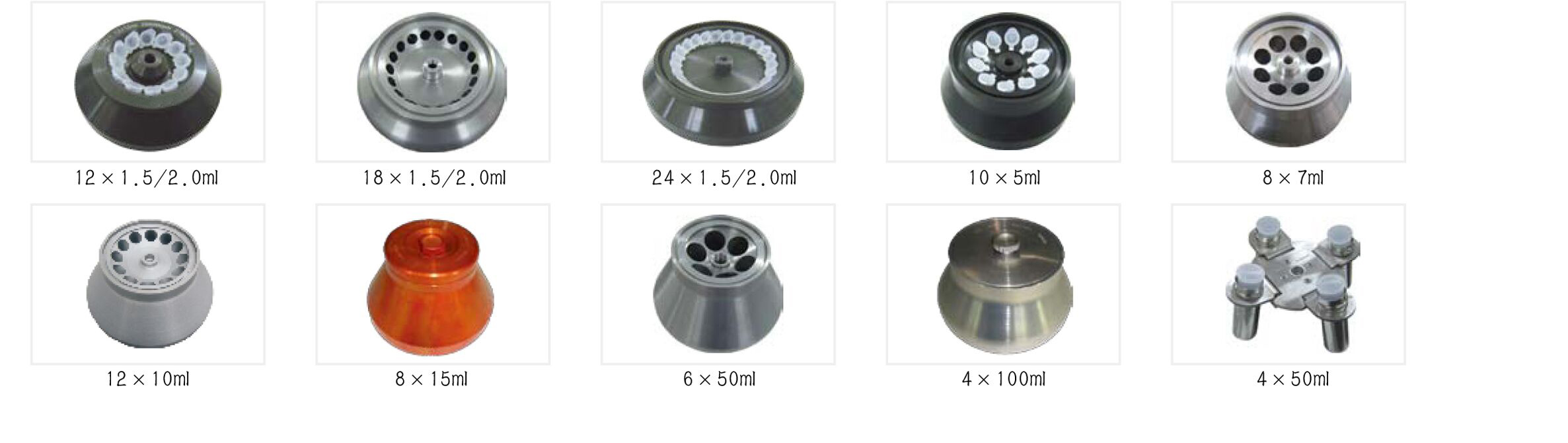

Model	Capacity	3N24RI		3N20RI		3N16RI		3N12RI
Model	Capacity	Speed	RCF(xg)	Speed	RCF(xg)	Speed	RCF(xg)	Speed	RCF(xg)
Angle rotor	12×1.5/2.0ml	24000	39900	20800	30000	16800	19600	12000	10000
	24×1.5/2.0ml	16000	23800	14000	18180	13400	18180	11500	12300
	18×1.5ml	16000	17700	16000	17700	14000	13600
	30×1.5ml	12000	15300	12000	15300	11000	12900
	48×0.5ml	13500	17500	13000	16300	12000	13800
	10×5ml	20000	27700	16000	17700	13000	11700	12000	10000
	12×10ml/5ml	15000	21600	14000	18800	12000	13400	11000	11600
	8×15ml	12000	14800	12000	14800	12000	14800
	6×50ml	12000	13800	12000	13800	12000	13800	10000	9600
	4×100ml	11000	11720	10000	10500	9000	8500	8000	6700
Swing rotor	4×100ml	4000	2100	4000	2100	4000	2100
	12×10ml	4000	2330	4000	2330	4000	2330
	4×50ml	4000	2150	4000	2150	4000	2150	4000	2150
	4×10ml	6000	3200	6000	3200	6000	3200	6000	3200
Swing microplate rotor	2×2×48 holes	3000	1400	3000	1400	3000	1400
