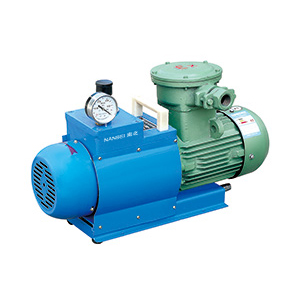

WXF Series Anti-explosive Direct-drive Rotary Vane Vacuum Pump
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:WXF-8
Application:
This series of explosive-proof oilless rotary vane vacuum pump is a clean vacuum pump which is designed and developed by ourselves. It can work without lubricating oil and have no pollution.Widely used in petroleum, chemicals, mine, medicine, oil house, service station, liquid gas station, gas flue, aerospace. It is an equipment to pump the inflammable and detonatable gas
Features:
a. No oil vapor, the working environment and the processed products are always clean.
b. Equipped with suction filter and exhaust muffle. Long service life, low noise, easy to fix.
c. Be suitable for the inflammable and detonatable gas which have the IIA or IIB anti-explosion level and the temperature with T1 to T4
d. Sign of anti-explosion is ExdIIT4
e. Adopt the Isolation technology, very safe and reliable.
Technical parameters:
Model | WXF-1 | WXF-2 | WXF-4 | WXF-8 |
Pumping speed(L/s) | 1 | 2 | 4 | 8 |
Ultimate pressure(Mpa) | ≤2*10-2 | |||
Rotary speed(r/min) | 1400 | |||
Motor power(Kw) | 0.25 | 0.37 | 0.55 | 1.1 |
Voltage(V) | 380 | |||
Inlet diameter(mm) | Φ12 | Φ12 | Φ30 | Φ30 |
Dimensions(mm) | 320*160*240 | 440*160*240 | 600*260*340 | 650*260*340 |
Weight(Kg) | 14 | 16 | 55 | 60 |
