Jewelry LED Type Ultrasonic Cleaning Machine
Jewelry LED Type Ultrasonic Cleaning Machine

Jewelry LED Type Ultrasonic Cleaning Machine

Brand:NANBEI

Model:NB-QXJ-6

Application:

product details

Jewelry LED Type Ultrsonic Cleaning Machine


Usage:
1. Ultrasonic cleaning machine is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves. It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the container,being fast in cleaning, efficiency, undamaged on the surface and reducible in labour intensity, it has wide applications in cleaning precision machinery parts, hydraulic parts, pneumatic parts, value, brake, bearings, bearing scrapers, oil nozzle, oil pump, carburetor, fuel injectors and other electronic components, circuit boards, semiconductor silica wafers, plating, optical lenses, audio heads, polyester filter, chemical fiber spinning nozzle, spinning plates, etc, including laboratories, and other various industries cleaning, there are machines with different functions such as temperature-increasing, power-adjustment, dual-frequency, high-frequency(59K, low noise and suitable for precision cleaning), swept-frequently for users to choose from.
2. On the basis of the international standards IEC60886.61102.61161, the company manufactures series of intelligently automatic ultrasonic cleaning machines and airing cleaning machines, including the following types(desktop type, input type, split, single-slot, dual-slot, multi-user), all major and key parts are imported, thus making the circuit more excellent, work more reliable, efficiency greater, noise much lower and cleaning more effective.

Characteristic:
1. Shell, network frame, soundproof caps all use GB 304 stainless steel, has good anti-corrosion effect.
2.With a solution heating device, the temperature control range of water temperature -80 degrees.
3.Has a good cleaning effect, low noise, fast cleaning, industrial and mining enterprises, universities, research institutes, commercial, electronics industry, the medical industry preferred products!
4.Application:cleaning, mixing, emulsification, degassing, replacement, cell disruption
5.We have 12months warranty except  wear parts. You can also buy parts from us after 12months.
6.According to customer requirements customized non-standard products.

Specification:

ModelInner Tank (mm)Volume (L)Power adjustable   %Frequency (KHZ)Power (W)Heating Power (W)Adjustable Temp.(℃)Adjustable Time(min)DrainageRackSound reduction cover
NB-QXJ-4300*150*100440-10040100500








Water temperature -80









1-60









Yes









Yes









Yes
NB-QXJ-4300*150*100440-10040200500
NB-QXJ-6300*150*150640-10040100500
NB-QXJ-6300*150*150640-10040200500
NB-QXJ-10300*240*1501040-10040200500
NB-QXJ-10300*240*1501040-10040300500
NB-QXJ-10300*240*1501040-10040400500
NB-QXJ-10500*140*1501040-10040400500
NB-QXJ-15330*300*1501540-10040200500
NB-QXJ-15330*300*1501540-10040300500
NB-QXJ-15330*300*1501540-10040400500
NB-QXJ-22.5500*300*15022.540-100405001000
NB-QXJ-22.5500*300*15022.540-100406001000
NB-QXJ-22.5500*300*15022.540-100407001000
NB-QXJ-22.5500*300*15022.540-100408001000
NB-QXJ-52600*300*2885240-1004040001000


Details:

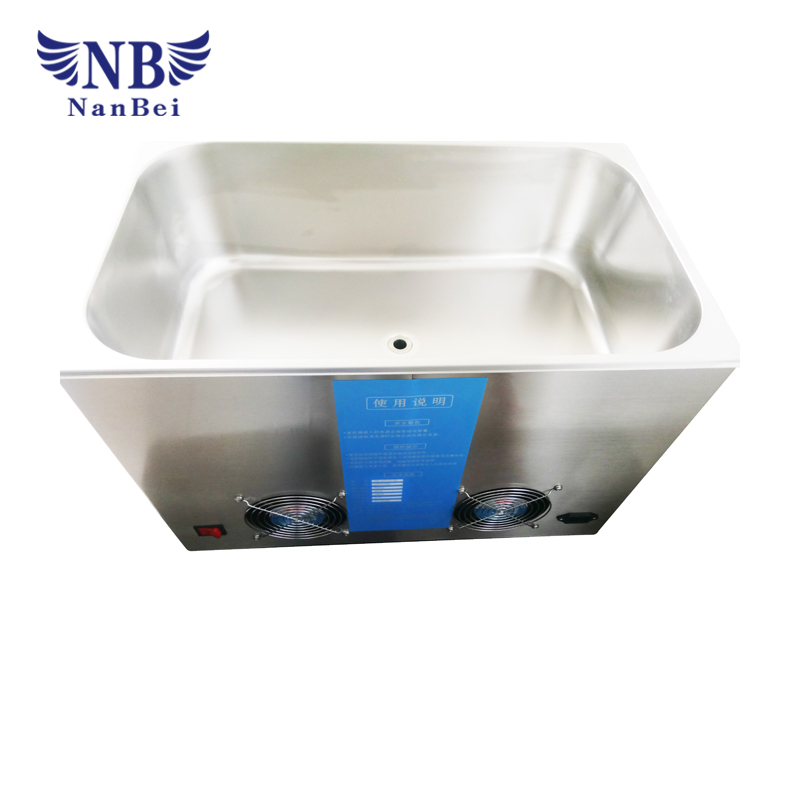

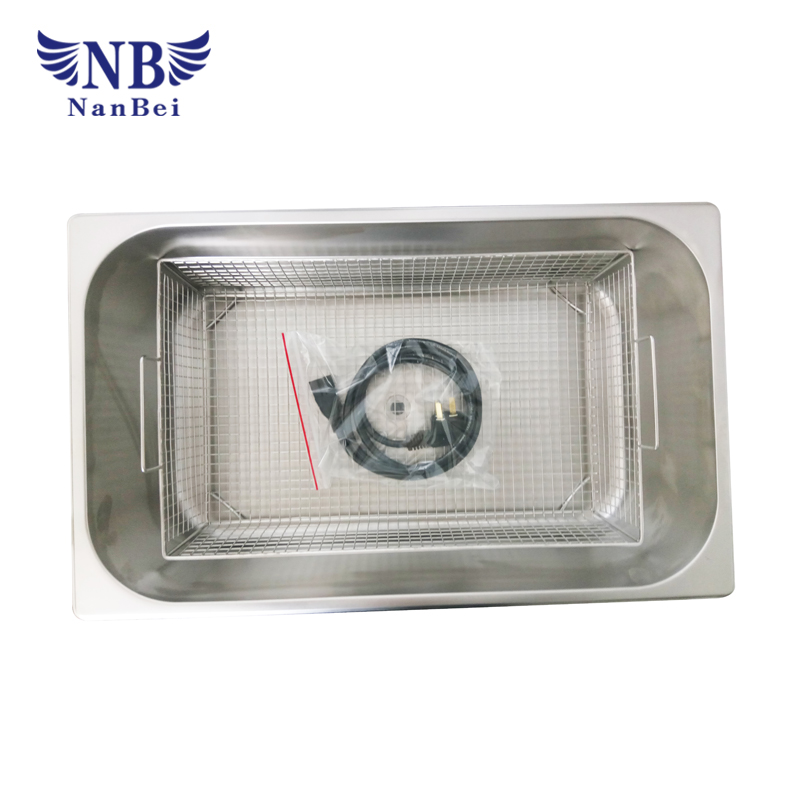

 ultrasonic cleaning machineultrasonic cleaner

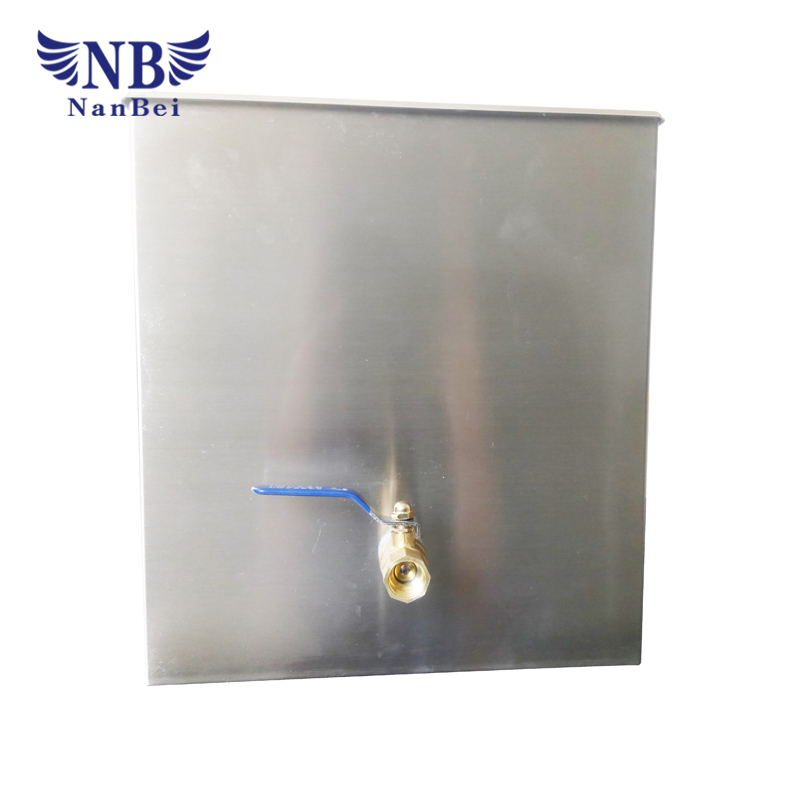

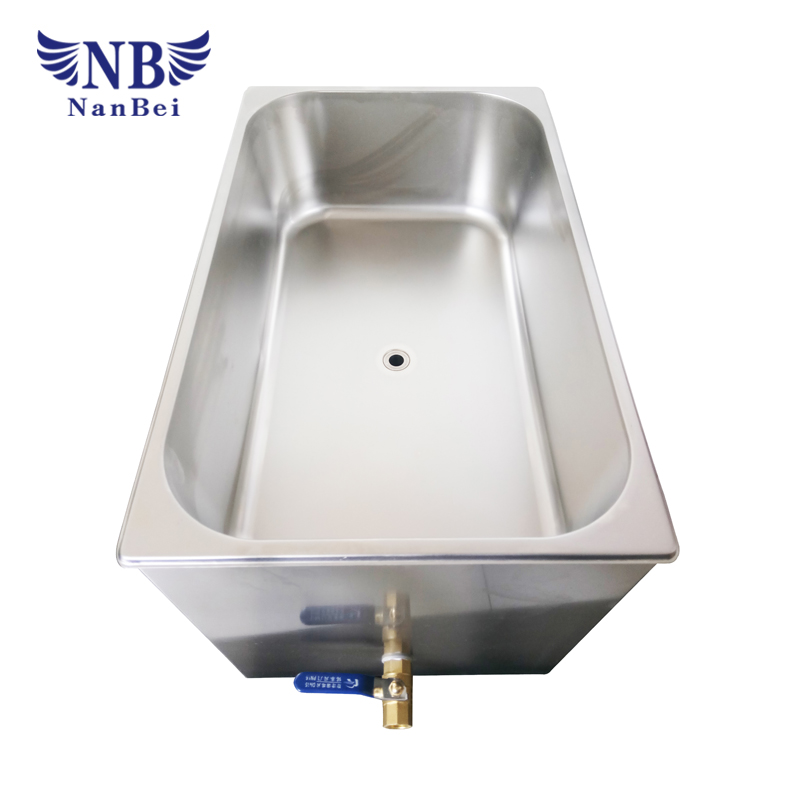

jewelry ultrasonic cleanermedical ultrasonic cleaner
