Ultrasonic Cleaning Machine
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

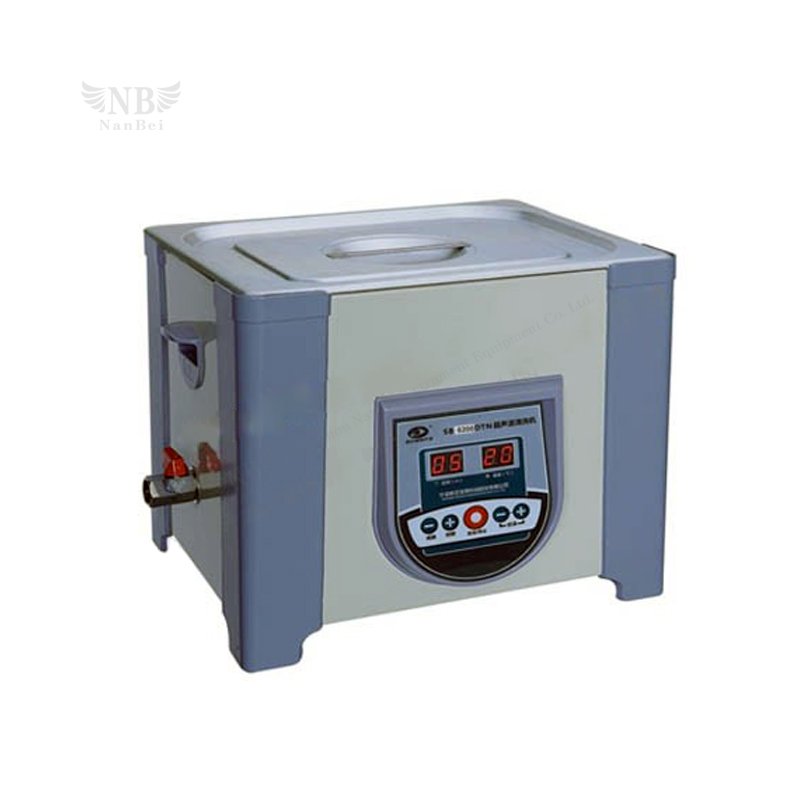

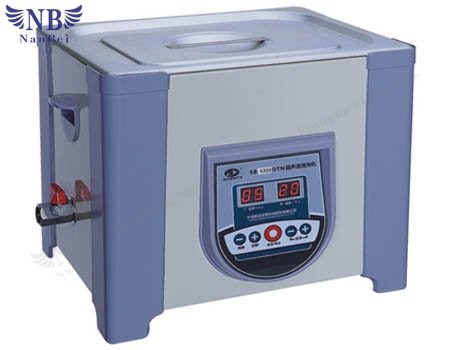

NB-5200DTN Ultrasonic Cleaning Machine:
Features:
● Digital display and setting ultrasonic cleaning time
● Display woking countdown time
● Display actual temperature of the cleaning tank
● Temperature setting range: Ambient temperature--80 ℃
● Timing range: 1-99 minutes adjustable
● Equipped with a special stainless steel basket, reduce sound cover
● The shell and cover are made by stainless steel
● The equipment controlled by Single-chip controller
● The lastest working parameters can be stored in memory after power-off
Parameters:
| Model | Inner tank | volume | Frequency | Power | Heating power |
Adjustable
temperature |
Adjustable
time | Drainage |
| L/W/H ( mm) | L | KHz | W | W | ℃ | min | ||
| NB-100DTN | 300×150×100 | 4.5 | 40 | 100 | 120 | Ambient-80 | 1-99 | / |
| NB-120DTP | 240×140×100 | 3 | 40 | 120 | 120 | Ambient-80 | 1-99 | |
| NB-120DTN | 240×140×100 | 3 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
| NB-120DTN | 240×140×150 | 5 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
| NB-3200DTN | 300×155×150 | 6 | 40 | 180 | 150 | Ambient-80 | 1-99 | / |
| NB-5200DTN | 300×240×150 | 10 | 40 | 200 | 320 | Ambient-80 | 1-99 | √ |
| NB-5200DTN | 300×240×150 | 10 | 40 | 250 | 320 | Ambient-80 | 1-99 | √ |
| NB-5200DTN | 300×240×150 | 10 | 40 | 300 | 320 | Ambient-80 | 1-99 | √ |
| NB-4200DTN | 300×240×200 | 14.4 | 40 | 400 | 320 | Ambient-80 | 1-99 | √ |
| NB25-12DTN | 500×300×150 | 22.5 | 40 | 500 | 450 | Ambient-80 | 1-99 | √ |
| NB25-12DTN | 500×300×150 | 22.5 | 40 | 600 | 450 | Ambient-80 | 1-99 | √ |
| NB-100DT | 300×150×100 | 4.5 | 40 | 100 | 150 | Ambient-80 | 1-99 | / |
| NB-120DT | 240×140×100 | 3 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
| NB-120DT | 240×140×150 | 5 | 40 | 120 | 120 | Ambient-80 | 1-99 | / |
| NB-3200DT | 300×155×150 | 6 | 40 | 180 | 180 | Ambient-80 | 1-99 | / |
| NB-5200DT | 300×240×150 | 10 | 40 | 200 | 320 | Ambient-80 | 1-99 | √ |
| NB-5200DT | 300×240×150 | 10 | 40 | 250 | 320 | Ambient-80 | 1-99 | √ |
| NB-5200DT | 300×240×150 | 10 | 40 | 300 | 320 | Ambient-80 | 1-99 | √ |
| NB-4200DT | 300×240×200 | 14.4 | 40 | 400 | 320 | Ambient-80 | 1-99 | √ |
| NB25-12DT | 500×300×150 | 22.5 | 40 | 500 | 600 | Ambient-80 | 1-99 | √ |
| NB25-12DT | 500×300×150 | 22.5 | 40 | 600 | 600 | Ambient-80 | 1-99 | √ |
| NB-1000DT | 600×300×300 | 54 | 28 | 1000 | 3000 | Ambient-80 | 1-99 | √ |
| NB-1200DT | 600×400×300 | 70 | 28 | 1200 | 4000 | Ambient-80 | 1-99 | √ |
| NB-1500DT | 600×500×300 | 90 | 28 | 1500 | 4000 | Ambient-80 | 1-99 | √ |
| NB-1800DT | 600×600×300 | 108 | 28 | 1800 | 5000 | Ambient-80 | 1-99 | √ |
| NB-2000DT | user-defined | 120 | 28 | 2000 | 6000 | Ambient-80 | 1-99 | √ |
| NB-3600DT | User-defined | 207 | 28 | 3600 | 8000 | Ambient-80 | 1-99 | / |
