DH100 Series High Temperature Dry Bath Incubator Controlled by Microcomputer

DH100 Series High Temperature Dry Bath Incubator Controlled by Microcomputer

Brand:NANBEI

Model:NH100 Series

Application:

CONTACT NOW Chat Now

product details

DH100 Series high temperature dry bath incubator controlled by microcomputer, use high purity aluminum material as a heat conduction medium instead of the conditional water bath device. which is easy to use, wide temperature range, high precision and etc. It can be widely used in the sample preservation, reaction of DNA amplification, electrophoresis, degeneration, solidification and other kinds of serum biochemical sample thermostatic incubation process.

Features:

1. Real-time temperature display, the countdown display.

2. Convenient block replacement, easy to clean and disinfect.

3. Automatic fault detection and alarm function

4. Built-in over temperature protection device

5. Temperature deviation calibration function

Product parameters

Product model	Parameters
Product model	DH100-1	DH100-2	DH100-4
Temperature range	RT.+5°C~160°C	RT.+5°C~160°C	RT.+5°C~130°C
Temp accuracy	±0.5℃(@40℃)
Temp accuracy	±1℃(@120℃)
Temp uniformity	±0.5℃
Display accuracy	0.1℃
Time range	1-99h59min/∞
Heating time	≤15min(from 25℃ to 160℃)	≤15min(from 25℃ to 160℃)	≤20min(from25℃ to 130℃)
Block quantity	1	2	4
Max power	300W	500W	600W
Voltage	AC220V or AC110V, 50/60Hz
Size	260 x 220 x 100mm	260 x 220 x 100mm	360 x 220 x 100mm
Weight	5.0kg	5.5Kg	8.0kg

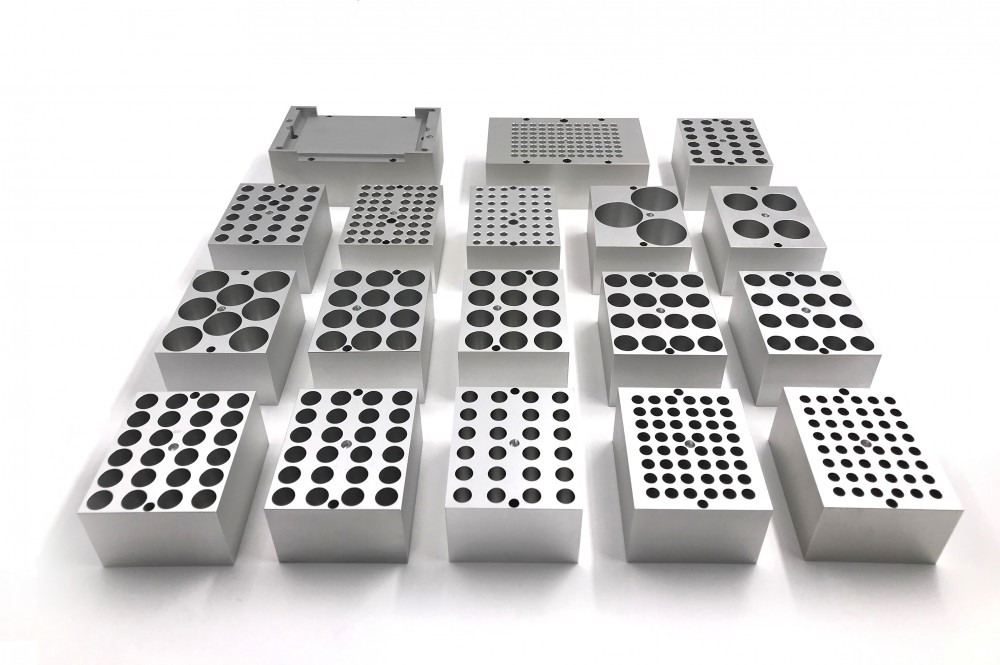

Product accessories

Model	Tube diameter	Tube quantity
MD01	6mm	48
MD02	7mm	48
MD03	10mm	24
MD04	12mm	24
MD05	13mm	24
MD06	15mm	16
MD07	16mm	16
MD08	19mm	12
MD09	20mm	12
MD10	26mm	8
MD11	28mm	4
MD12	40mm	3
MD13	0.2ml centrifuge tube	48
MD14	0.5ml centrifuge tube	48
MD15	1.5ml centrifuge tube	24
MD16	2.0ml centrifuge tube	24
MD17*	0.2ml PCR plate	96
MD18*	0.2ml Elisa plate	96
*MD17/MD18 block is only used for DH100-2,DH100-4
