Dry Bath Incubator
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:MiniBox
Application:

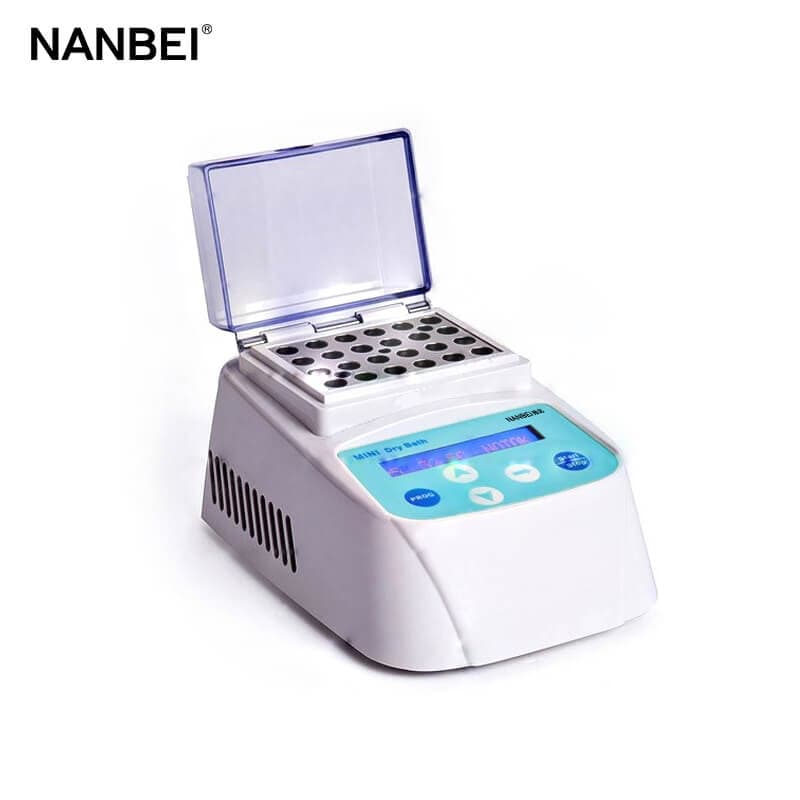

Minibox & MiniBox-C Mini Dry Bath Incubator is a microprocessor-controlled product. It is widely used in preservation and reactions of sample, DNA amplification and initial denaturation of electrophoresis and so forth. It fits almost anywhere and can even be used in cars, boats or wherever a 24 volt /12 volt power source is available.
Features:
1. Energy-efficient design.
2. Applicable to 24V / 12V power adapter.
3. Accurate to ± 0.3℃.
4. Process of experiment is visible.
5. Electronic calibration. User can reset to any local standard.
6. Power supply provided is UL, CSA and CE approved.
7. Custom blocks made to fit any sample holder.
Product parameters:
| Project | Parameters | |
|---|---|---|
| Temp. setting range | 0℃～100℃ | -10℃～100℃ |
Temp. control range |
RT+5℃～100℃ | RT.-15℃～100℃ |
Timing range |
1sec～999sec
1min ～999min
1hour～999hour | 1sec～5999sec/∞ 1min～5999min/∞ |
Temp. accuracy |
≤±0.3℃ | |
Display accuracy |
0.1℃ | |
Heating time |
≤20min(from 40℃ to 100℃) | ≤20min(from 25℃ to 100℃)* |
Cooling time 1 |
--- | ≤20min(from 100℃ to 25℃)* |
| Cooling time 2 | --- | ≤25min(from RT. to RT.-15℃)* |
| AUTO-4℃ | --- | Yes* |
| Multi points running | --- | Yes(Max. 5points) |
| Multi cycle | --- | Yes(Max. 99times) |
| Auto heating | --- | Yes |
| Auto running | Yes | |
| Auto resume to run | Yes | |
| Voltage | DC24V/1.67A | DC12V/5A |
| Power | 40W | 60W |
Dimensions(L×W×H) |
145×113×110mm | 145×113×140 |
Weight(kg) |
0.5 | 1.0 |
Product accessories
| Type | Description |
| MiniBox A | 15×2.0ml |
| MiniBox B | 15×1.5ml |
| MiniBox C | 24×0.5ml |
| MiniBox D | 32×0.2ml(for 0.2ml PCR 8-tube strip) |
| MiniBox F | 32×0.2ml(for 0.2ml Elisa 8-well strip) |
