Brand:NANBEI
Model:DKT200-1
Application:Application of industry include the pharmaceutical ,chemical,food safety,environment,quality inspection.
Product features
1. LCD display. Cool and compact designed appearance.
2. Fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
3. Built in temperature calibration function, automatic fault detection and buzzer alarm function.
4. Built in over-temperature protection device, safe and reliable, enhance the service life of the machine.
5. Product designed compact and tight, occupied little space, free and easy.
6. Various blocks for convenient replacement, easy for cleaning and disinfection.
Product technical parameters
Model Specifications | DKT200-1 | DKT200-2 | DKT200-4 |
R.T.+ - | R.T.+ - | ||
Heating Time | ≤ 30min ( to ) | ≤ 30min ( to) | |
Temperature Control Accuracy@100~ | ≤ ± | ||
Temperature Control Accuracy @40~ | ≤ ± | ||
Block Temp Discrepancy@ | |||
Block Temperature Uniformity | ≤ ± | ||
Display Accuracy | |||
99h59min | |||
Maximum Temperature | |||
Maximum Power | 200W | 400W | 600W |
Dimension (mm) | 230x220x95 | 260x220x95 | 360x220x95 |
Block Selection | Refer to “Exchangeable blocks for DKT series” |

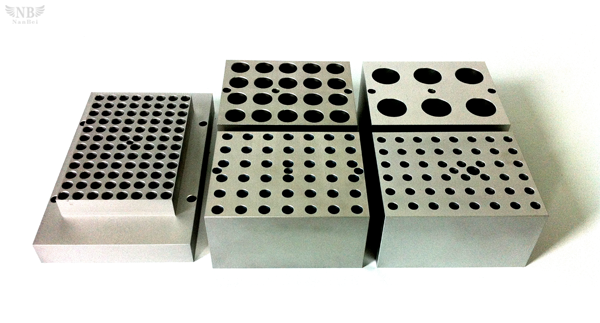

Exchangeable blocks for DKT series
Type | Parameter | Capacity | Dimension (mm) |
DT01 | 42 | 95.5X76.5X50 | |
DT02 | 42 | 95.5X76.5X50 | |
DT03 | 20 | 95.5X76.5X50 | |
DT04 | 20 | 95.5X76.5X50 | |
DT05 | 20 | 95.5X76.5X50 | |
DT06 | 12 | 95.5X76.5X50 | |
DT07 | 12 | 95.5X76.5X50 | |
DT08 | 12 | 95.5X76.5X50 | |
DT09 | 6 | 95.5X76.5X50 | |
DT10 | 6 | 95.5X76.5X50 | |
DT11 | 4 | 95.5X76.5X50 | |
DT12 | 2 | 95.5X76.5X50 | |
DT13 | 0.5mL | 42 | 95.5X76.5X50 |
DT14 | 1.5mL | 24 | 95.5X76.5X50 |
DT15 | 2.0mL | 24 | 95.5X76.5X50 |
DT16 | 0.2mL | 48 | 95.5X76.5X50 |
DT17 | 0.2mL | 96 | 78X114X26 |
DT18 | Plate(no holes) | 96 micro-plate | 81X123X19 |
DT19 | Customized | Customized | Customized |
