DYCP-32A Electrophoresis Cell/Agarose Gel Horizontal Electrophoresis Cell

DYCP-32A Electrophoresis cell/Agarose gel horizontal electrophoresis cell

Model: DYCP – 32A

Features

■  It is transparent, convenient for observation;
■  Easy and simple to use;

■  Special gel casting device for easy and fast gel casting operation;
■  Power fails when you open the lid  for users’ safe;

■  Bridge type that can save the buffer solution;

■  High resolution separation with simple operation;

■  Two lines of gel can be run at the same time;

■  One gel casting device can cast two different sizes of gel;

■  Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.
Specifications:
■ Gel dimension: 160 × 100 (mm), 80 x 100 (mm);

■  Runs up to 12, 16  or 22 samples;

■  Comb thickness: 1.0 and 2.0 (mm) ;

■  Buffer volume: about 650 (ml);

■  Size (L X W X H):300×162×110 (mm);

■  Weight: about 2.0 kg.

Applications:
Submarine electrophoresis, for identifying,separating and preparing DNA, and for measuring the molecular weight.

Recommended Electrophoresis Power Supply
DYY – , DYY-7C ,DYY –

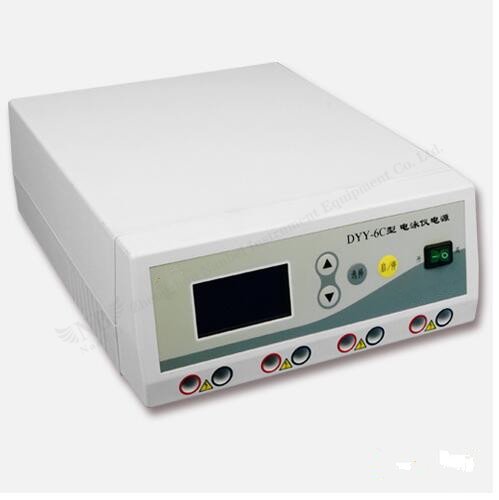

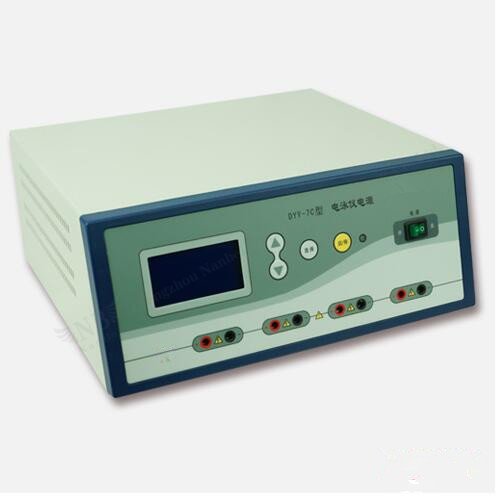

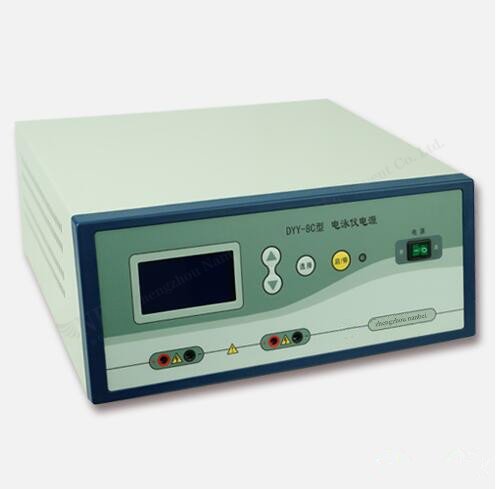

DYY-6C	DYY-7C	DYY-8C
Please click to details	Please click to details	Please click to details
