MIT Series Metallurgical Microscope

Brand:NANBEI

Model:MIT Series

Application:

CONTACT NOW Chat Now

product details

MIT Series Metallurgical Microscope

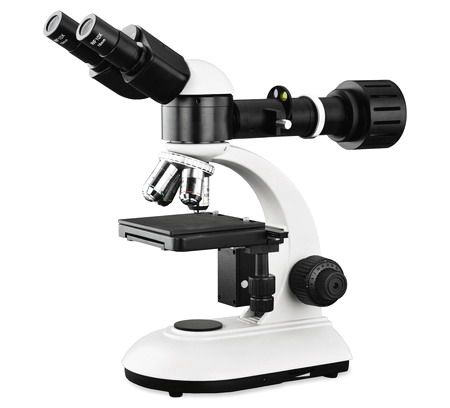

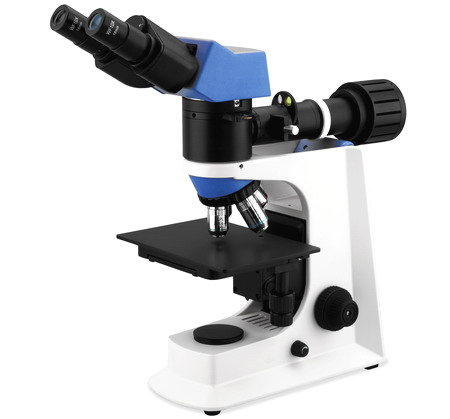

图片1.png 图片2.png

MIT Series Metallurgical Microscope Outfits

Items	Specifications		MIT300	MIT500
Eyepieces	WF10X -18mm		●●	●●
	WF10X -18 mm (Reticule 0.1mm)		●	●
	WF5X		○○	○○
	WF12.5X		○○	○○
Infinity Plan Objective (no cover glass)	5X/0.11	W.D=12.10mm	●	●
	10X/0.25	W.D= 4.75mm	●	●
	20X/0.4(S)	W.D= 2.14mm	○	○
	40X/0.65 (S)	W.D= 0.45mm	○	○
	100X/1.25(Oil)(S)	W.D= 0.12mm	○	●
Long Working Distance Infinity Plan Objective (no cover glass)	20X/0.4 (S)	W.D= 8.35mm	●	●
	40X/0.65 (S)	W.D= 3.90mm	●	●
	50X/0.7 (S)	W.D= 1.95mm	○	○
	80X/0.80 (S)	W.D= 0.85mm	○	○
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm		●	●
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm Light Distribution: 0:100		○	○
Nosepiece	Quintuple		●	●
Mechanical Stage For Reflection Illumination	Stage Size: 200X140mm,Travel: 78mmX55mm Stage Fast Lowering Unit: Stage Up-Down moving range can be 50mm (Max.)		●
Mechanical Stage For Transmission Illumination	Stage Size: 190X140mm,Travel: 78mmX55mm Coaxial Coarse and Fine Focusing Knobs			●
Stage Plate	Place The Sample on The Plate		●	●
Clip				●
Glass Plate				○
Stage Micrometer	0.01mm		○	○
Polarizing Unit	Polarizing /Analyzer Slide		●	●
Condenser	Abbe N.A. 1.25(Iris Diaphragm)			●
Illumination	12V/50W Halogen Lamp (Reflection Illumination)		●	●
	6V/20W Halogen Lamp (Transmission Illumination)		○	●
	6V/30W Halogen Lamp(Transmission Illumination)		○	○
Field Diaphragm				●
Filter	Blue		○	●
	Green		○	○
	Yellow		○	○
C-mount	1X		○	○
C-mount	0.57X （Focus Adjustable）		○	○
