Metallographic Microscope
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

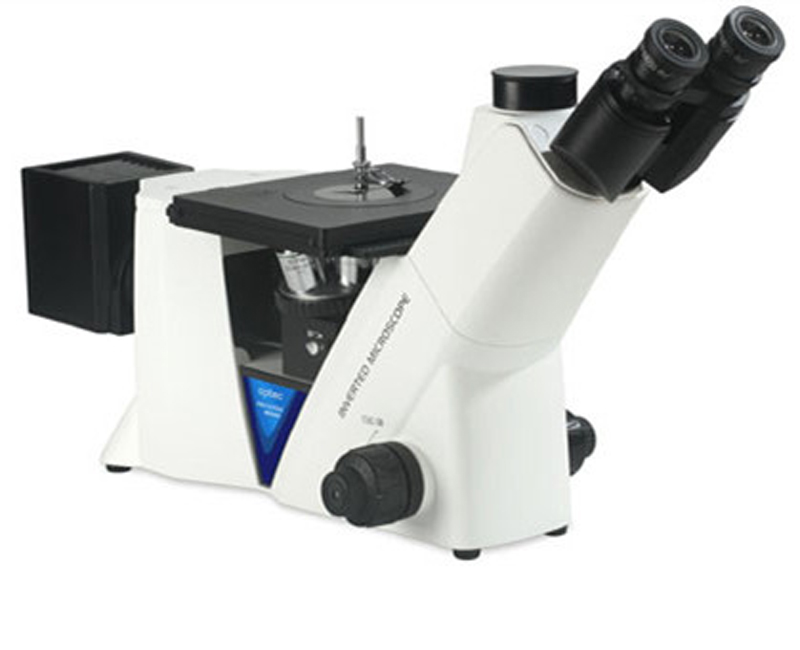

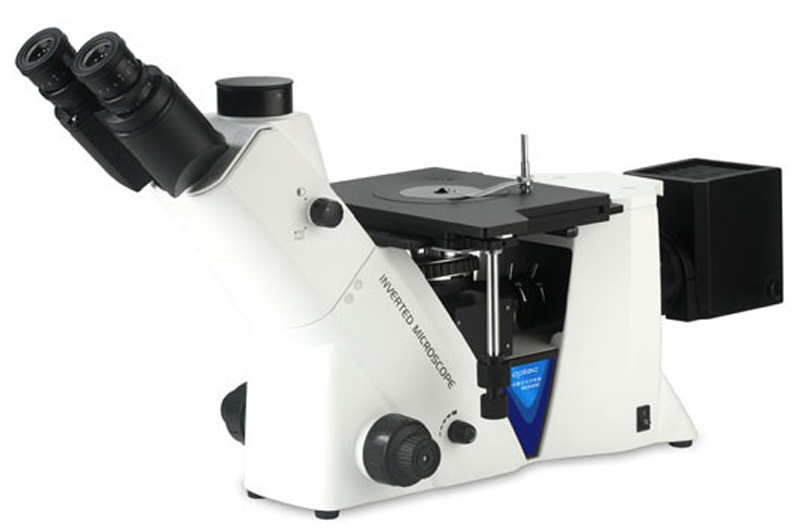

MDS Metallurgical Microscope Outfits
 |  |
Items |
Specifications |
MDS | |
Eyepieces |
WF10×/Φ18 |
●● | |
WF12.5×/Φ14 |
●● | ||
WF16×/Φ13 |
○○ | ||
Huygenian Eyepieces 5×/Φ20 |
○○ | ||
WF10×/Φ18 (Reticule,0.1mm) |
● | ||
Plan Achromatic Objectives |
Plan 4×/0.10 |
○ | |
Plan 10×/0.25 |
● | ||
Plan 20×/0.35 (S) |
● | ||
Plan 40×/0.65 (S) |
● | ||
Plan 100×/1.25 (S) (Oil) |
● | ||
Long Working Distance
Plan Objectives |
PL L 40×/0.60 |
W.D=3.64mm |
○ |
PL L 50×/0.70 |
W.D=3.01mm |
○ | |
PL L 80×/0.80(S) |
W.D=1.08mm |
○ | |

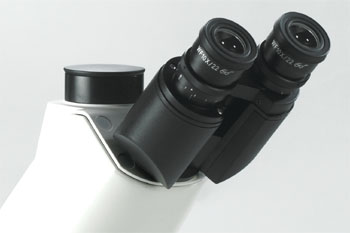

Trinocular Head |
Inclined 45º, Light Distribution 20:80 |
● | |

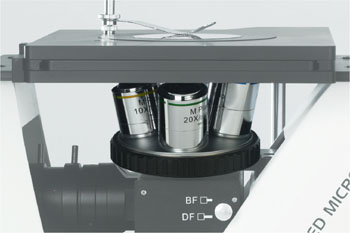

Nosepiece |
Quadplex |
● | |

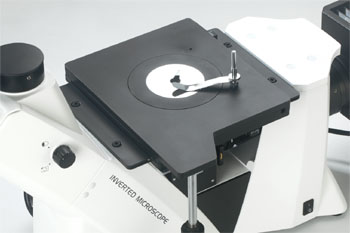

Mechanical Stage |
Size: 180×165mm, Travel Range: 50×40mm |
● | |
Stage Plate |
1 (Φ10) |
● | |
2 (Φ20) |
● | ||
3 (Φ40) |
○ | ||
Set of Stage Plate |
● | ||
Main Body |
● | ||
Polarizing Slide |
● | ||
Analyzing Slide |
● | ||
Illuminator |
6V/30W Halogen Lamp, Input voltage：100V～240V |
● | |
Filters |
Blue, Green, Grey, White |
● | |
1X C-mount |
Available for digital photo camera |
○ | |
0.6X C-mount |
Available for digital camera |
○ | |
Micrometer |
Division 0.01mm |
○ | |
Gross Weight: 15 kgs Net Weight: 11 kgs
 |  |  |
