Biological Safety Cabinet
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:BSC-1100II A2-X
Application:
Introduction
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Advantage:
1 Remote control. The operator need not to contact the biological safety cabinet directly, its favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2 Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3 Work area surrounded by negative pressure.
4 Timer function
5 VFD display
6 Filter life inquiry
7 Motored fron window
According to the performance criteria:
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005

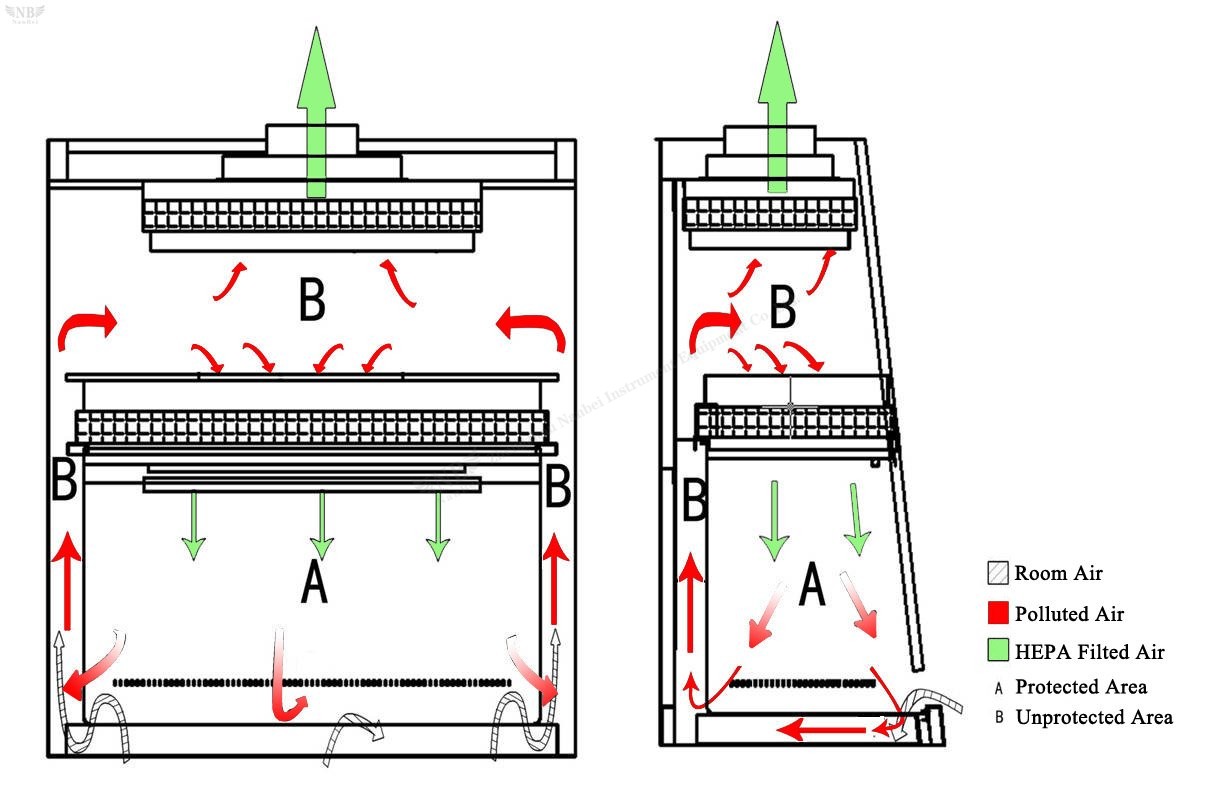

Air Flow Pattern and Protected Area：
Parameter of BSC-1100II A2-X:
Internal Size(mm) | 900× 600× 660 |
External Szie(mm) | 1100× 850× 2200 |
Tested Opening | Safety Height ≤ 200 mm |
Max Opening | 400 mm |
Inflow Velocity | 0.53 m/s |
Downflow Velocity | 0.33 m/s |
Filter | Two HEPA filter 99.999% efficient(0.3 microns) |
Front Window | Two-layer toughened glass > 5mm |
Noise | ≤ 65 dB |
UV Lamp | 20W× 1 |
Fluorescent Lamp | 21W× 1 |
Lighting(Lux) | 800 |
Power(W) | 1200 |
Water and Gas Tap | Water tap: 1 Gas tap: 1 |
Waterproof Socket | 2 |
Display | VFD display |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Material | Work zone interior is made of 304 stainless steel |
| Body: Expoxy coated cold rolled steel |
Base Stand | Height: 635mm |
caster Wheel | Directional wheel |
Electrical | 110~240V/50~60Hz (optional) |
Net Weight(kg) | 240 |
Gross Weight(kg) | 290 |
Package(mm) | 1250× 1050× 1870 |
Standard Configuration | Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, Base Stand |
Optional Accessory | Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer |
