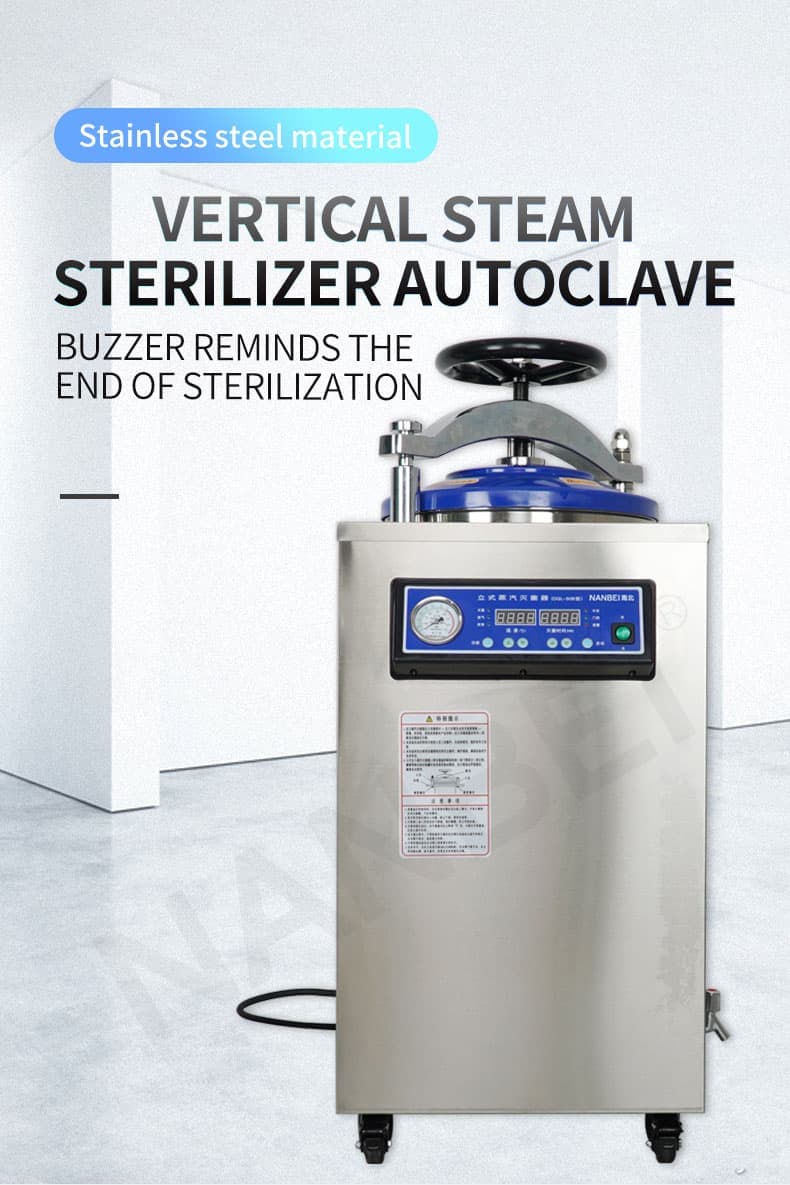

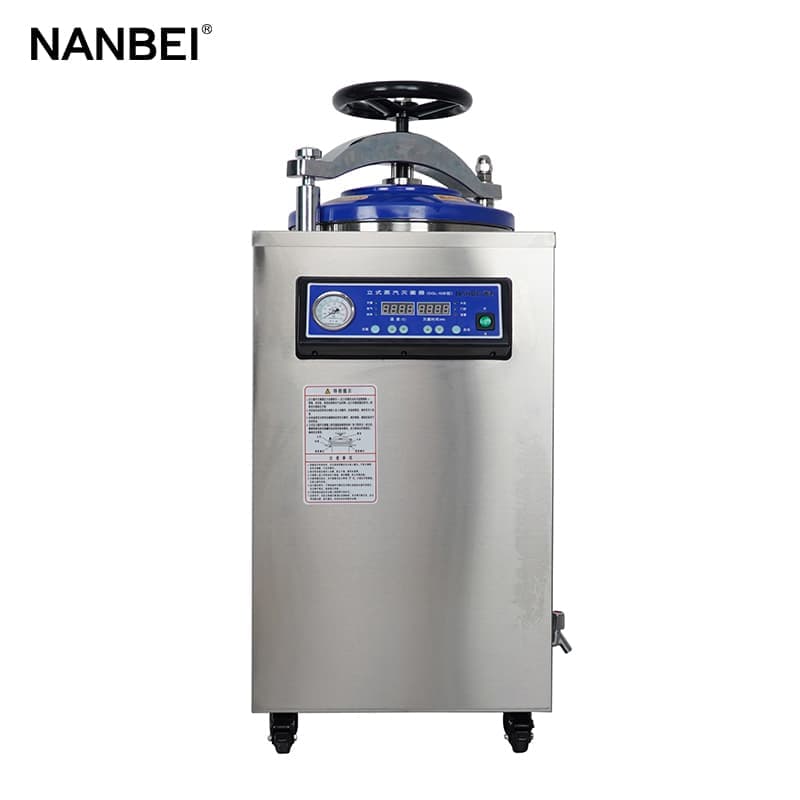

Vertical Pressure Steam Sterilizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LS-50HD

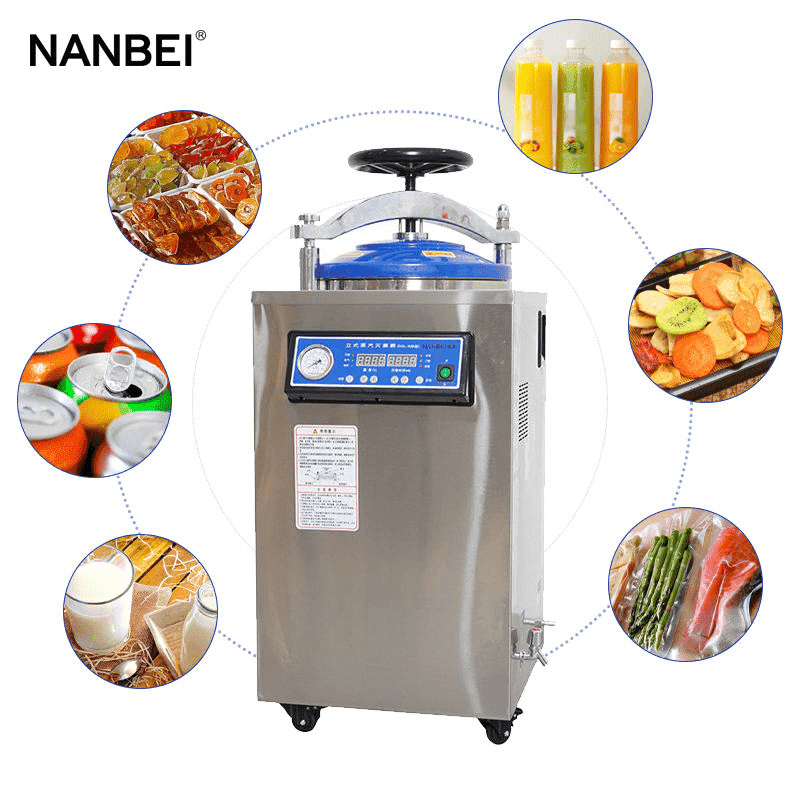

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Digital display automatic vertical pressure steam sterilizer
Characteristics:
l .Fully stainless steel structure

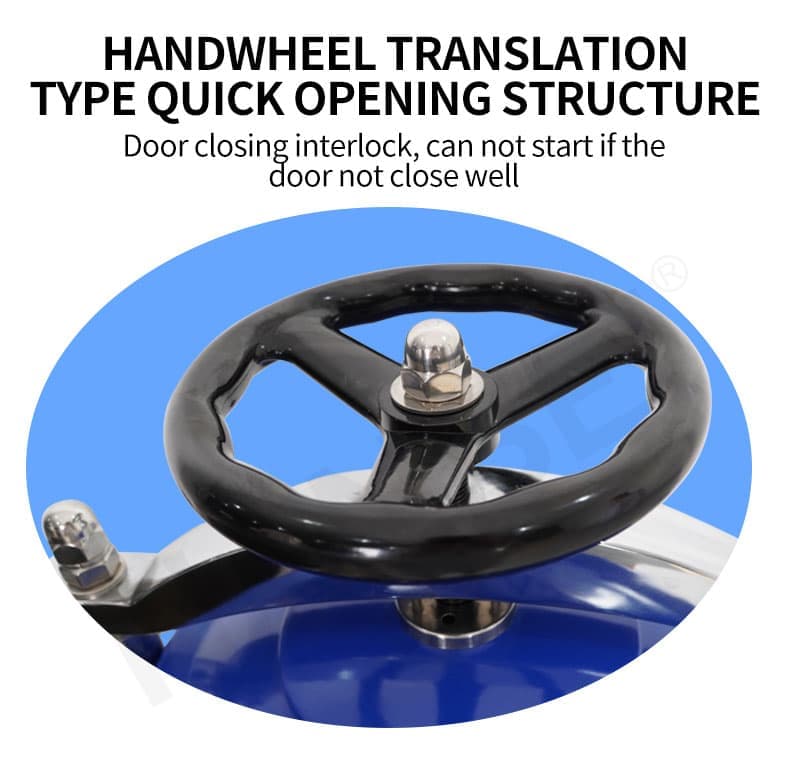

2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.24 months warranty
13.Possible to install drying system according request
Technical Data:
Model Technical data | LS-35HD (Automatic) | LS-50HD (Automatic) | LS-75HD (Automatic) | LS-100HD (Automatic) |
Chamber volume | 35L (φ318×450)mm | 50L (φ340×550) mm | 75L (φ400×600) mm | 100L (φ440×650) mm |
working pressure | 0.22MPa | 0.14 MPa | ||
Working temperature | 134℃ | 126℃ | ||
Max working pressure | 0.23 Mpa | 0.165 Mpa | ||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59min | |||
Adjustment of temperature | 105～134℃ | 105~126℃ | ||
Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120(mm) | 540×560×1250(mm) |
Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
G.W/N.W | 72Kg/56Kg | 88Kg/ 68Kg | 100Kg/ 80Kg | 110Kg/ 85Kg |
