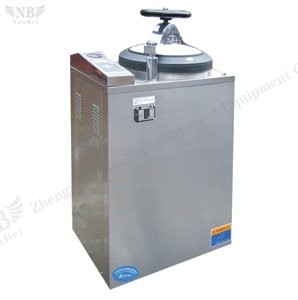

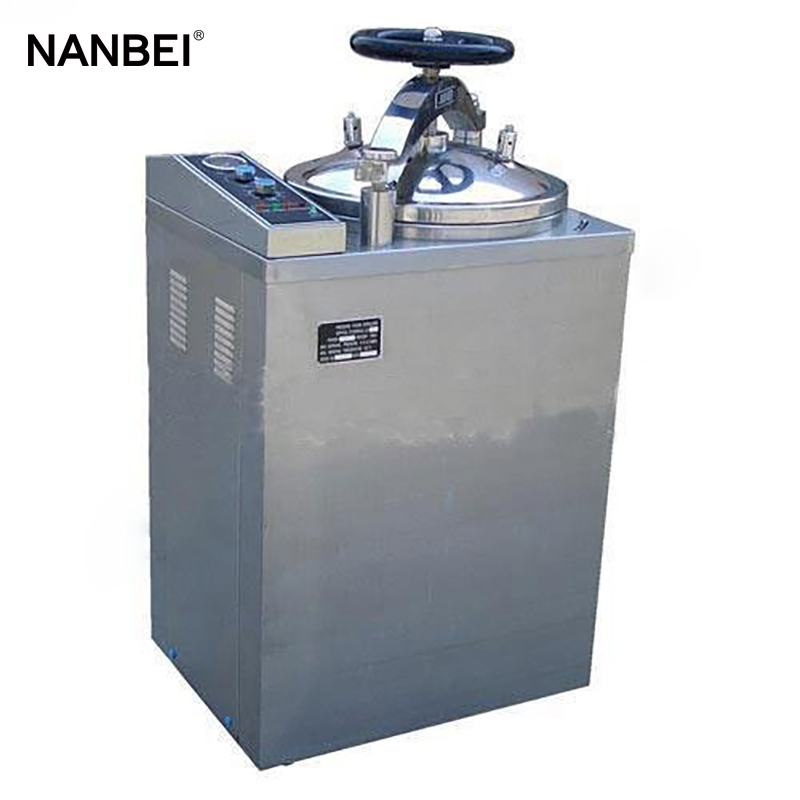

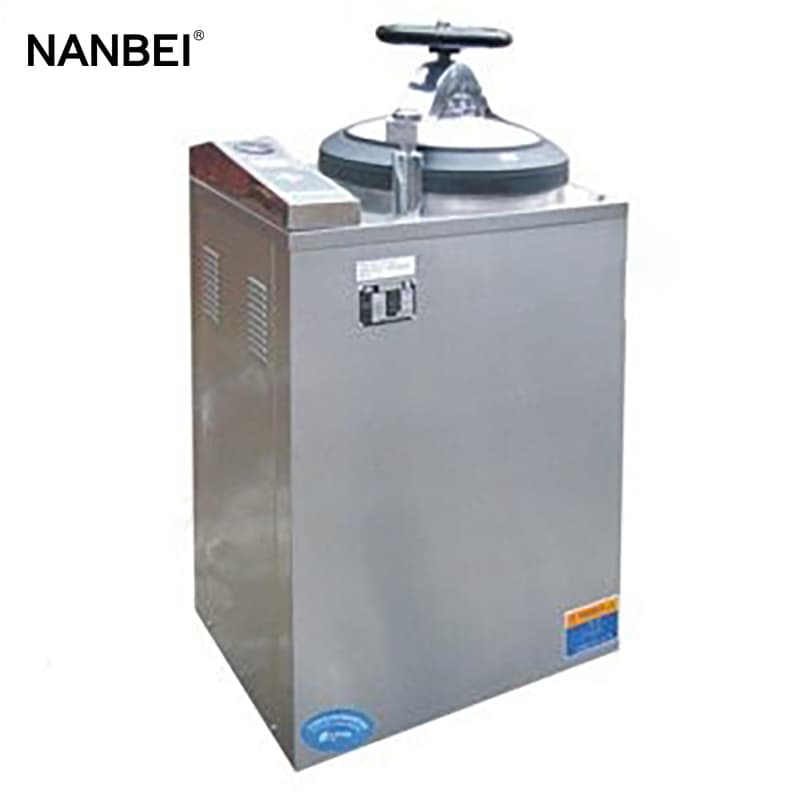

Vertical Pressure Steam Sterilizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LS-50HV
Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Automatic Microcomputer Vertical Steam Sterilizer
Characteristics：
1. The chamber of the sterilizer is made of stainless steel
2. Indicator light indicates working state
3. Over temperature & over pressure auto-protection
4. Safe protection of water lacking
5. Double scale indication pressure gauge
6. Automatically shut off with beep reminding after sterilization
7. Easy to operate，safe and reliable
8. With two stainless steel sterilizing baskets
TECHNICAL DATA:
Technical data | LS-50HV | LS-75HV |
Sterilizing chamber volume | 50L (φ340×550)mm | 75L (φ400×600)mm |
working pressure | 0.22MPa | |
working temperature | 134℃ | |
Max.working pressure | 0.23 Mpa | |
Heat average | ≤±1℃ | |
Time of sterilization | 1～99min | |
Adjustment of temperature | 0～134℃ | |
Power | 3000W/AC220V.50Hz | 4500W/AC220V.50Hz |
Dimension | 690×470×1140(mm) | 730×510×1270(mm) |
Transport dimension | 760×550×1290(mm) | 820×600×1380(mm) |
G.W/N.W | 120Kg/ 100Kg | 140Kg/118Kg |
