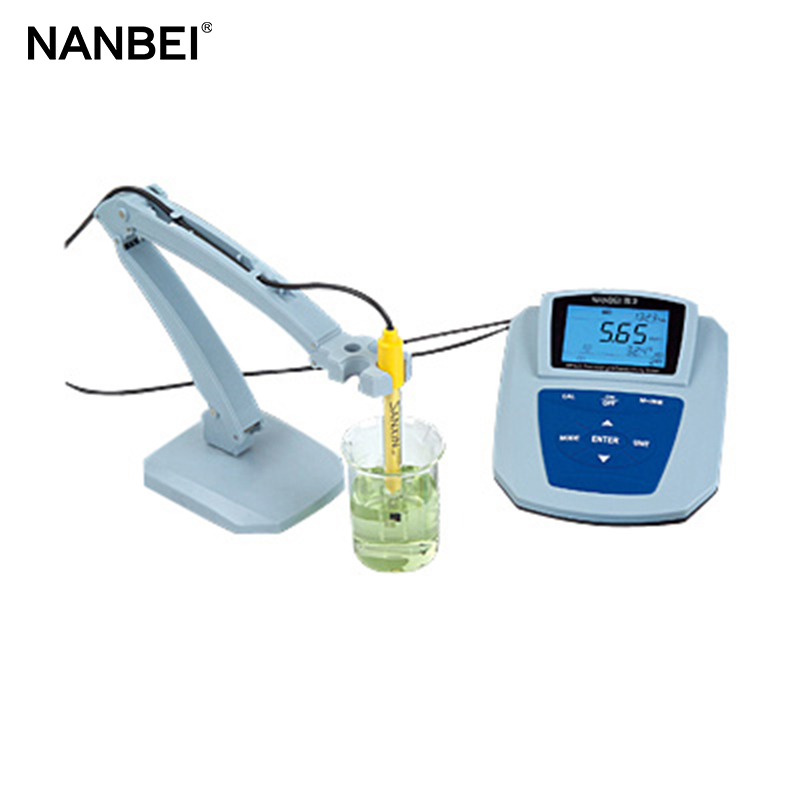

MP522 Precision pH/Conductivity Meter

Brand:NANBEI

Model:MP522

Application:

CONTACT NOW Chat Now

product details

MP522 Precision pH/Conductivity Meter

Introduction

● There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.

● Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series.

● High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry.

● With EH redox potential measuring mode can directly display ORP value which against standard potential of hydrogen electrode.

● Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series.

●Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.

●Automatically select conductivity measurement range, when measuring high pure water, equipment automatically enter into temperature compensation of nonlinear model, especially for electricity, microelectronics and the pharmaceutical industry requirements.

● Meter has the only product serial number.

● Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

●Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.

Specifications

pH	Measuring range Resolution Accuracy Input current Input impendance Stability Temp. compensation range	（-1.999 ~ 19.999）pH 0.1/0.01/0.001 pH Meter:±0.002 pH, connect meter with electrode:±0.01pH ≤1×10-12 A ≥3×1012 Ω ±0.002 pH/3h (0 to 100) ℃（automatic or manual）
mV	Measuring range(mV/ORP/EH) Resolution Accuracy	-1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.03% FS
Conductivity	Measuring range Resolution Accuracy Temp. compensation range Electrode constant Reference temperature	Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm （200~2000）μS/cm （2.00~20.00）mS/cm （20.0~200.0）mS/cm （200~2000）mS/cm（K=10） Resistivity：（0 ~ 100）MΩ·cm TDS: （0 ~ 100）g/L Salinity：（0 ~ 100）ppt 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm Meter:±0.5% FS,connect meter with electrode:±0.80% FS （0 ~ 50）℃（automatic ） 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1 25℃、20℃ and 18℃
Temperature	Measuring range Resolution Accuracy	-10℃~ 110℃ 0.1℃ 5~ 60℃range：±0.4℃ other range：±0.8℃
Other Technical Parameters:	Data storage Storage content Power Communication connector Size and weight Quality and safety certification	300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC
Working Condition	Environment temperature Environmental humidity IP rating	5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade） ≤75% IP54 Dustproof and waterproof

Standard Kit Includes

1. Model MP522 Precision pH/Conductivity meter	1set
2. Model 602 flexible electrode holder	1pc
3. 201T-M plastic pH/ATC three-in-one combination electrode	1pc
4.2503-C glass pH combination electrode	1pc
5. MP500 temperature electrode	1pc
6. 2401-M conductivity electrode	1pc
7. pH standard buffer solution（pH4.00, pH7.00 and pH10.01/50mL）	1btl/each
8. 1413μS/cm conductivity standard solution（50mL）	2btls
9. 9V power adapter（meter use）e	1pc
10. RS-232 communication cable	1pc
11. MP522 communication software disk	1pc
12. Operation manual	1unit
13. Brief operation instruction	1unit
14. Packing List	1pc
