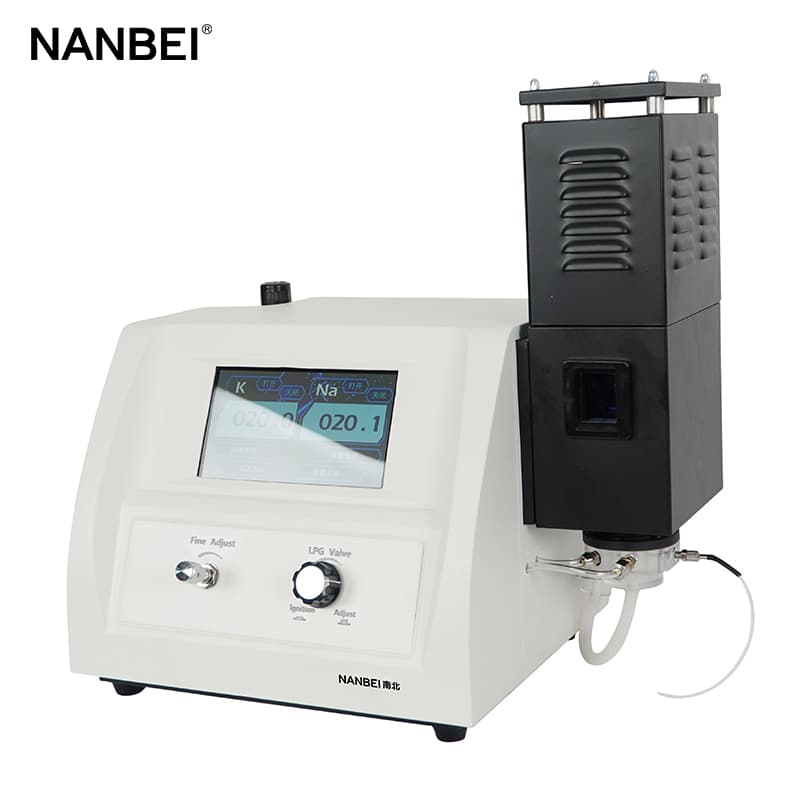

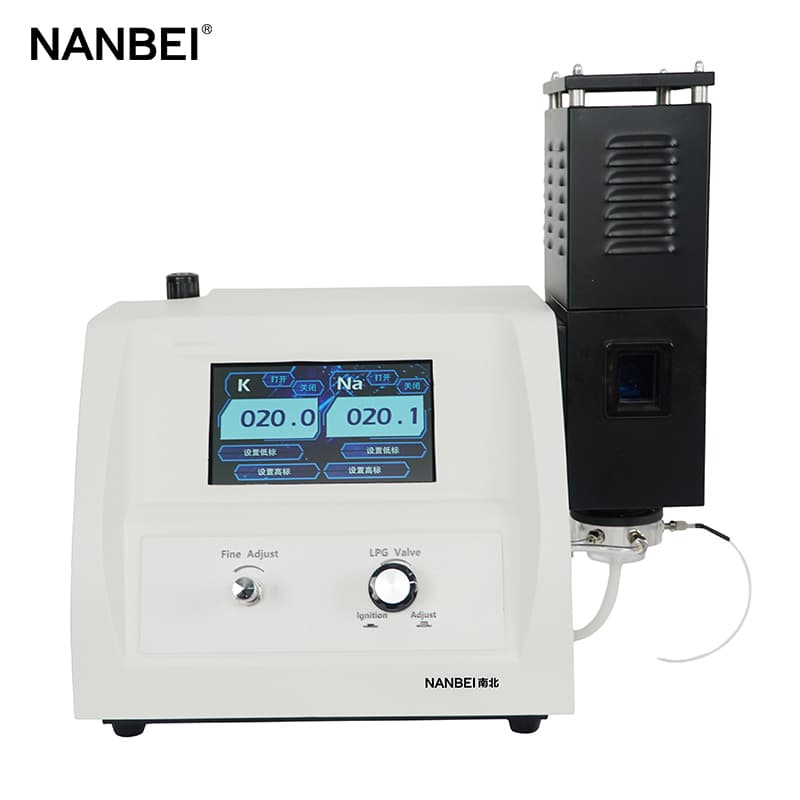

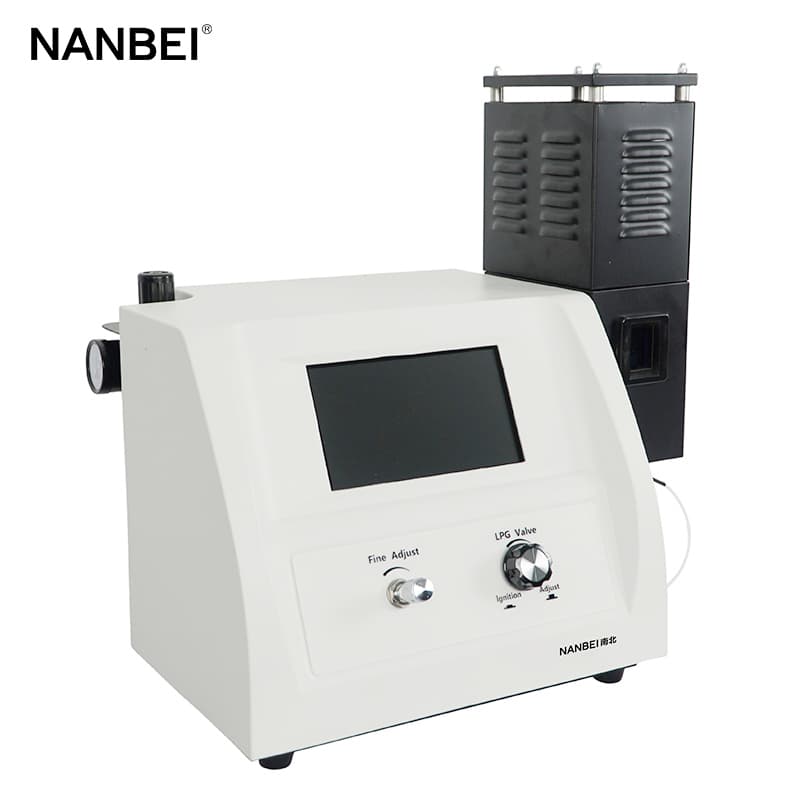

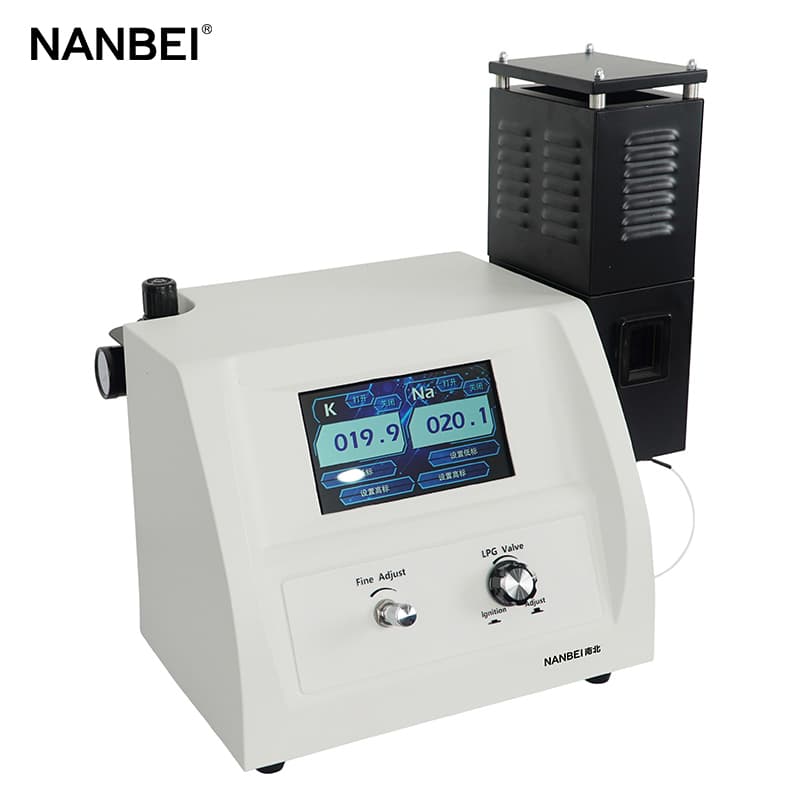

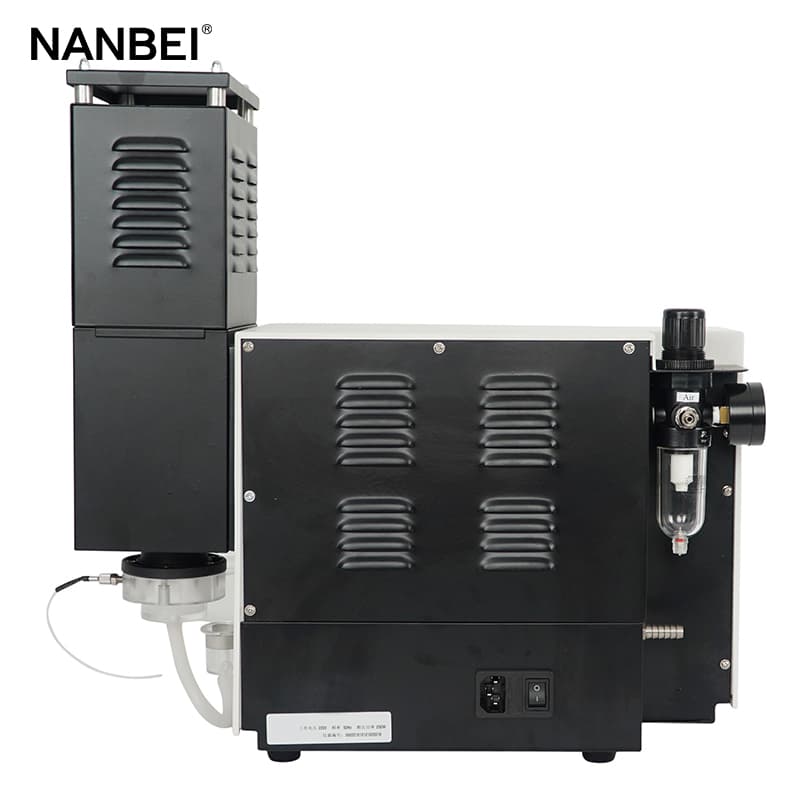

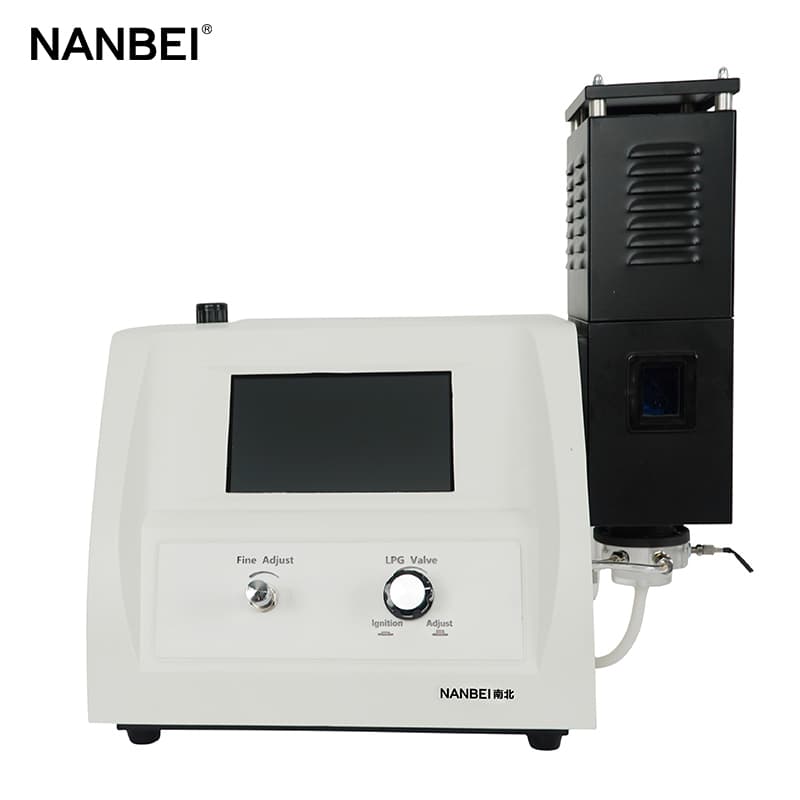

FP6410 Flame Photometer

FP6410 Flame Photometer

Application Areas

A lot of new technology and new materials are adopted. Such features as LCD display, menu-type instruction operation, curve storage, flameout protector and outside printout are enabled by the application of top grade embedded mono-chip computer circuit.

Specifications

◆RangeK：0~999.9；Na:0~999.9；Li:0~999.9

◆Sensitivity：K:0.2μg/mL；Na:0.2μg/mL

◆Linearity：K:0.2μg/mL；Na:0.7μg/mL

◆Drift：less than 3% within 15s

◆Reproducibility：3%

◆Aspiration rate：<6mL/min

◆Fuel supply：L.P.G.

Working conditions

◆Environmental Temperature: 10 oC~35oC

◆Relative humidity:≤85%

◆The instrument should be placed horizontally, avoiding direct sunshine radiation. There is no disturbance of strong electromagnetic field or vibration.

◆Fire extinguishing device should be equipped in the application field and good aeration should be guaranteed. Power supply: AC220V±22V, frequency 50Hz±1Hz,with good grounding.

Standard configuration:

◆Main Instrument  1

◆Power Cable  1

◆Chimney  1

◆Clearing rod  2

◆Air compressor  1

◆Printer SP-T 2425SK  1

Optional accessories:

◆Printer SP-T 2425SK

◆Air compressor

◆Lithium filter

Overall dimension & weight:

◆Shipping package dimension: 810-610-430mm

◆Gross weight:   23Kg

◆Net weight:   18Kg
